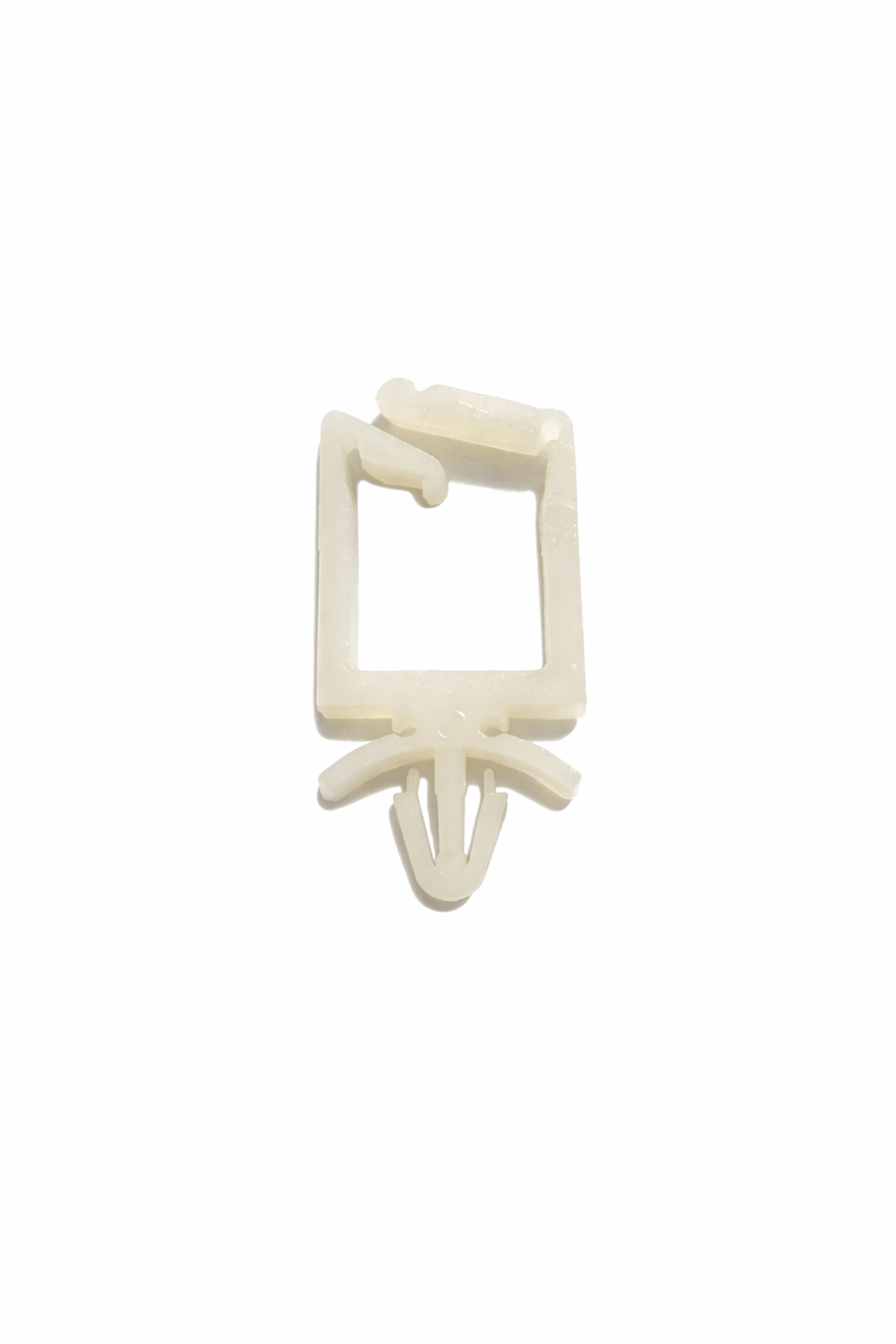

• 00 Series: Locking Wire Saddle

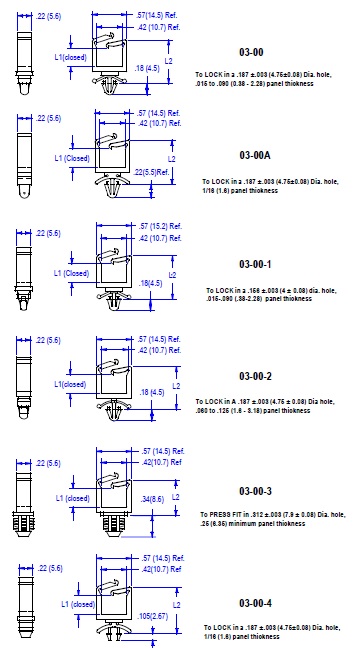

  • 03-00 Sketch



  • Various MTG Hole Styles & Sizes Available
  • Unique locking design; secures firmly to chassis yet is releasable
  • Packaging: 500/bag
  • Material: Nylon 66 (UL94V-2) (V-0 available -  add X)
  • Color: Natural (Black Available -add -BK)
  • RoHS Compliant
1 - 24 of 24 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification

Item #

L1 (REF)

L2 +/-.015(.38)

(HD) Hole Diameter

Chassis Thickness

Request Quote/Sample
N/A .189 (4.8) inches (mm) N/A .720 (18.3) inches (mm) N/A .187 (4.8) inches (mm) N/A .015 - .090 (.38-2.28) inches (mm) Request Quote/Sample
N/A .365 (9.3) inches (mm) N/A .874 (22.2) inches (mm) N/A .187 (4.8) inches (mm) N/A .015 - .090 (.38-2.28) inches (mm) Request Quote/Sample
N/A .734 (18.6) inches (mm) N/A 1.20 (30.48) inches (mm) N/A .187 (4.8) inches (mm) N/A .015 - .090 (.38-2.28) inches (mm) Request Quote/Sample
N/A 1.04 (26.6) inches (mm) N/A 1.47 (37.3) inches (mm) N/A .187 (4.8) inches (mm) N/A .015 - .090 (.38-2.28) inches (mm) Request Quote/Sample
N/A .189 (4.8) inches (mm) N/A .720 (18.3) inches (mm) N/A .187 (4.8) inches (mm) N/A .02-.06(.5-1.6) inches (mm) Request Quote/Sample
N/A .365 (9.3) inches (mm) N/A .874 (22.2) inches (mm) N/A .187 (4.8) inches (mm) N/A .02-.06(.5-1.6) inches (mm) Request Quote/Sample
N/A .734 (18.6) inches (mm) N/A 1.20 (30.48) inches (mm) N/A .187 (4.8) inches (mm) N/A .02-.06(.5-1.6) inches (mm) Request Quote/Sample
N/A 1.04 (26.6) inches (mm) N/A 1.47 (37.3) inches (mm) N/A .187 (4.8) inches (mm) N/A .02-.06(.5-1.6) inches (mm) Request Quote/Sample
N/A .189 (4.8) inches (mm) N/A .720 (18.3) inches (mm) N/A .156 (4) inches (mm) N/A .015 - .090 (.38-2.28) inches (mm) Request Quote/Sample
N/A .365 (9.3) inches (mm) N/A .874 (22.2) inches (mm) N/A .156 (4) inches (mm) N/A .015 - .090 (.38-2.28) inches (mm) Request Quote/Sample
N/A .734 (18.6) inches (mm) N/A 1.20 (30.48) inches (mm) N/A .156 (4) inches (mm) N/A .015 - .090 (.38-2.28) inches (mm) Request Quote/Sample
N/A 1.04 (26.6) inches (mm) N/A 1.47 (37.3) inches (mm) N/A .156 (4) inches (mm) N/A .015 - .090 (.38-2.28) inches (mm) Request Quote/Sample
N/A .189 (4.8) inches (mm) N/A .712 (18.1) inches (mm) N/A .187 (4.8) inches (mm) N/A .06 - .125 (1.6-3.18) inches (mm) Request Quote/Sample
N/A .365 (9.3) inches (mm) N/A .873 (22.2) inches (mm) N/A .187 (4.8) inches (mm) N/A .06 - .125 (1.6-3.18) inches (mm) Request Quote/Sample
N/A .734 (18.6) inches (mm) N/A 1.22 (30.9) inches (mm) N/A .187 (4.8) inches (mm) N/A .06 - .125 (1.6-3.18) inches (mm) Request Quote/Sample
N/A 1.04 (26.6) inches (mm) N/A 1.53 (38.9) inches (mm) N/A .187 (4.8) inches (mm) N/A .06 - .125 (1.6-3.18) inches (mm) Request Quote/Sample
N/A .189 (4.8) inches (mm) N/A 5.62 (14.3) inches (mm) N/A .312 (7.9) inches (mm) N/A .250(6.4) Minimum inches (mm) Request Quote/Sample
N/A .365 (9.3) inches (mm) N/A .720 (18.3) inches (mm) N/A .312 (7.9) inches (mm) N/A .250(6.4) Minimum inches (mm) Request Quote/Sample
N/A .734 (18.6) inches (mm) N/A 1.06 (26.92) inches (mm) N/A .312 (7.9) inches (mm) N/A .250(6.4) Minimum inches (mm) Request Quote/Sample
N/A 1.04 (26.6) inches (mm) N/A 1.35 (34.3) inches (mm) N/A .312 (7.9) inches (mm) N/A .250(6.4) Minimum inches (mm) Request Quote/Sample
N/A .189 (4.8) inches (mm) N/A .720 (18.3) inches (mm) N/A .187 (4.8) inches (mm) N/A .06 (1.6) inches (mm) Request Quote/Sample
N/A .365 (9.3) inches (mm) N/A .874 (22.2) inches (mm) N/A .187 (4.8) inches (mm) N/A .06 (1.6) inches (mm) Request Quote/Sample
N/A .734 (18.6) inches (mm) N/A 1.20 (30.48) inches (mm) N/A .187 (4.8) inches (mm) N/A .06 (1.6) inches (mm) Request Quote/Sample
N/A 1.04 (26.6) inches (mm) N/A 1.47 (37.3) inches (mm) N/A .187 (4.8) inches (mm) N/A .06 (1.6) inches (mm) Request Quote/Sample
