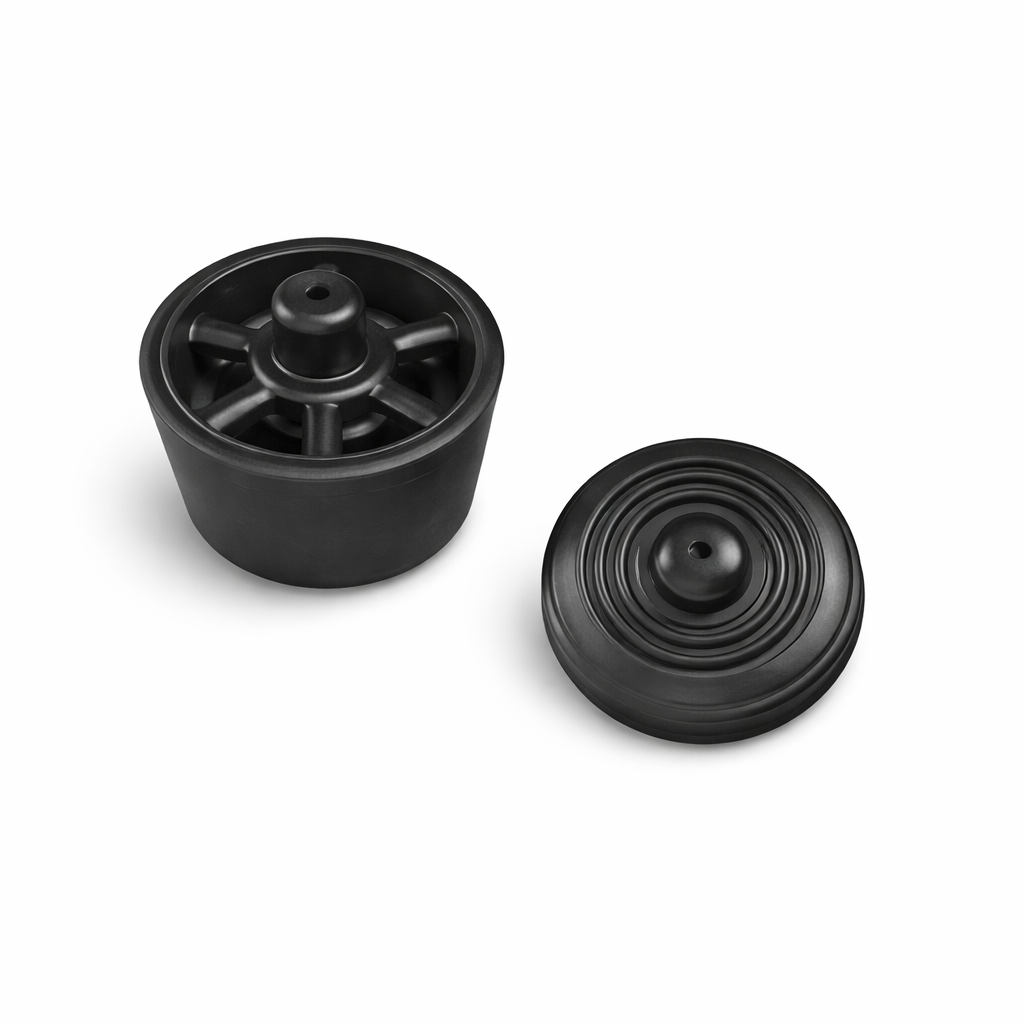

00 Series: 2-piece Foot / Bumper (Rivet Mount - Fast Foot)
Rivet/Screw Mount

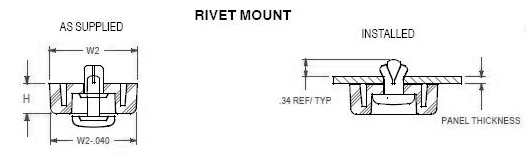

.jpg "05-00 Dimensions")
.jpg "05-00 Dimensions")
- Mounting Foot (Push Rivet Mount)
- Two-piece part supplied pre-assembled
- Reduces vibration and movement of appliances and equipment
- Install easily by hand and remove with tool/screwdriver
- Color: Black
- Packaging: 200/bag
- Material(Body): TPR (Santoprene) UL Rated: HB UL File# E80017
- Material(Rivet): Nylon 6 (UL94V-2) UL File# E41871
- RoHS Compliant
- Temp Range: -58 to 194 F (-50 to 90 C)
1 2
Item # |
Mounting Hole Dia. |
H (Ref) |
W2 (Ref) |
Panel Thickness Range |
Request Quote/Sample |
|---|---|---|---|---|---|
| 05-00-003 05-00-003/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .122 - .126 (3.1 - 3.2) inches (mm) | H (Ref) N/A .22 (5.5) inches (mm) | W2 (Ref) N/A .56 (14.2) inches (mm) | Panel Thickness Range N/A .031 - .071 (.8 - 1.8) inches (mm) | Request Quote/Sample |
| 05-00-002 05-00-002/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .122 - .126 (3.1 - 3.2) inches (mm) | H (Ref) N/A .22 (5.5) inches (mm) | W2 (Ref) N/A .56 (14.2) inches (mm) | Panel Thickness Range N/A .071-.111 (1.8-2.8) inches (mm) | Request Quote/Sample |
| 05-00-005 05-00-005/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161-.165 (4.1-4.2) inches (mm) | H (Ref) N/A .17 (4.2) inches (mm) | W2 (Ref) N/A .83 (21.0) inches (mm) | Panel Thickness Range N/A .032 - .071 (.8 - 1.8) inches (mm) | Request Quote/Sample |
| 05-00-031 05-00-031/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161-.165 (4.1-4.2) inches (mm) | H (Ref) N/A .17 (4.2) inches (mm) | W2 (Ref) N/A .83 (21.0) inches (mm) | Panel Thickness Range N/A .071-.111 (1.8-2.8) inches (mm) | Request Quote/Sample |
| 05-00-013 05-00-013/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161-.165 (4.1-4.2) inches (mm) | H (Ref) N/A .24 (6) inches (mm) | W2 (Ref) N/A .59 (15) inches (mm) | Panel Thickness Range N/A .039-.079 (1-2) inches (mm) | Request Quote/Sample |
| 05-00-007 05-00-007/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161-.165 (4.1-4.2) inches (mm) | H (Ref) N/A .17 (4.2) inches (mm) | W2 (Ref) N/A .83 (21.0) inches (mm) | Panel Thickness Range N/A .150-.189 (3.8-4.8) inches (mm) | Request Quote/Sample |
| 05-00-012 05-00-012/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161-.165 (4.1-4.2) inches (mm) | H (Ref) N/A .24(6.0) inches (mm) | W2 (Ref) N/A .59 (15.0) inches (mm) | Panel Thickness Range N/A .024-.039 (.6-1.0) inches (mm) | Request Quote/Sample |
| 05-00-006 05-00-006/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161-.165 (4.1-4.2) inches (mm) | H (Ref) N/A .17 (4.2) inches (mm) | W2 (Ref) N/A .83 (21) inches (mm) | Panel Thickness Range N/A .114-.146 (2.9-3.7) inches (mm) | Request Quote/Sample |
| 05-00-014 05-00-014/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161-.165 (4.1-4.2) inches (mm) | H (Ref) N/A .24 (6) inches (mm) | W2 (Ref) N/A .59 (15) inches (mm) | Panel Thickness Range N/A .079-.118 (2.0-3.1) inches (mm) | Request Quote/Sample |
| 05-00-017 05-00-017/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .200-.205 (5.1-5.2) inches (mm) | H (Ref) N/A .24 (6) inches (mm) | W2 (Ref) N/A .59 (15) inches (mm) | Panel Thickness Range N/A .031-.047 (.8-1.2) inches (mm) | Request Quote/Sample |
| 05-00-018 05-00-018/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .200-.205 (5.1-5.2) inches (mm) | H (Ref) N/A .24 (6) inches (mm) | W2 (Ref) N/A .59 (15) inches (mm) | Panel Thickness Range N/A .051-.091 (1.3-2.3) inches (mm) | Request Quote/Sample |
| 05-00-008 05-00-008/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161-.165 (4.1-4.2) inches (mm) | H (Ref) N/A .24 (6.0) inches (mm) | W2 (Ref) N/A .83 (21.0) inches (mm) | Panel Thickness Range N/A .031 - .071 (.8 - 1.8) inches (mm) | Request Quote/Sample |
| 05-00-010 05-00-010/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161 - .165 (4.1 - 4.2) inches (mm) | H (Ref) N/A .24 (6) inches (mm) | W2 (Ref) N/A .83 (21.0) inches (mm) | Panel Thickness Range N/A .075 - .110 (1.9 - 2.8) inches (mm) | Request Quote/Sample |
| 05-00-019 05-00-019/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161 - .165 (4.1 - 4.2) inches (mm) | H (Ref) N/A .24 (6) inches (mm) | W2 (Ref) N/A .83 (21.0) inches (mm) | Panel Thickness Range N/A .114-.157 (2.9-4.0) inches (mm) | Request Quote/Sample |
| 05-00-020 05-00-020/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161-.165 (4.1-4.2) inches (mm) | H (Ref) N/A .31 (8.0) inches (mm) | W2 (Ref) N/A .83 (21.0) inches (mm) | Panel Thickness Range N/A .00 - .031 (0-.8) inches (mm) | Request Quote/Sample |
| 05-00-009 05-00-009/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161-.165 (4.1-4.2) inches (mm) | H (Ref) N/A .31 (8.0) inches (mm) | W2 (Ref) N/A .83 (21.0) inches (mm) | Panel Thickness Range N/A .031 - .075 (.8 - 2.0) inches (mm) | Request Quote/Sample |
| 05-00-021 05-00-021/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161-.165 (4.1-4.2) inches (mm) | H (Ref) N/A .31 (8.0) inches (mm) | W2 (Ref) N/A .83 (21.0) inches (mm) | Panel Thickness Range N/A .083-.118 (2.1-3.0) inches (mm) | Request Quote/Sample |
| 05-00-022 05-00-022/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161-.165 (4.1-4.2) inches (mm) | H (Ref) N/A .35 (9) inches (mm) | W2 (Ref) N/A .59 (15) inches (mm) | Panel Thickness Range N/A .024-.039 (.6-1.0) inches (mm) | Request Quote/Sample |
| 05-00-016 05-00-016/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161-.165 (4.1-4.2) inches (mm) | H (Ref) N/A .35 (9) inches (mm) | W2 (Ref) N/A .59 (15) inches (mm) | Panel Thickness Range N/A .039-.079 (1.0-2.0) inches (mm) | Request Quote/Sample |
| 05-00-023 05-00-023/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .161-.165 (4.1-4.2) inches (mm) | H (Ref) N/A .35 (9) inches (mm) | W2 (Ref) N/A .59 (15) inches (mm) | Panel Thickness Range N/A .079-.118 (2.0-2.3) inches (mm) | Request Quote/Sample |
| 05-00-024 05-00-024/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .200-.205 (5.1-5.2) inches (mm) | H (Ref) N/A .35 (9) inches (mm) | W2 (Ref) N/A .59 (15) inches (mm) | Panel Thickness Range N/A .031-.047 (.8-1.2) inches (mm) | Request Quote/Sample |
| 05-00-025 05-00-025/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .200-.205 (5.1-5.2) inches (mm) | H (Ref) N/A .35 (9) inches (mm) | W2 (Ref) N/A .59 (15) inches (mm) | Panel Thickness Range N/A .047-.087 (1.2-2.2) inches (mm) | Request Quote/Sample |
| 05-00-026 05-00-026/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .142-.146 (3.6-3.7) inches (mm) | H (Ref) N/A .66 (16.8) inches (mm) | W2 (Ref) N/A .43 (10.8) inches (mm) | Panel Thickness Range N/A .020-.047 (.5-1.2) inches (mm) | Request Quote/Sample |
| 05-00-027 05-00-027/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .142-.146 (3.6-3.7) inches (mm) | H (Ref) N/A .66 (16.8) inches (mm) | W2 (Ref) N/A .43 (10.8) inches (mm) | Panel Thickness Range N/A .047-.079 (1.2-2.0) inches (mm) | Request Quote/Sample |
| 05-00-028 05-00-028/Asset/05-00-Series-2-piece-Foot--Bumper--Rivet-Mount---Fast-Foot-.png | Mounting Hole Dia. N/A .142-.146 (3.6-3.7) inches (mm) | H (Ref) N/A .66 (16.8) inches (mm) | W2 (Ref) N/A .43 (10.8) inches (mm) | Panel Thickness Range N/A .059-.087 (1.5-2.2) inches (mm) | Request Quote/Sample |
