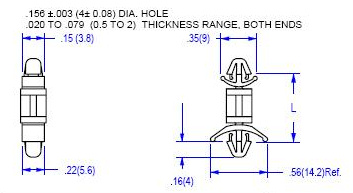

05 Series: .156 Board Hole x .156 Chassis Hole

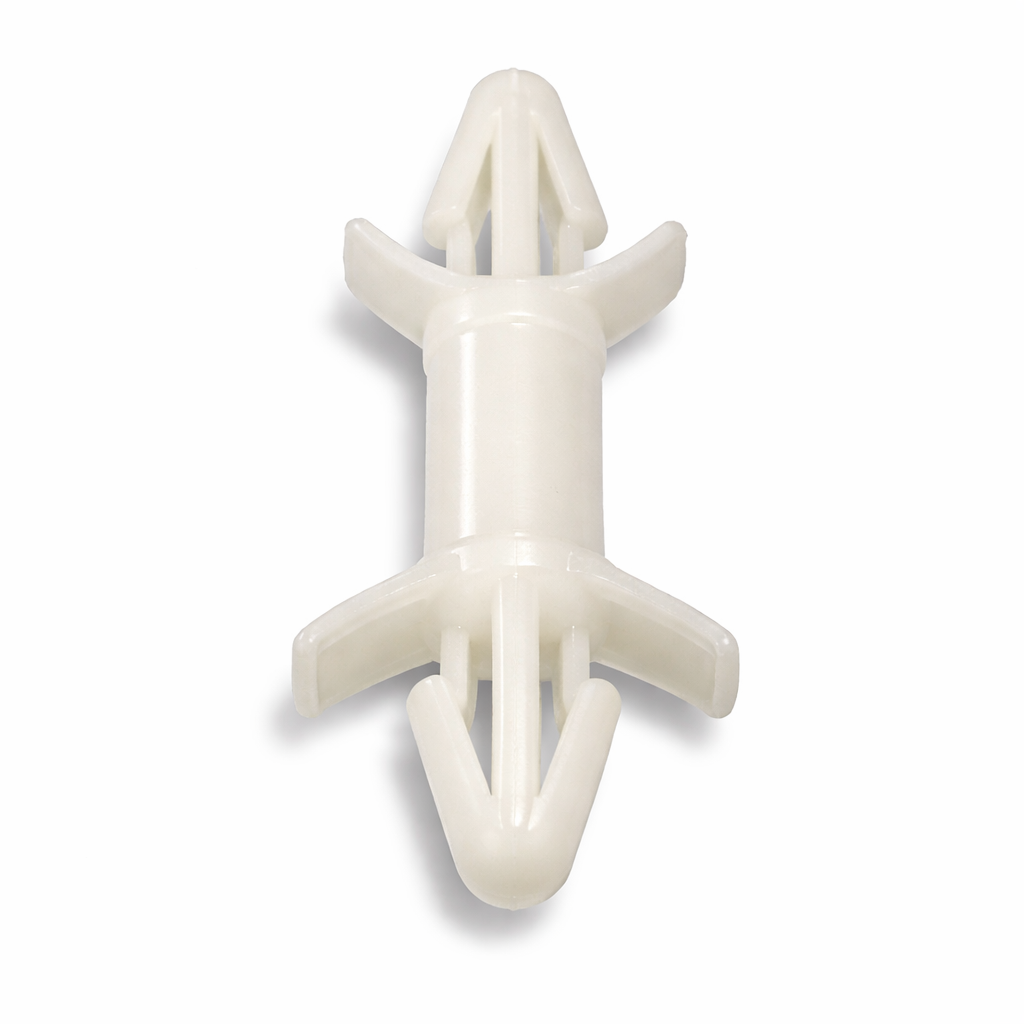

Arrowhead/Snap Fit
.jpg "46143")
.jpg "46143")
- Installs easily by hand
- Reduces assembly time
- Packaging: 500/bag
- Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
- UL File No: E53664
- ASTM: D 4066
- RoHS Compliant
- Temp Range: -40 to 185F (-40 to 85C)
Item # |
Material Code |
Color |
Dim. - L |
Board Thickness |
Chassis Thickness |
Request Quote/Sample |
|---|---|---|---|---|---|---|
| 01-05-30 01-05-30/Asset/01-05.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .350 (8.9) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-40 01-05-40/Asset/01-05.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .402 (10.2) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-60 01-05-60/Asset/01-05.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .528 (13.4) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-70 01-05-70/Asset/01-05.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .591 (15.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-80 01-05-80/Asset/01-05.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .650 (16.5) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-100 01-05-100/Asset/01-05.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .778 (19.7) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-120 01-05-120/Asset/01-05.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .902 (22.9) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-140 01-05-140/Asset/01-05.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 1.02 (26.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-30X 01-05-30X/Asset/01-05.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A .350 (8.9) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-40X 01-05-40X/Asset/01-05.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A .402 (10.2) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-60X 01-05-60X/Asset/01-05.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A .528 (13.4) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-70X 01-05-70X/Asset/01-05.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A .591 (15.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-80X 01-05-80X/Asset/01-05.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A .650 (16.5) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-100X 01-05-100X/Asset/01-05.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A .778 (19.7) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-120X 01-05-120X/Asset/01-05.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A .902 (22.9) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
| 01-05-140X 01-05-140X/Asset/01-05.png | Material Code N/A UL94V-0 | Color N/A White | Dim. - L N/A 1.02 (26.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .020 - .079 (0.5 - 2.0) inches (mm) | Request Quote/Sample |
