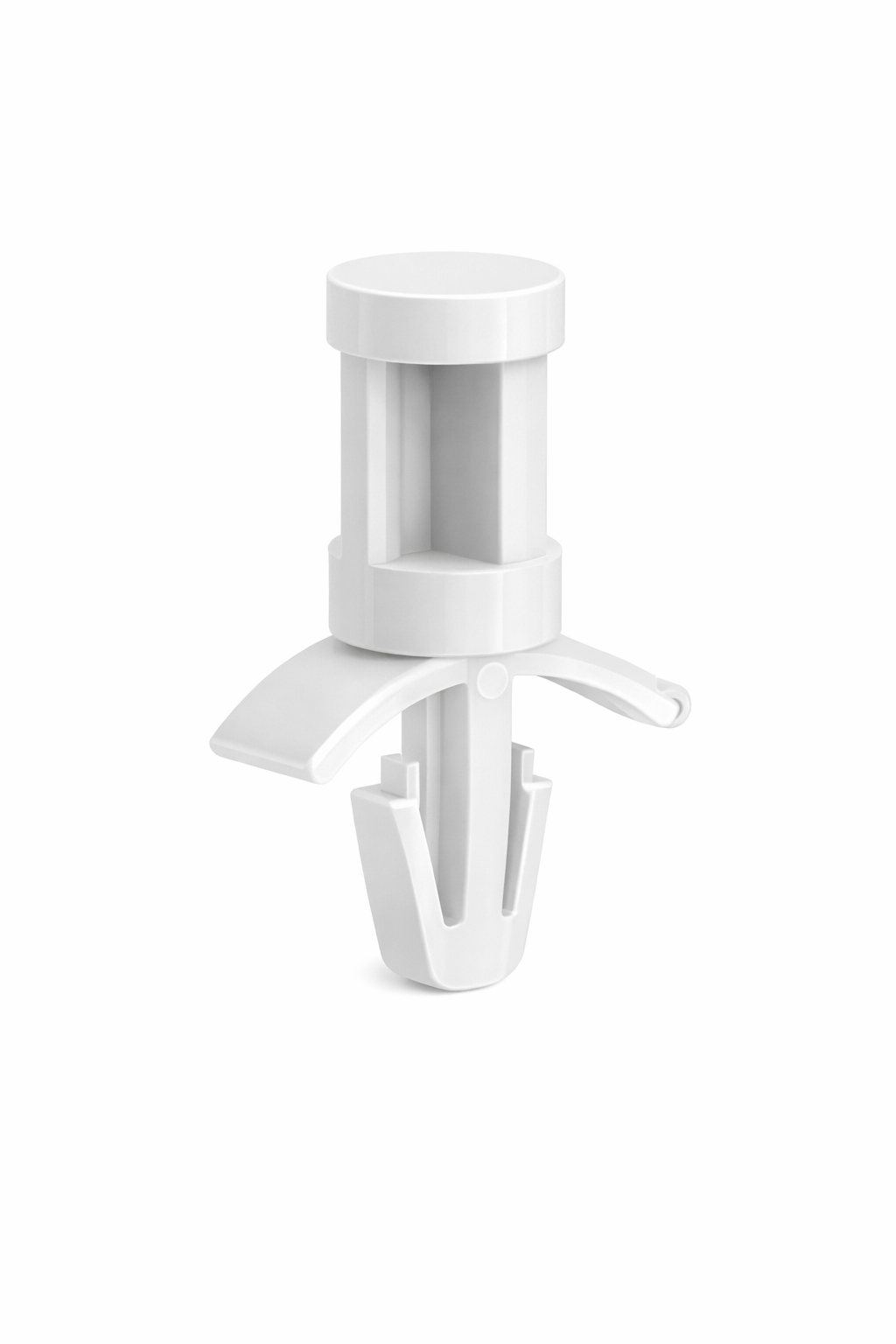

04 Series: Flat Board Side x .187 Chassis Hole
Arrowhead/Snap Fit
- No tools or screws required; installs easily to chassis
- Support densely loaded PC boards
- Panel Range: .032-.090
- Packaging: 500/bag
- Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
- UL File No: E70062
- ASTM: D 4066, PA111
- RoHS Compliant
- Temp Range: -40 to 185F (-40 to 85C)
Item # |
Material Code |
Color |
Dim. - L |
Chassis Thickness |
Mounting Hole Diameter |
Request Quote/Sample |
|---|---|---|---|---|---|---|
| 01-04-30 01-04-30/Asset/01-04-.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .187 ± .015 (4.8) inches (mm) | Chassis Thickness N/A .032 - .090 (.8 - 2.3) inches (mm) | Mounting Hole Diameter N/A .187 (4.8) inches (mm) | Request Quote/Sample |
| 01-04-40 01-04-40/Asset/01-04-.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .250 ± .015 (6.4) inches (mm) | Chassis Thickness N/A .032 - .090 (.8 - 2.3) inches (mm) | Mounting Hole Diameter N/A .187 (4.8) inches (mm) | Request Quote/Sample |
| 01-04-50 01-04-50/Asset/01-04-.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .312 ± .015 (7.9) inches (mm) | Chassis Thickness N/A .032 - .090 (.8 - 2.3) inches (mm) | Mounting Hole Diameter N/A .187 (4.8) inches (mm) | Request Quote/Sample |
| 01-04-60 01-04-60/Asset/01-04-.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .375 ± .015 (9.5) inches (mm) | Chassis Thickness N/A .032 - .090 (.8 - 2.3) inches (mm) | Mounting Hole Diameter N/A .187 (4.8) inches (mm) | Request Quote/Sample |
| 01-04-70 01-04-70/Asset/01-04-.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .437 ± .015 (11.1) inches (mm) | Chassis Thickness N/A .032 - .090 (.8 - 2.3) inches (mm) | Mounting Hole Diameter N/A .187 (4.8) inches (mm) | Request Quote/Sample |
| 01-04-80 01-04-80/Asset/01-04-.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .500 ± .015 (12.7) inches (mm) | Chassis Thickness N/A .032 - .090 (.8 - 2.3) inches (mm) | Mounting Hole Diameter N/A .187 (4.8) inches (mm) | Request Quote/Sample |
| 01-04-100 01-04-100/Asset/01-04-.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .625 ± .015 (15.9) inches (mm) | Chassis Thickness N/A .032 - .090 (.8 - 2.3) inches (mm) | Mounting Hole Diameter N/A .187 (4.8) inches (mm) | Request Quote/Sample |
| 01-04-120 01-04-120/Asset/01-04-.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .750 ± .015 (19.1) inches (mm) | Chassis Thickness N/A .032 - .090 (.8 - 2.3) inches (mm) | Mounting Hole Diameter N/A .187 (4.8) inches (mm) | Request Quote/Sample |
| 01-04-140 01-04-140/Asset/01-04-.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A .875 ± .015 (22.2) inches (mm) | Chassis Thickness N/A .032 - .090 (.8 - 2.3) inches (mm) | Mounting Hole Diameter N/A .187 (4.8) inches (mm) | Request Quote/Sample |
| 01-04-160 01-04-160/Asset/01-04-.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 1.00 ± .015 (25.4) inches (mm) | Chassis Thickness N/A .032 - .090 (.8 - 2.3) inches (mm) | Mounting Hole Diameter N/A .187 (4.8) inches (mm) | Request Quote/Sample |
| 01-04-180 01-04-180/Asset/01-04-.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 1.12 ± .015 (28.6) inches (mm) | Chassis Thickness N/A .032 - .090 (.8 - 2.3) inches (mm) | Mounting Hole Diameter N/A .187 (4.8) inches (mm) | Request Quote/Sample |
| 01-04-200 01-04-200/Asset/01-04-.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 1.25 ± .015 (31.8) inches (mm) | Chassis Thickness N/A .032 - .090 (.8 - 2.3) inches (mm) | Mounting Hole Diameter N/A .187 (4.8) inches (mm) | Request Quote/Sample |
| 01-04-220 01-04-220/Asset/01-04-.png | Material Code N/A UL94V-2 | Color N/A Natural | Dim. - L N/A 1.38 ± .015 (34.9) inches (mm) | Chassis Thickness N/A .032 - .090 (.8 - 2.3) inches (mm) | Mounting Hole Diameter N/A .187 (4.8) inches (mm) | Request Quote/Sample |
