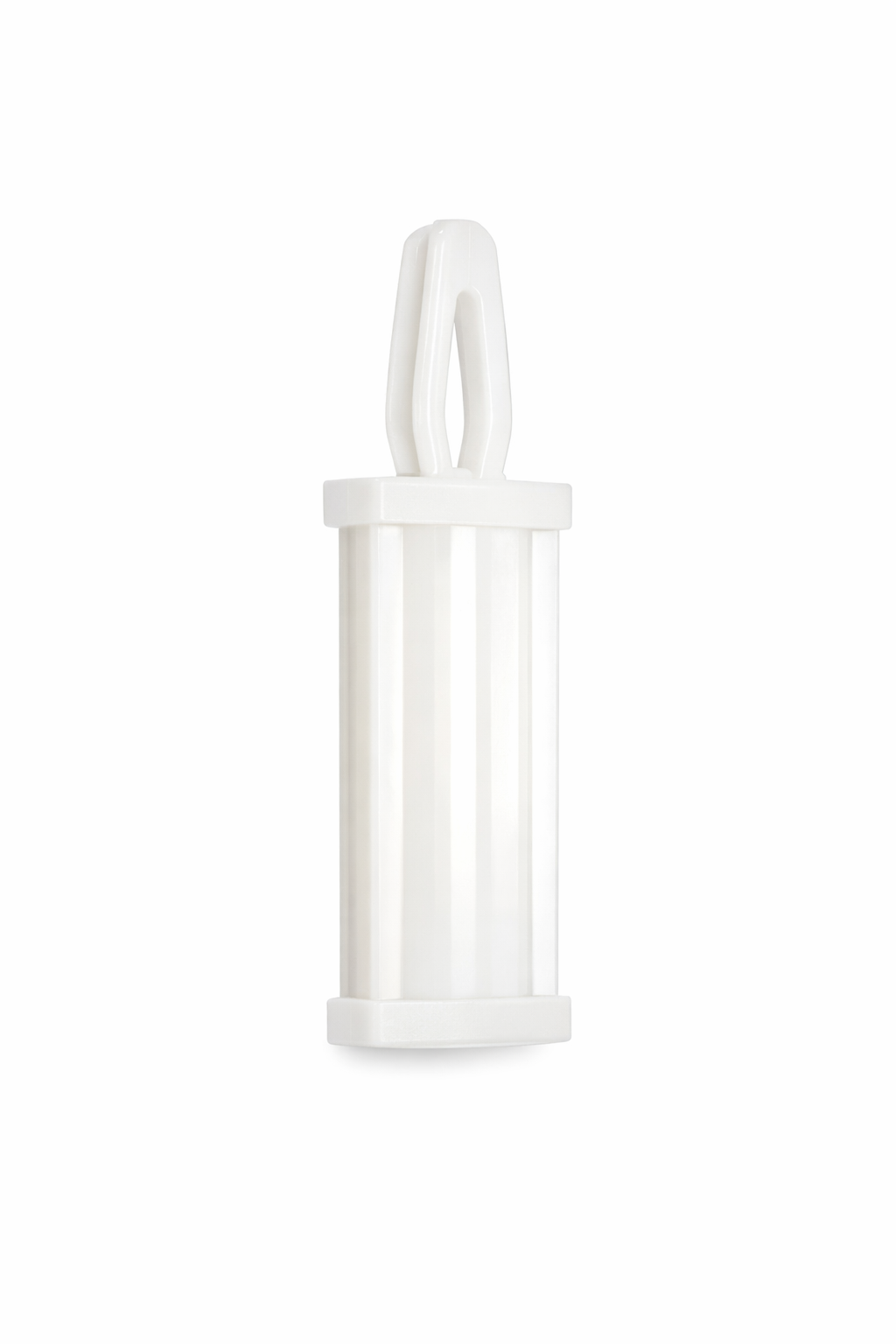

• 10A Series: .156 Board Hole x #6 Self Tapping Screw

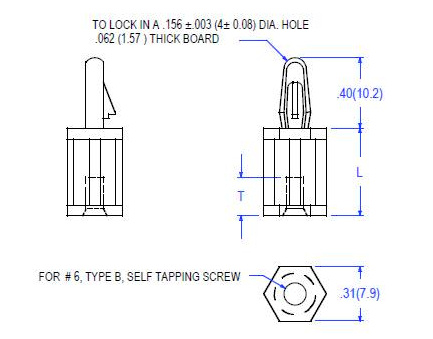

  • 01-10A Sketch
  • Installs easily by hand to chassis with self-tapping screw
  • Minimal protrusion; ideal for limited space applications
  • PC board mount end is releasable(Bayonet Nose)
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No:  E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L

Chassis Thickness

Board Hole Diameter

Dim. - T

Request Quote/Sample
N/A .250 (6.4) inches (mm) N/A .062 (1.57) inches (mm) N/A .156 (4) +/-.003 inches (mm) N/A .20 (5.2) inches (mm) Request Quote/Sample
N/A .375 (9.5) inches (mm) N/A .062 (1.57) inches (mm) N/A .156 (4) +/-.003 inches (mm) N/A .31 (8) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) N/A .062 (1.57) inches (mm) N/A .156 (4) +/-.003 inches (mm) N/A .31 (8) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) N/A .062 (1.57) inches (mm) N/A .156 (4) +/-.003 inches (mm) N/A .31 (8) inches (mm) Request Quote/Sample
N/A .750 (19.1) inches (mm) N/A .062 (1.57) inches (mm) N/A .156 (4) +/-.003 inches (mm) N/A .31 (8) inches (mm) Request Quote/Sample
N/A .875 (22.2) inches (mm) N/A .062 (1.57) inches (mm) N/A .156 (4) +/-.003 inches (mm) N/A .31 (8) inches (mm) Request Quote/Sample
N/A 1.00 (25.4) inches (mm) N/A .062 (1.57) inches (mm) N/A .156 (4) +/-.003 inches (mm) N/A .31 (8) inches (mm) Request Quote/Sample
N/A 1.14 (29) inches (mm) N/A .062 (1.57) inches (mm) N/A .156 (4) +/-.003 inches (mm) N/A .31 (8) inches (mm) Request Quote/Sample
N/A 1.40 (35.7) inches (mm) N/A .062 (1.57) inches (mm) N/A .156 (4) +/-.003 inches (mm) N/A .31 (8) inches (mm) Request Quote/Sample
