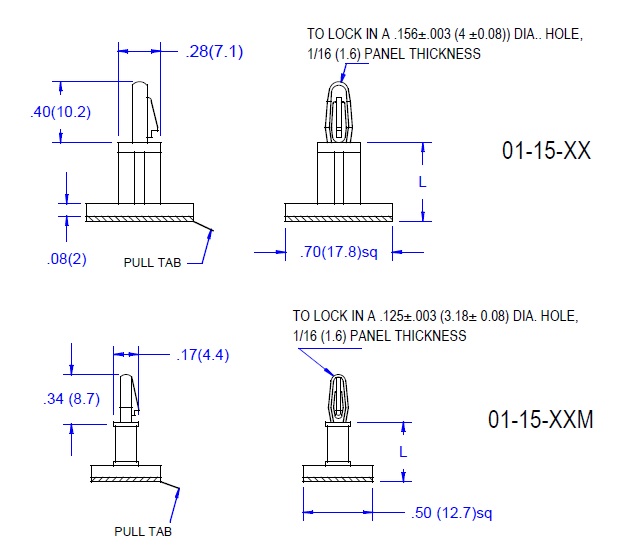

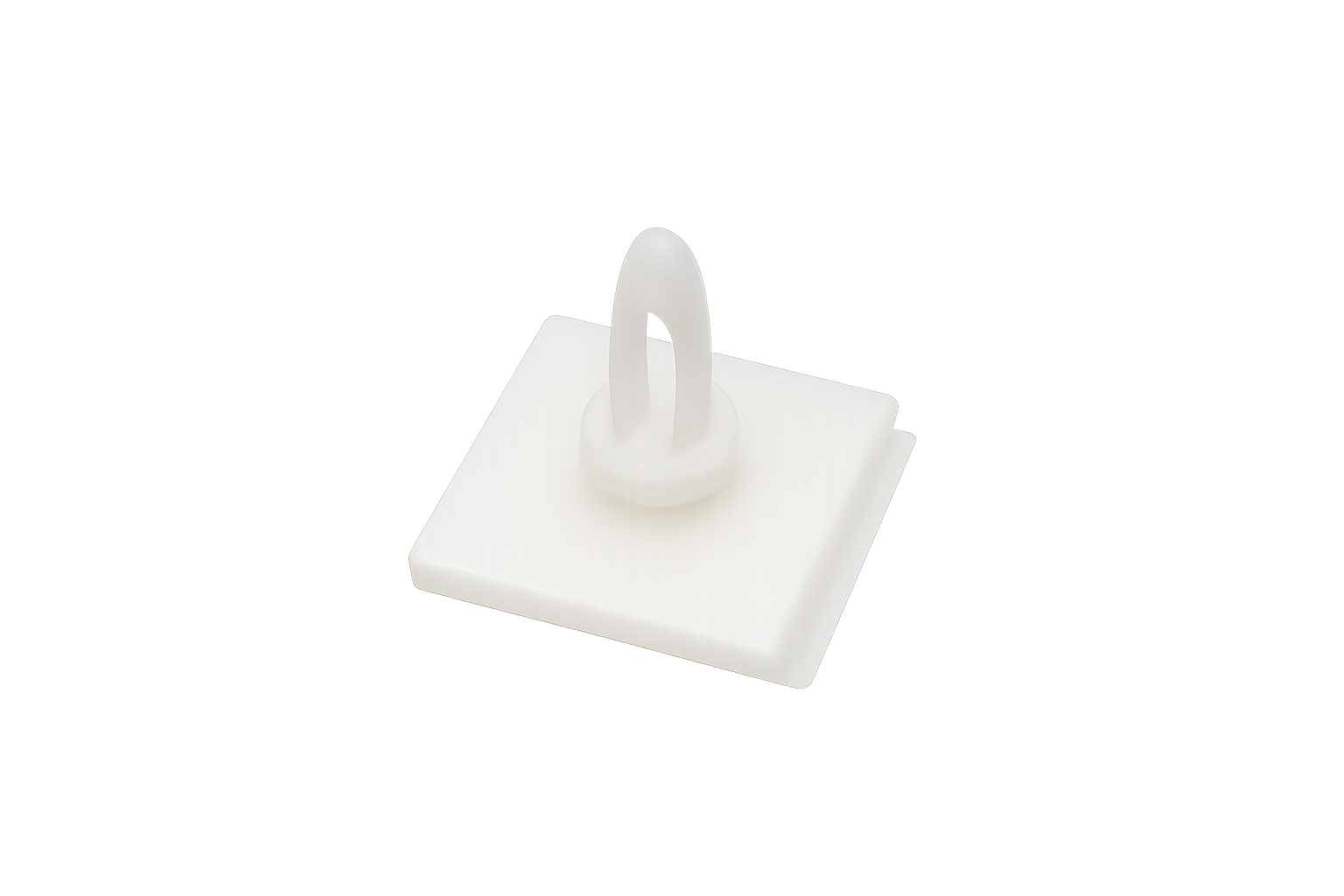

15 Series: .156 or .125 Board Hole x Adhesive Base
Adhesive Mount
- Circuit board support on adhesive base
- Color: Natural
- Packaging: 500/bag
- Material: Nylon 66 UL94V-2
- UL File No: E41938
- ASTM: D 4066, PA111
- RoHs Compliant
- Temp Range: -40 to 185F (-40 to 85C)
Item # |
Material Code |
Dim. - L |
Mounting Hole Diameter |
Board Thickness |
Request Quote/Sample |
|---|---|---|---|---|---|
| 01-15-30 01-15-30/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .187 ± .015 (4.8) inches (mm) | Mounting Hole Diameter N/A .156 ± .010 (4.0) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-30M 01-15-30M/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .187 ± .015 (4.8) inches (mm) | Mounting Hole Diameter N/A .125 ± .010 (3.2) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-40 01-15-40/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .250 ± .015 (6.4) inches (mm) | Mounting Hole Diameter N/A .156 ± .010 (4.0) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-40M 01-15-40M/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .250 ± .015 (6.4) inches (mm) | Mounting Hole Diameter N/A .125 ± .010 (3.2) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-50M 01-15-50M/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .312 ± .015 (7.9) inches (mm) | Mounting Hole Diameter N/A .125 ± .010 (3.2) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-60 01-15-60/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .375 ± .015 (9.6) inches (mm) | Mounting Hole Diameter N/A .156 ± .010 (4.0) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-60M 01-15-60M/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .375 ± .015 (9.6) inches (mm) | Mounting Hole Diameter N/A .125 ± .010 (3.2) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-70M 01-15-70M/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .437 ± .015 (11.1) inches (mm) | Mounting Hole Diameter N/A .125 ± .010 (3.2) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-80 01-15-80/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .500 ± .015 (12.7) inches (mm) | Mounting Hole Diameter N/A .156 ± .010 (4.0) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-80M 01-15-80M/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .500 ± .015 (12.7) inches (mm) | Mounting Hole Diameter N/A .125 ± .010 (3.2) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-90M 01-15-90M/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .563 ± .015 (14.3) inches (mm) | Mounting Hole Diameter N/A .125 ± .010 (3.2) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-100 01-15-100/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .625 ± .015 (15.9) inches (mm) | Mounting Hole Diameter N/A .156 ± .010 (4.0) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-100M 01-15-100M/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .625 ± .015 (15.9) inches (mm) | Mounting Hole Diameter N/A .125 ± .010 (3.2) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-120 01-15-120/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .750 ± .015 (19.1) inches (mm) | Mounting Hole Diameter N/A .156 ± .010 (4.0) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-140 01-15-140/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A .875 ± .015 (22.3) inches (mm) | Mounting Hole Diameter N/A .156 ± .010 (4.0) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-160 01-15-160/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A 1.00 ± .015 (25.4) inches (mm) | Mounting Hole Diameter N/A .156 ± .010 (4.0) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
| 01-15-180 01-15-180/Asset/01-15-series.png | Material Code N/A UL94V-2 | Dim. - L N/A 1.125 ± .015 (28.6) inches (mm) | Mounting Hole Diameter N/A .156 ± .010 (4.0) inches (mm) | Board Thickness N/A .062 ± .010 (1.57) inches (mm) | Request Quote/Sample |
