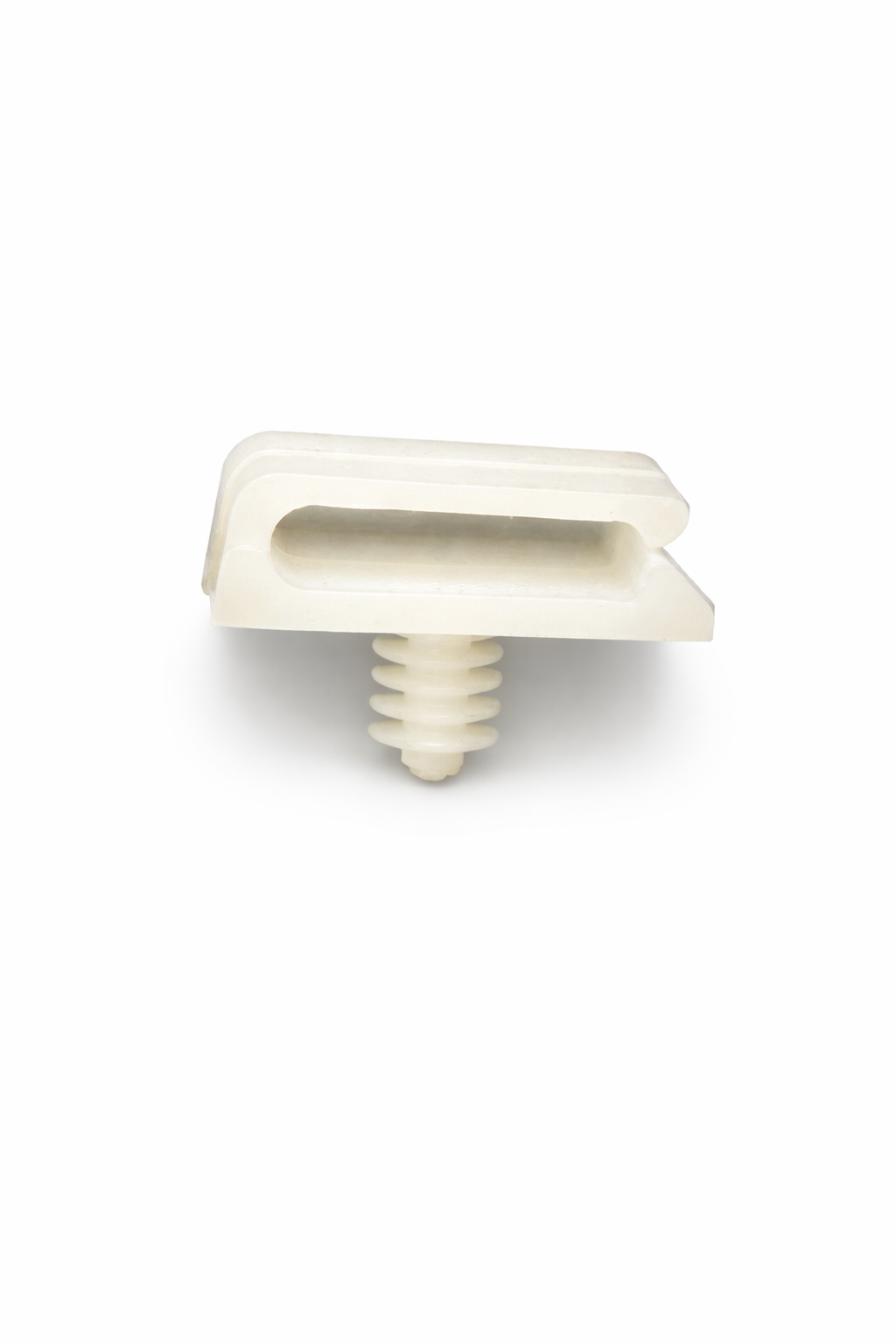

• 18 Series: Miniature Side Entry Wire Saddle - Arrowhead Mount

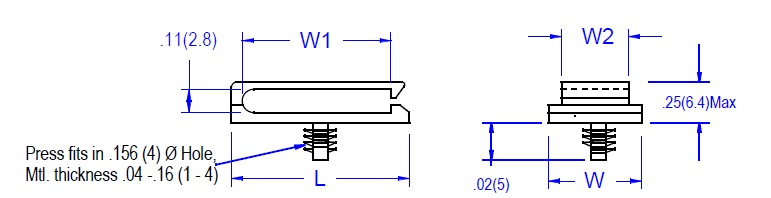

  • 03-18-arrowhead sketch
  • Low profile clip (side entry)
  • Arrowhead Mount (.156 Mtg Hole)
  • .04-.16 Thick Panel
  • Material Code: UL94V-2
  • Color: Natural
  • Material: Nylon 66
  • RoHS Compliant
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L

Dim. - W

Dim. - W1

Dim. - W2

Request Quote/Sample
N/A .50 (12.7) inches (mm) N/A .375 (9.5) inches (mm) N/A .33 (8.3) inches (mm) N/A .25 (6.4) inches (mm) Request Quote/Sample
N/A .67 (17) inches (mm) N/A .375 (9.5) inches (mm) N/A .50 (12.7) inches (mm) N/A .32 (8.1) inches (mm) Request Quote/Sample
N/A .96 (24.4) inches (mm) N/A .50 (12.7) inches (mm) N/A .79 (20) inches (mm) N/A .37 (9.4) inches (mm) Request Quote/Sample
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
