• 74 Series: Stand-Off Locking Clip

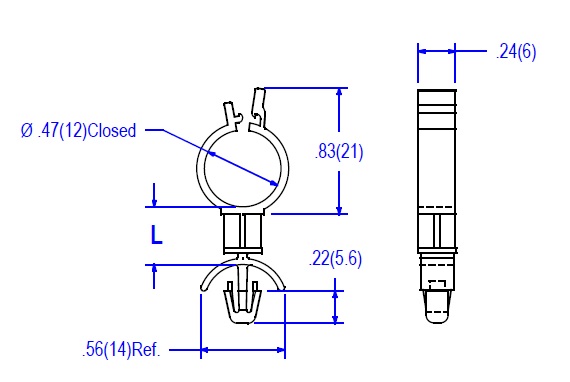

  • 03-74 & 03-74-2 SKETCH

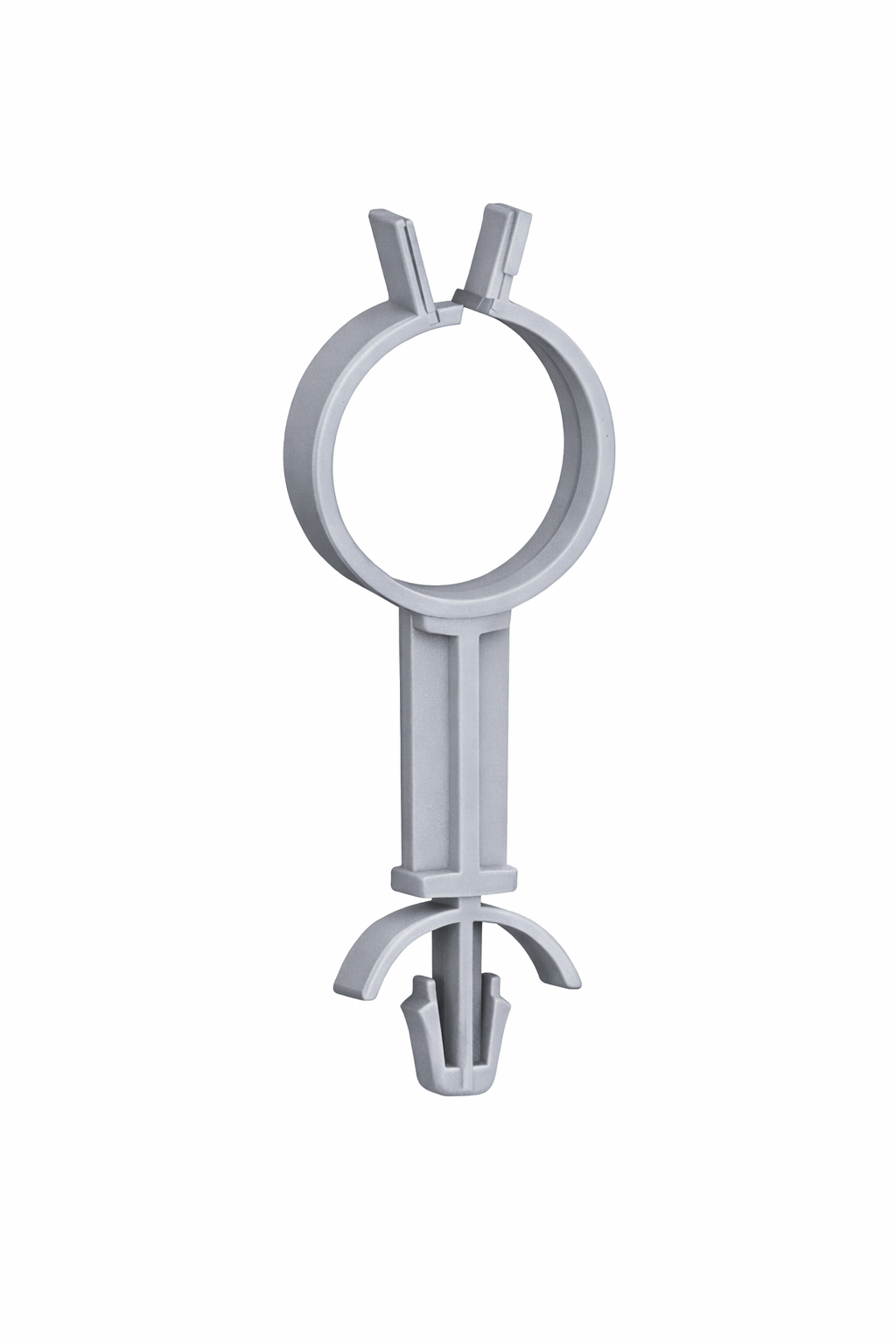

  • Stand-Off Locking Clip
  • Routes .500 Bundle - Mounts in .187 Hole
  • Panel Ranges: .031-.078 & .078-.160
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (V-0 available, add 'X' to end of Pt#)
  • RoHS Compliant
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

L +/-.015

MTG Hole Dia.

Panel Thickness Range

Request Quote/Sample
N/A .187 (4.8) inches (mm) N/A .187 inches (mm) N/A .031-.078 inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) N/A .187 inches (mm) N/A .031-.078 inches (mm) Request Quote/Sample
N/A .375 (9.5) inches (mm) N/A .187 inches (mm) N/A .031-.078 inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) N/A .187 inches (mm) N/A .031-.078 inches (mm) Request Quote/Sample
N/A .750 (19.1) inches (mm) N/A .187 inches (mm) N/A .031-.078 inches (mm) Request Quote/Sample
N/A .187 (4.8) inches (mm) N/A .187 inches (mm) N/A .078-.160 inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) N/A .187 inches (mm) N/A .078-.160 inches (mm) Request Quote/Sample
N/A .375 (9.5) inches (mm) N/A .187 inches (mm) N/A .078-.160 inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) N/A .187 inches (mm) N/A .078-.160 inches (mm) Request Quote/Sample
N/A .750 (19.1) inches (mm) N/A .187 inches (mm) N/A .078-.160 (2-4) inches (mm) Request Quote/Sample
