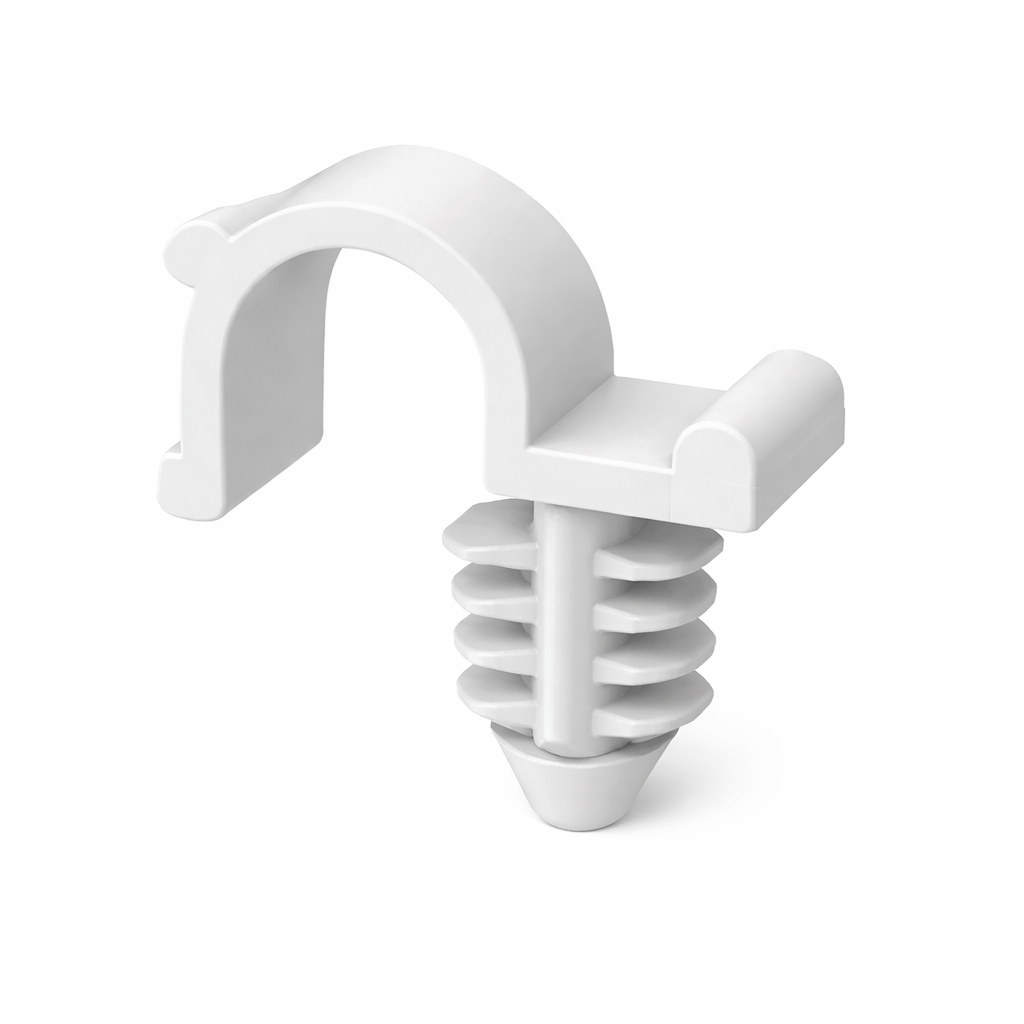

• 85 Series: 1/2 U-Style Routing Clip - Blind Hole Mount

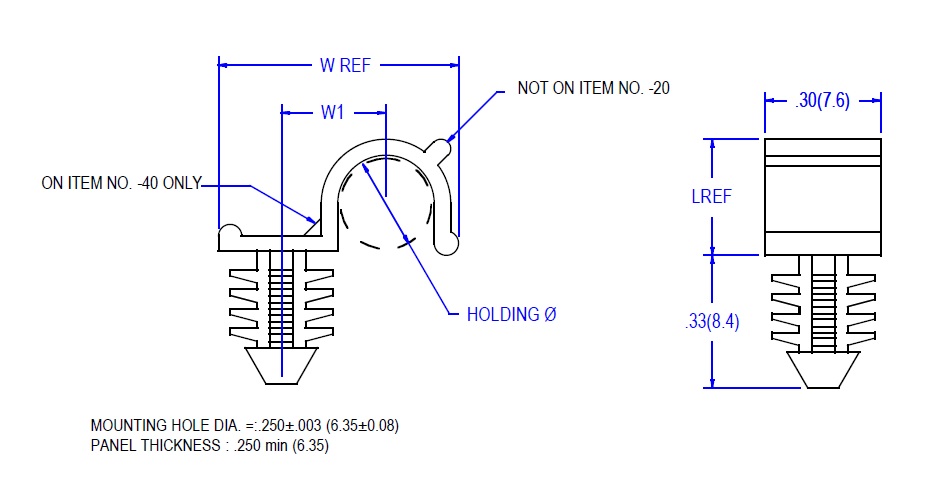

  • 03-85 Sketch.jpg
  • Routing Clip (1/8" to 1/4" Bundles)
  • Blind Hole/X-Mass Tree Type Mount (.250 Mtg Hole)
  • .250 Minimum Panel/Chassis Thickness
  • Color: Natural
  • Material: Nylon 66 (UL94V-2)
  • RoHS Compliant
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

L - REF

W - REF

W1 - REF

(D) Bundle Diameter

Request Quote/Sample
N/A .17 (4.3) inches (mm) N/A .49 (12.4) inches (mm) N/A .20 (5.1) inches (mm) N/A .12 (3.2) inches (mm) Request Quote/Sample
N/A .24 (6.1) inches (mm) N/A .56 (14.2) inches (mm) N/A .24 (6.1) inches (mm) N/A .19 (4.8) inches (mm) Request Quote/Sample
N/A .30 (7.6) inches (mm) N/A .62 (15.7) inches (mm) N/A .27 (6.9) inches (mm) N/A .25 (6.4) inches (mm) Request Quote/Sample
