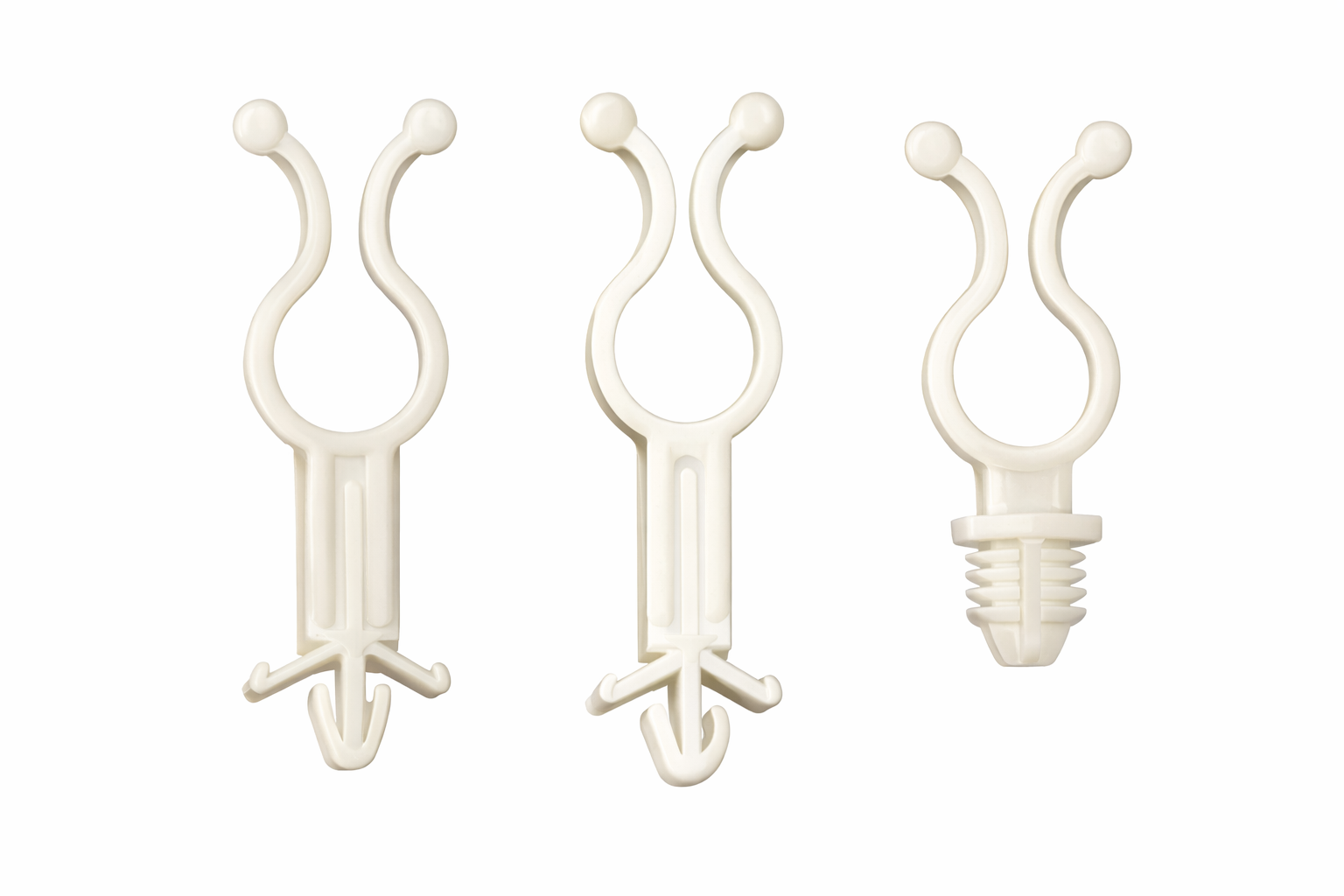

39 Series: Twist Lock Standoff(.30-.40 Bundle Range)
Wire Routing Devices Arrowhead Mount
- Route and secure wire or bundles with a simple twist
- .30-.40 Bundle Range
- Arrowhead snap locks easily into boards
- Lifts wires off board away from panels, moving parts or hot components
- Color: Natural
- Material: Nylon 66(UL94V-2)
- RoHS Compliant
Item # |
Material Code |
Package Size |

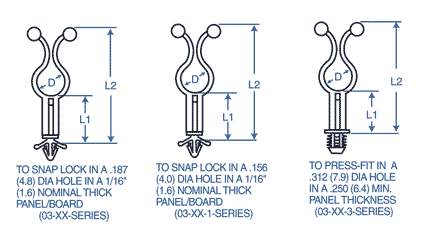

Hole Size |
Dim. - L1 |
Dim. - L2 |
Bundle Diameter Range |
Request Quote/Sample |
|---|---|---|---|---|---|---|---|
| 03-39-30 03-39-30/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .187 (4.8) inches (mm) | Dim. - L2 N/A 1.18 (29.9) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-40 03-39-40/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L2 N/A 1.25 (31.2) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-50 03-39-50/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .312 (7.9) inches (mm) | Dim. - L2 N/A 1.31 (33.3) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-60 03-39-60/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .375 (9.5) inches (mm) | Dim. - L2 N/A 1.37 (35.1) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-70 03-39-70/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .438 (11.1) inches (mm) | Dim. - L2 N/A 1.43 (36.3) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-80 03-39-80/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .500 (12.7) inches (mm) | Dim. - L2 N/A 1.50 (38.1) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-90 03-39-90/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .562 (14.3) inches (mm) | Dim. - L2 N/A 1.56 (39.6) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-100 03-39-100/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .625 (15.9) inches (mm) | Dim. - L2 N/A 1.62 (41.4) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-120 03-39-120/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .750 (19.1) inches (mm) | Dim. - L2 N/A 1.75 (44.5) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-140 03-39-140/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .875 (22.2) inches (mm) | Dim. - L2 N/A 1.87 (47.8) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-160 03-39-160/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.00 (25.4) inches (mm) | Dim. - L2 N/A 2.00 (50.8) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-180 03-39-180/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.13 (28.7) inches (mm) | Dim. - L2 N/A 2.13 (54.1) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-200 03-39-200/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.25 (31.2) inches (mm) | Dim. - L2 N/A 2.25 (57.2) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-220 03-39-220/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.38 (35.1) inches (mm) | Dim. - L2 N/A 2.38 (60.5) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-240 03-39-240/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.50 (38.1) inches (mm) | Dim. - L2 N/A 2.50 (63.5) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-260 03-39-260/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.63 (41.4) inches (mm) | Dim. - L2 N/A 2.63 (66.8) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-280 03-39-280/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.75 (44.5) inches (mm) | Dim. - L2 N/A 2.75 (69.9) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-300 03-39-300/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.88 (47.8) inches (mm) | Dim. - L2 N/A 2.88 (73.2) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-320 03-39-320/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 2.00 (50.8) inches (mm) | Dim. - L2 N/A 3.00 (76.2) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-30X 03-39-30X/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-0 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .187 (4.8) inches (mm) | Dim. - L2 N/A 1.18 (29.9) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-40X 03-39-40X/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-0 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L2 N/A 1.25 (31.2) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-50X 03-39-50X/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-0 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .312 (7.9) inches (mm) | Dim. - L2 N/A 1.31 (33.3) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-60X 03-39-60X/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-0 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .375 (9.5) inches (mm) | Dim. - L2 N/A 1.37 (35.1) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-70X 03-39-70X/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-0 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .438 (11.1) inches (mm) | Dim. - L2 N/A 1.43 (36.3) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
| 03-39-80X 03-39-80X/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-0 | Package Size N/A 1000 /bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .500 (12.7) inches (mm) | Dim. - L2 N/A 1.50 (38.1) inches (mm) | Bundle Diameter Range N/A .300 - .400 (7.6 - 10.2) inches (mm) | Request Quote/Sample |
