36 Series: Twist Lock Standoff(.50-.60 Bundle Range)
Wire Routing Devices Arrowhead Mount
- Route and secure wire or bundles with a simple twist
- .50-.60 Bundle Range
- Arrowhead snap locks easily into boards
- Lift wires off board away from panels, moving parts or hot components
- Color: Natural
- Material: Nylon 66(UL94V-2)
- RoHS Compliant
Item # |
Material Code |
Package Size |
Hole Size |

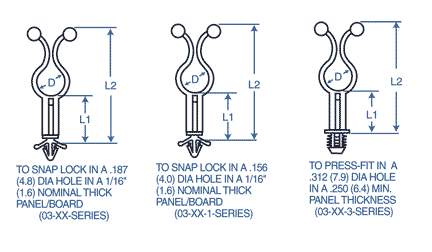

Dim. - L1 |
Dim. - L2 |
Bundle Diameter Range |
Request Quote/Sample |
|---|---|---|---|---|---|---|---|
| 03-36-30 03-36-30/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .187 (4.8) inches (mm) | Dim. - L2 N/A 1.47 (37.3) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-40 03-36-40/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L2 N/A 1.54 (39.0) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-50 03-36-50/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .312 (7.9) inches (mm) | Dim. - L2 N/A 1.60 (40.6) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-60 03-36-60/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .375 (9.5) inches (mm) | Dim. - L2 N/A 1.66 (42.2) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-70 03-36-70/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .438 (11.1) inches (mm) | Dim. - L2 N/A 1.72 (43.7) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-80 03-36-80/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .500 (12.7) inches (mm) | Dim. - L2 N/A 1.79 (45.5) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-90 03-36-90/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .562 (14.3) inches (mm) | Dim. - L2 N/A 1.85 (47.0) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-100 03-36-100/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .625 (15.9) inches (mm) | Dim. - L2 N/A 1.91 (48.5) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-120 03-36-120/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .750 (19.1) inches (mm) | Dim. - L2 N/A 2.04 (51.8) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-140 03-36-140/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .875 (22.2) inches (mm) | Dim. - L2 N/A 2.16 (54.9) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-160 03-36-160/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.00 (25.4) inches (mm) | Dim. - L2 N/A 2.29 (58.2) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-180 03-36-180/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.13 (28.7) inches (mm) | Dim. - L2 N/A 2.42 (61.5) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-200 03-36-200/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.25 (31.2) inches (mm) | Dim. - L2 N/A 2.54 (64.5) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-220 03-36-220/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.38 (35.1) inches (mm) | Dim. - L2 N/A 2.67 (67.8) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-240 03-36-240/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.50 (38.1) inches (mm) | Dim. - L2 N/A 2.79 (70.9) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-260 03-36-260/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.63 (41.4) inches (mm) | Dim. - L2 N/A 2.91 (73.9) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-280 03-36-280/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-2 | Package Size N/A 500 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A 1.75 (44.5) inches (mm) | Dim. - L2 N/A 3.04 (77.2) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-30X 03-36-30X/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-0 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .187 (4.8) inches (mm) | Dim. - L2 N/A 1.47 (37.3) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-40X 03-36-40X/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-0 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .250 (6.4) inches (mm) | Dim. - L2 N/A 1.54 (39.0) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-50X 03-36-50X/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-0 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .312 (7.9) inches (mm) | Dim. - L2 N/A 1.60 (40.6) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-60X 03-36-60X/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-0 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .375 (9.5) inches (mm) | Dim. - L2 N/A 1.66 (42.2) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-70X 03-36-70X/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-0 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .438 (11.1) inches (mm) | Dim. - L2 N/A 1.72 (43.7) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-80X 03-36-80X/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-0 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .500 (12.7) inches (mm) | Dim. - L2 N/A 1.79 (45.5) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-90X 03-36-90X/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-0 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .562 (14.3) inches (mm) | Dim. - L2 N/A 1.85 (47.0) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
| 03-36-100X 03-36-100X/Asset/03-35-36-39-43-44-Twist-Lock-Standoff.png | Material Code N/A UL94V-0 | Package Size N/A 1000 / bag | Hole Size N/A .187 (4.8) inches (mm) | Dim. - L1 N/A .625 (15.9) inches (mm) | Dim. - L2 N/A 1.91 (48.5) inches (mm) | Bundle Diameter Range N/A .500 - .600 (12.7 - 15.2) inches (mm) | Request Quote/Sample |
