• 22 (22-1) Series: Miniature Wire Saddle x .138 Mtg. Hole

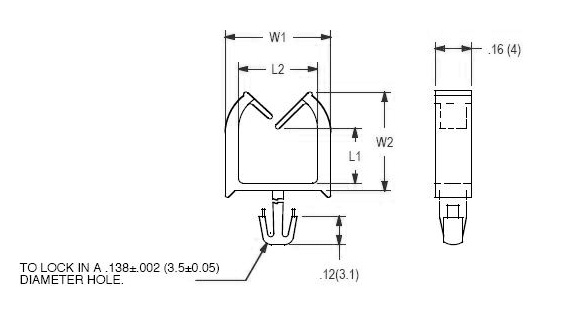

  • 03-22(-1) Dimensions
  • Micro/Miniature Wire Saddles
  • 03-22 Series:  For .062 Chassis Thickness
  • 03-22-1 Series:  For .093 Chassis Thickness
  • Packaging: 1000/bag
  • Material: Nylon 66  UL94V-2  (V-0 Available - add "X" to end of part#)
  • UL File No: E70062
  • Color: Natural
  • ASTM: D 4066, PA111
  • RoHS Compliant: Yes
  • Temp Range: -40 to 185 F (-40 to 85 C)
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L1

Dim. - L2

Panel Thickness

Mounting Hole Diameter

Dim. - W1

Dim. - W2

Request Quote/Sample
N/A .120 (3.0) inches (mm) N/A .260 (6.6) inches (mm) N/A .024 - .063 (.6 - 1.6) inches (mm) N/A .138 (3.5) inches (mm) N/A .360 (9.1) inches (mm) N/A .290 (7.3) inches (mm) Request Quote/Sample
N/A .160 (4.1) inches (mm) N/A .320 (8.1) inches (mm) N/A .024 - .063 (.6 - 1.6) inches (mm) N/A .138 (3.5) inches (mm) N/A .420 (10.7) inches (mm) N/A .360 (9.1) inches (mm) Request Quote/Sample
N/A .240 (6.0) inches (mm) N/A .360 (9.1) inches (mm) N/A .024 - .063 (.6 - 1.6) inches (mm) N/A .138 (3.5) inches (mm) N/A .470 (12.0) inches (mm) N/A .440 (11.2) inches (mm) Request Quote/Sample
N/A .300 (7.6) inches (mm) N/A .360 (9.1) inches (mm) N/A .024 - .063 (.6 - 1.6) inches (mm) N/A .138 (3.5) inches (mm) N/A .470 (11.9) inches (mm) N/A .510 (13.0) inches (mm) Request Quote/Sample
N/A .120 (3.0) inches (mm) N/A .260 (6.6) inches (mm) N/A .093 (2.4) inches (mm) N/A .138 (3.5) inches (mm) N/A .360 (9.1) inches (mm) N/A .290 (7.3) inches (mm) Request Quote/Sample
N/A .160 (4.1) inches (mm) N/A .320 (8.1) inches (mm) N/A .093 (2.4) inches (mm) N/A .138 (3.5) inches (mm) N/A .420 (10.7) inches (mm) N/A .360 (9.1) inches (mm) Request Quote/Sample
N/A .240 (6.0) inches (mm) N/A .360 (9.1) inches (mm) N/A .093 (2.4) inches (mm) N/A .138 (3.5) inches (mm) N/A .470 (12.0) inches (mm) N/A .440 (11.2) inches (mm) Request Quote/Sample
N/A .300 (7.6) inches (mm) N/A .360 (9.1) inches (mm) N/A .093 (2.4) inches (mm) N/A .138 (3.5) inches (mm) N/A .470 (11.9) inches (mm) N/A .510 (13.0) inches (mm) Request Quote/Sample
