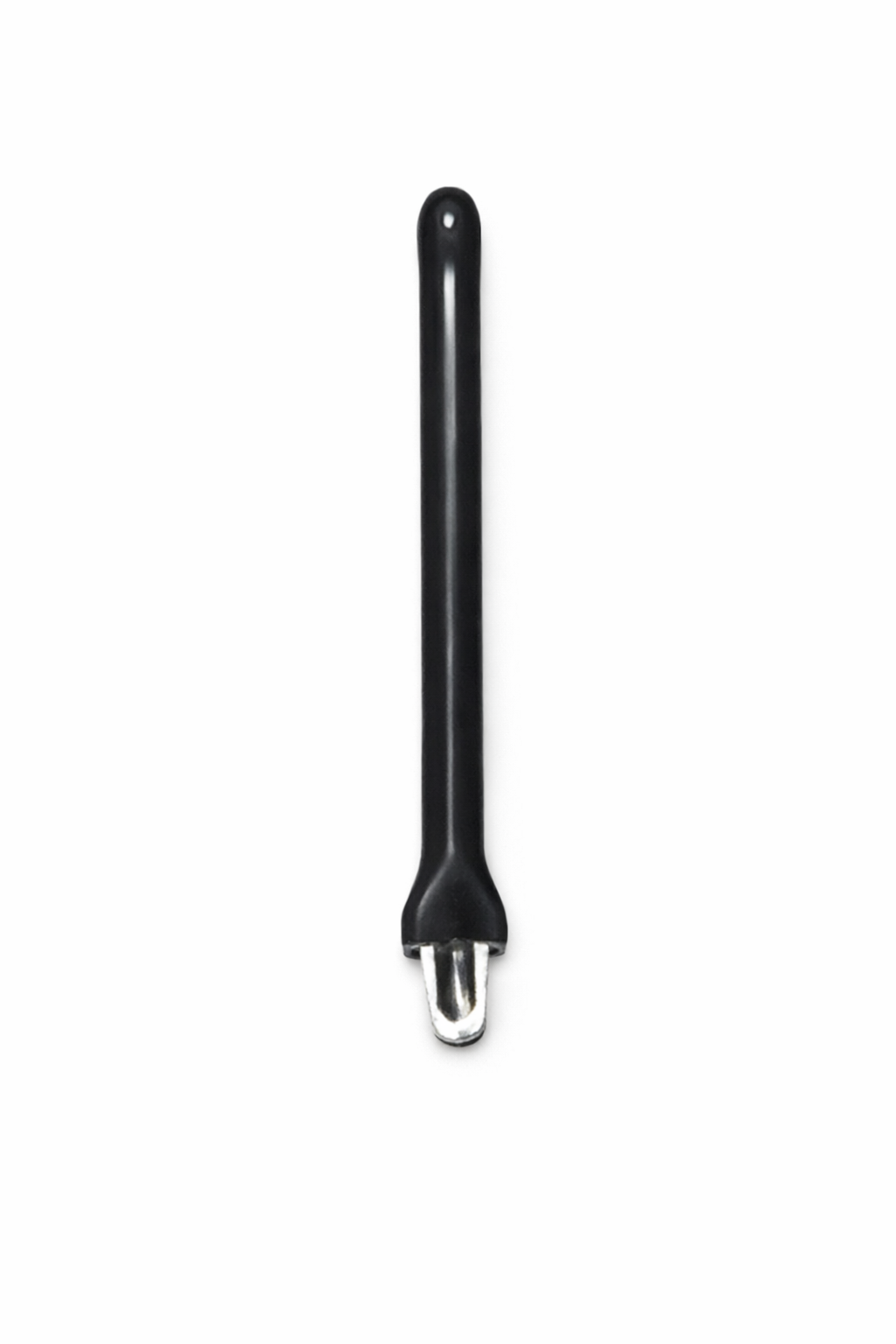

• 14 Series: Coated Flexible Clip

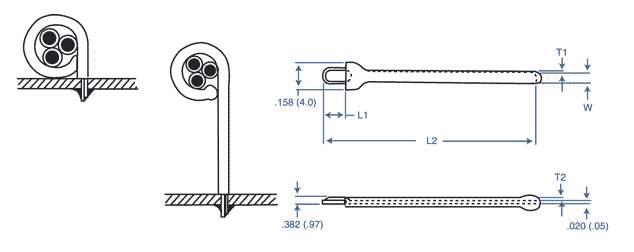

  • 03 - 14 Series - Dimensions
  • Ideal for jumper wire repairs on PC boards
  • Insulated
  • Slight protrusion eases insertion into mounting hole end
  • Color: Black
  • Packaging: 500/bag
  • Material: Clip - .5t Tinc Plated Steel, Coating - Soft PVC
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L1

Dim. - L2

Dim. - W

Dim. - T1

Dim. - T2

Mounting Hole Diameter

Request Quote/Sample
N/A .138 ± .059 (3.5 ± 1.5) inches (mm) N/A 1.97 (50.0) inches (mm) N/A .079 (2.0) inches (mm) N/A >.008 (.2) inches (mm) N/A .023 ± .012 (.6 ± .3) inches (mm) N/A .039 x .106 (1.0 x 2.7) inches (mm) Request Quote/Sample
N/A .138 ± .059 (3.5 ± 1.5) inches (mm) N/A 1.18 (30.0) inches (mm) N/A .079 (2.0) inches (mm) N/A >.008 (.2) inches (mm) N/A .023 ± .012 (.6 ± .3) inches (mm) N/A .039 x .106 (1.0 x 2.7) inches (mm) Request Quote/Sample
