• 08 Series: Wire Saddle

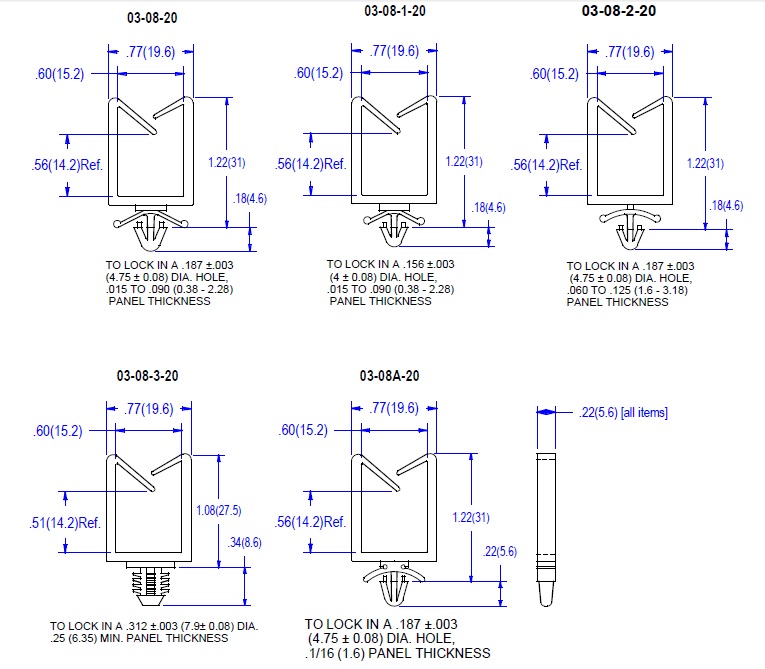

  • 03-08 Sketch

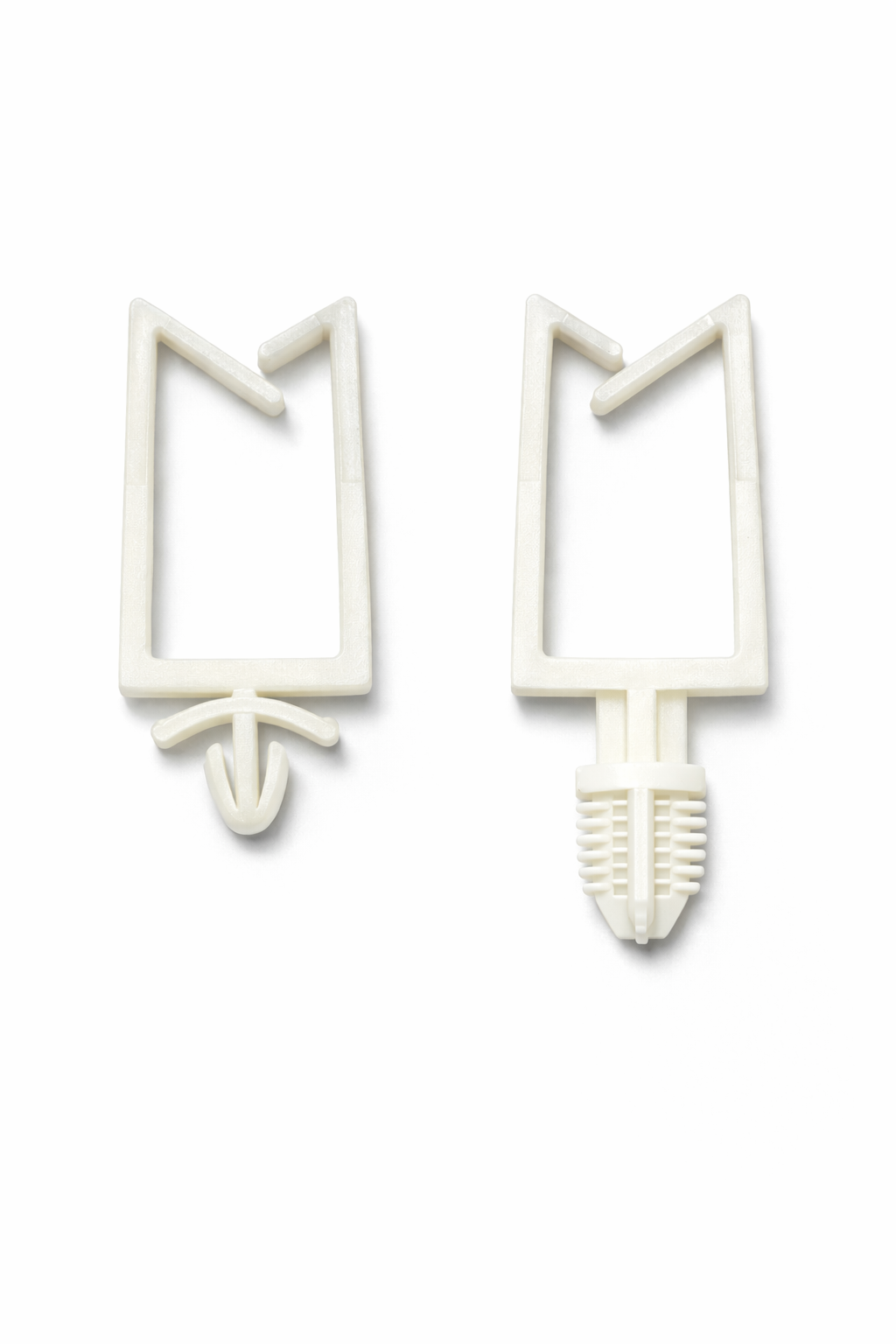

  • Tension arm wire saddle
  • Packaging: 500/bag
  • Material: Nylon 66 (UL94V-2)
  • Temp Range: -40 to 185 F
  • RoHS Compliant
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Board Hole Diameter

Board Thickness

Request Quote/Sample
N/A .187 (4.8) inches (mm) N/A .015 to .090 (.4-2.3) inches (mm) Request Quote/Sample
N/A .187 (4.8) inches (mm) N/A .062 (1.6) Maximum inches (mm) Request Quote/Sample
N/A .156 (4) inches (mm) N/A .015 to .090 (.4-2.3) inches (mm) Request Quote/Sample
N/A .187 (4.8) inches (mm) N/A .06 to .125 (1.6-3.2) inches (mm) Request Quote/Sample
N/A .312 (7.9) inches (mm) N/A .250 (6.4) Minimum inches (mm) Request Quote/Sample
