01 Series: Wire Saddle

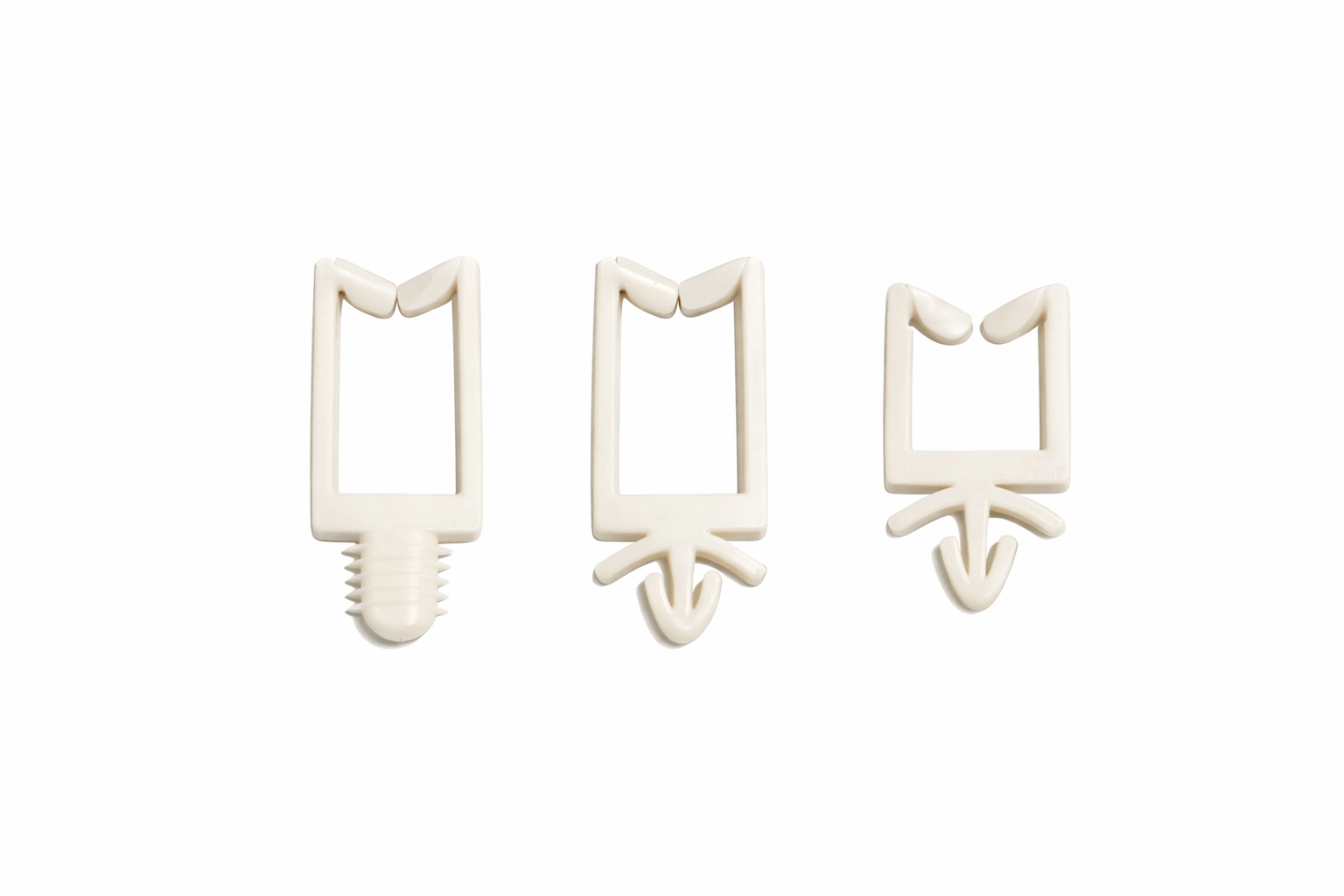

Wire Routing Devices Arrowhead Mount
- Various MTG Hole Styles & Sizes Available
- Funnel entry securely holds wires in any position
- Packaging: 500/bag
- Material: Nylon 66 (UL94V-2) (V-0 available add - X)
- Color: Natural (Black Available add-BK)
- RoHS Compliant

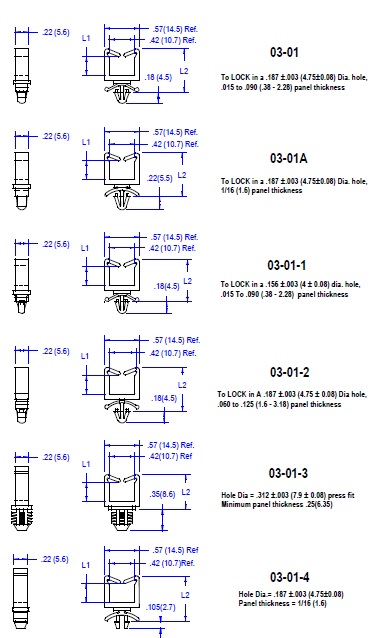

Item # |
Dim. - L1 |
Dim. - L2 |
(HD) Hole Diameter |
Chassis Thickness |
Request Quote/Sample |
|---|---|---|---|---|---|
| 03-01-10 03-01-10/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .166 (4.2) inches (mm) | Dim. - L2 N/A .635 (16.1) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .015 - .090 (.38-2.28) inches (mm) | Request Quote/Sample |
| 03-01-20 03-01-20/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .374 (9.5) inches (mm) | Dim. - L2 N/A .844 (21.4) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .015 - .090 (.38-2.28) inches (mm) | Request Quote/Sample |
| 03-01-30 03-01-30/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .720 (18.3) inches (mm) | Dim. - L2 N/A 1.20 (30.5) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .015 - .090 (.38-2.28) inches (mm) | Request Quote/Sample |
| 03-01-40 03-01-40/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A 1.04 (26.3) inches (mm) | Dim. - L2 N/A 1.47 (37.3) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .015 - .090 (.38-2.28) inches (mm) | Request Quote/Sample |
| 03-01A-10 03-01A-10/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .166 (4.2) inches (mm) | Dim. - L2 N/A .635 (16.1) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .02-.06(.5-1.6) inches (mm) | Request Quote/Sample |
| 03-01A-20 03-01A-20/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .374 (9.5) inches (mm) | Dim. - L2 N/A .844 (21.4) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .02-.06(.5-1.6) inches (mm) | Request Quote/Sample |
| 03-01A-30 03-01A-30/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .720 (18.3) inches (mm) | Dim. - L2 N/A 1.20 (30.5) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .02-.06(.5-1.6) inches (mm) | Request Quote/Sample |
| 03-01A-40 03-01A-40/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A 1.04 (26.3) inches (mm) | Dim. - L2 N/A 1.47 (37.3) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .02-.06(.5-1.6) inches (mm) | Request Quote/Sample |
| 03-01-1-10 03-01-1-10/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .166 (4.2) inches (mm) | Dim. - L2 N/A .635 (16.1) inches (mm) | (HD) Hole Diameter N/A .156 (4) inches (mm) | Chassis Thickness N/A .015 - .090 (.38-2.28) inches (mm) | Request Quote/Sample |
| 03-01-1-20 03-01-1-20/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .374 (9.5) inches (mm) | Dim. - L2 N/A .844 (21.4) inches (mm) | (HD) Hole Diameter N/A .156 (4) inches (mm) | Chassis Thickness N/A .015 - .090 (.38-2.28) inches (mm) | Request Quote/Sample |
| 03-01-1-30 03-01-1-30/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .720 (18.3) inches (mm) | Dim. - L2 N/A 1.20 (30.5) inches (mm) | (HD) Hole Diameter N/A .156 (4) inches (mm) | Chassis Thickness N/A .015 - .090 (.38-2.28) inches (mm) | Request Quote/Sample |
| 03-01-1-40 03-01-1-40/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A 1.04 (26.3) inches (mm) | Dim. - L2 N/A 1.47 (37.3) inches (mm) | (HD) Hole Diameter N/A .156 (4) inches (mm) | Chassis Thickness N/A .015 - .090 (.38-2.28) inches (mm) | Request Quote/Sample |
| 03-01-2-10 03-01-2-10/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .166 (4.2) inches (mm) | Dim. - L2 N/A .640 (16.3) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .06 - .125 (1.6-3.18) inches (mm) | Request Quote/Sample |
| 03-01-2-20 03-01-2-20/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .374 (9.5) inches (mm) | Dim. - L2 N/A .844 (21.4) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .06 - .125 (1.6-3.18) inches (mm) | Request Quote/Sample |
| 03-01-2-30 03-01-2-30/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .720 (18.3) inches (mm) | Dim. - L2 N/A 1.20 (30.5) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .06 - .125 (1.6-3.18) inches (mm) | Request Quote/Sample |
| 03-01-2-40 03-01-2-40/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A 1.04 (26.3) inches (mm) | Dim. - L2 N/A 1.47 (37.3) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .06 - .125 (1.6-3.18) inches (mm) | Request Quote/Sample |
| 03-01-3-10 03-01-3-10/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .166 (4.2) inches (mm) | Dim. - L2 N/A .485 (12.3) inches (mm) | (HD) Hole Diameter N/A .312 (7.9) inches (mm) | Chassis Thickness N/A .250(6.4) Minimum inches (mm) | Request Quote/Sample |
| 03-01-3-20 03-01-3-20/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .374 (9.5) inches (mm) | Dim. - L2 N/A .683 (17.3) inches (mm) | (HD) Hole Diameter N/A .312 (7.9) inches (mm) | Chassis Thickness N/A .250(6.4) Minimum inches (mm) | Request Quote/Sample |
| 03-01-3-30 03-01-3-30/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .720 (18.3) inches (mm) | Dim. - L2 N/A 1.04 (26.4) inches (mm) | (HD) Hole Diameter N/A .312 (7.9) inches (mm) | Chassis Thickness N/A .250(6.4) Minimum inches (mm) | Request Quote/Sample |
| 03-01-3-40 03-01-3-40/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A 1.04 (26.3) inches (mm) | Dim. - L2 N/A 1.35 (34.3) inches (mm) | (HD) Hole Diameter N/A .312 (7.9) inches (mm) | Chassis Thickness N/A .250(6.4) Minimum inches (mm) | Request Quote/Sample |
| 03-01-4-10 03-01-4-10/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .166 (4.2) inches (mm) | Dim. - L2 N/A .635 (16.1) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .06 (1.6) inches (mm) | Request Quote/Sample |
| 03-01-4-20 03-01-4-20/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .374 (9.5) inches (mm) | Dim. - L2 N/A .844 (21.4) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .06 (1.6) inches (mm) | Request Quote/Sample |
| 03-01-4-30 03-01-4-30/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A .720 (18.3) inches (mm) | Dim. - L2 N/A 1.20 (30.5) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .06 (1.6) inches (mm) | Request Quote/Sample |
| 03-01-4-40 03-01-4-40/Asset/03-01---Wire-Saddle.png | Dim. - L1 N/A 1.04 (26.3) inches (mm) | Dim. - L2 N/A 1.47 (37.3) inches (mm) | (HD) Hole Diameter N/A .187 (4.8) inches (mm) | Chassis Thickness N/A .06 (1.6) inches (mm) | Request Quote/Sample |
