• 40 Series: Micro Wire Saddle on Adhesive Base

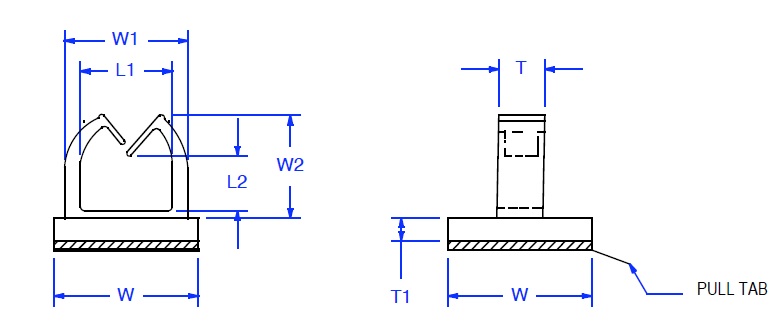

  • 03-40- SKETCH

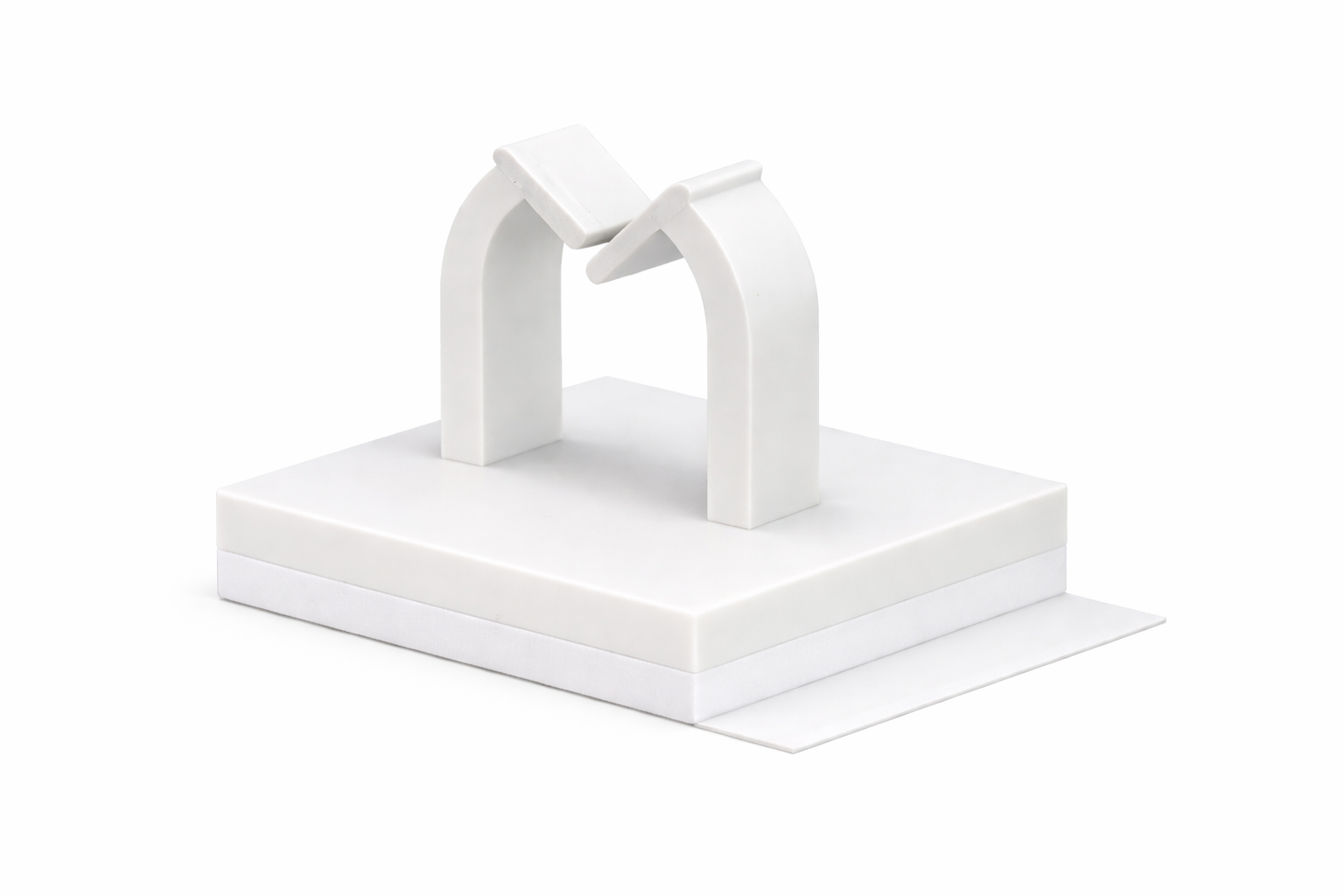

  • Micro Wire Saddle on Adhesive Base
  • Top Load
  • Color: Natural
  • Packaging: 1000/bag
  • Material: Nylon 66 (UL94V-2)
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

W1 Ref

W2 Ref

L1 Ref

L2 Ref

W +/- .015

T Ref

T1 Ref

Request Quote/Sample
N/A .28 (7) inches (mm) N/A .16 (4) inches (mm) N/A .19 (4.8) inches (mm) N/A .05 (1.3) inches (mm) N/A .37 (9.5) inches (mm) N/A .08 (2) inches (mm) N/A .06 (1.6) inches (mm) Request Quote/Sample
N/A .28 (7) inches (mm) N/A .24 (6) inches (mm) N/A .19 (4.8) inches (mm) N/A .13 (3.3) inches (mm) N/A .37 (9.5) inches (mm) N/A .08 (2) inches (mm) N/A .06 (1.6) inches (mm) Request Quote/Sample
N/A .35 (9) inches (mm) N/A .29 (7.3) inches (mm) N/A .26 (6.6) inches (mm) N/A .12 (3) inches (mm) N/A .50 (12.7) inches (mm) N/A .16 (4) inches (mm) N/A .08 (2) inches (mm) Request Quote/Sample
N/A .43 (10.8) inches (mm) N/A .36 (9.2) inches (mm) N/A .32 (8) inches (mm) N/A .19 (4.8) inches (mm) N/A .50 (12.7) inches (mm) N/A .16 (4) inches (mm) N/A .08 (2) inches (mm) Request Quote/Sample
N/A .47 (11.9) inches (mm) N/A .44 (11.2) inches (mm) N/A .36 (9.1) inches (mm) N/A .23 (5.8) inches (mm) N/A .50 (12.7) inches (mm) N/A .16 (4) inches (mm) N/A .08 (2) inches (mm) Request Quote/Sample
N/A .47 (11.9) inches (mm) N/A .51 (13) inches (mm) N/A .36 (9.1) inches (mm) N/A .33 (8.4) inches (mm) N/A .50 (12.7) inches (mm) N/A .16 (4) inches (mm) N/A .08 (2) inches (mm) Request Quote/Sample
