• 12 Series: Wire Harness Clip

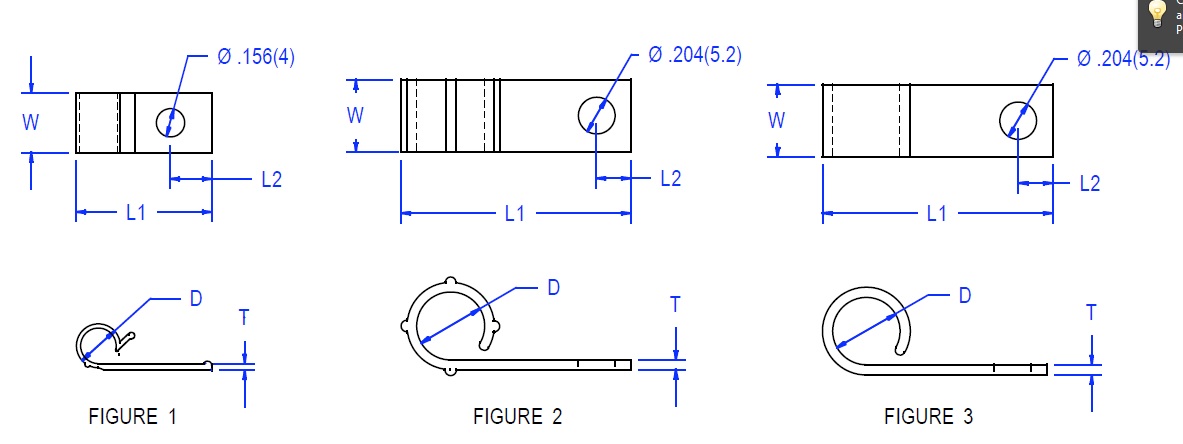

  • 04-12 Sketch Issue 0 2013

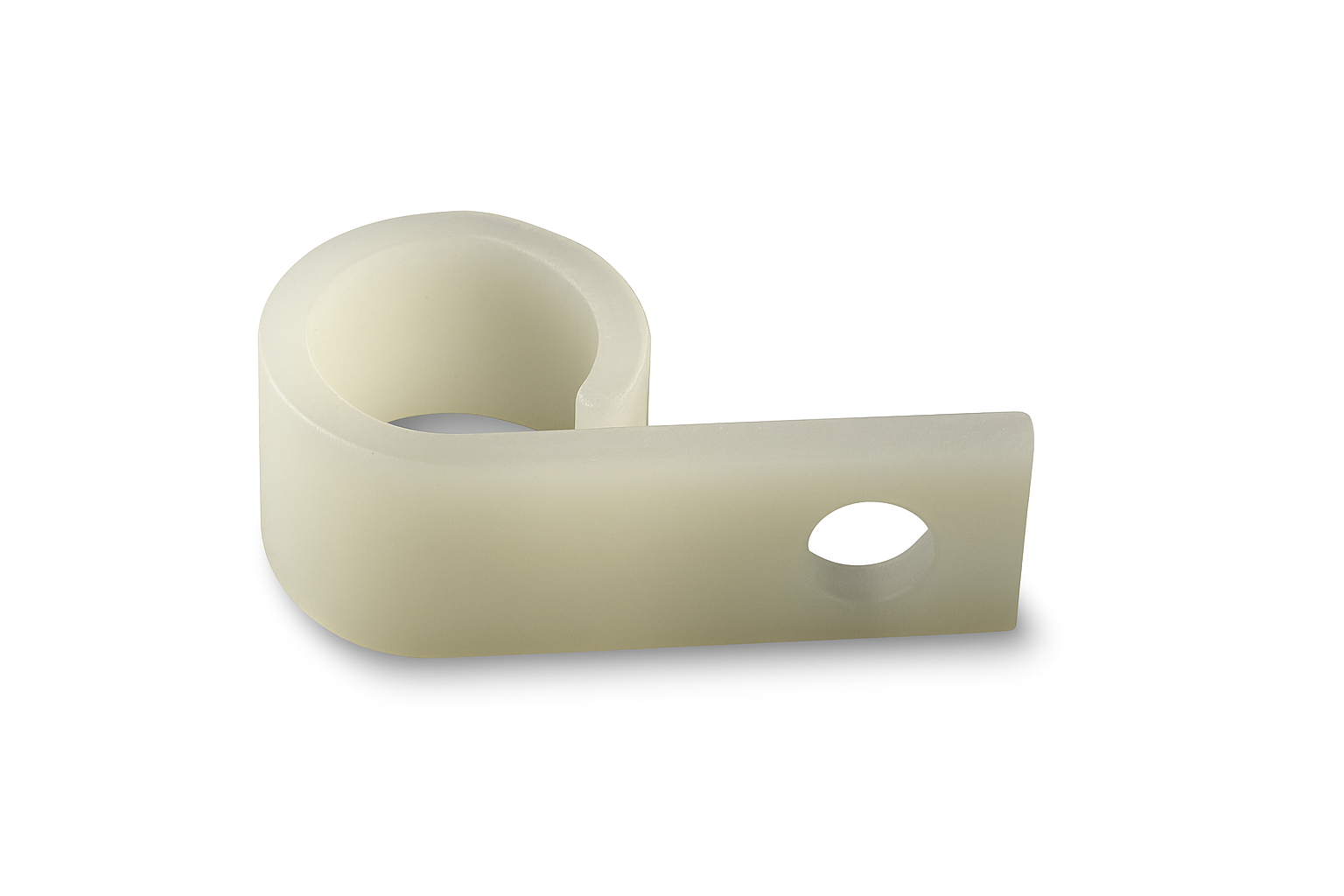

  • Wire harness clip
  • Cables or wires easily installed or removed without removing clamp
  • Color: Natural (Black Available)
  • Packaging: 500/bag (04-12-125: 1000/Bag)
  • Material: Nylon 66 UL94V-2
  • UL File No: E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

(D) Bundle Dia (REF)

(HD) Hole Diameter

L1 REF

L2 REF

Dim. - W

Dim. - T

Request Quote/Sample
N/A .125 (3.2) inches (mm) N/A .156 (4) inches (mm) N/A .75 (19.1) inches (mm) N/A .23 (5.8) inches (mm) N/A .33 (8.4) inches (mm) N/A .05 (1.3) inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) N/A .204 (5.2) inches (mm) N/A .830 (21.1) inches (mm) N/A .250 (6.4) inches (mm) N/A .400 (10.2) inches (mm) N/A .040 (1.0) inches (mm) Request Quote/Sample
N/A .375 (9.5) inches (mm) N/A .204 (5.2) inches (mm) N/A .830 (21.1) inches (mm) N/A .190 (4.8) inches (mm) N/A .400 (10.2) inches (mm) N/A .055 (1.3) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) N/A .204 (5.2) inches (mm) N/A 1.156 (29.4) inches (mm) N/A .250 (6.4) inches (mm) N/A .400 (10.2) inches (mm) N/A .070 (1.8) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) N/A .204 (5.2) inches (mm) N/A 1.125 (28.6) inches (mm) N/A .190 (4.8) inches (mm) N/A .500 (12.7) inches (mm) N/A .080 (2.0) inches (mm) Request Quote/Sample
N/A .750 (19.1) inches (mm) N/A .204 (5.2) inches (mm) N/A 1.281 (32.5) inches (mm) N/A .190 (4.8) inches (mm) N/A .500 (12.7) inches (mm) N/A .080 (2.0) inches (mm) Request Quote/Sample
N/A 1.00 (25.4) inches (mm) N/A .204 (5.2) inches (mm) N/A 1.531 (38.9) inches (mm) N/A .190 (4.8) inches (mm) N/A .500 (12.7) inches (mm) N/A .090 (2.4) inches (mm) Request Quote/Sample
N/A 1.50 (38.1) inches (mm) N/A .204 (5.2) inches (mm) N/A 2.125 (53.9) inches (mm) N/A .190 (4.8) inches (mm) N/A .500 (12.7) inches (mm) N/A .100 (2.5) inches (mm) Request Quote/Sample
