03-13-10

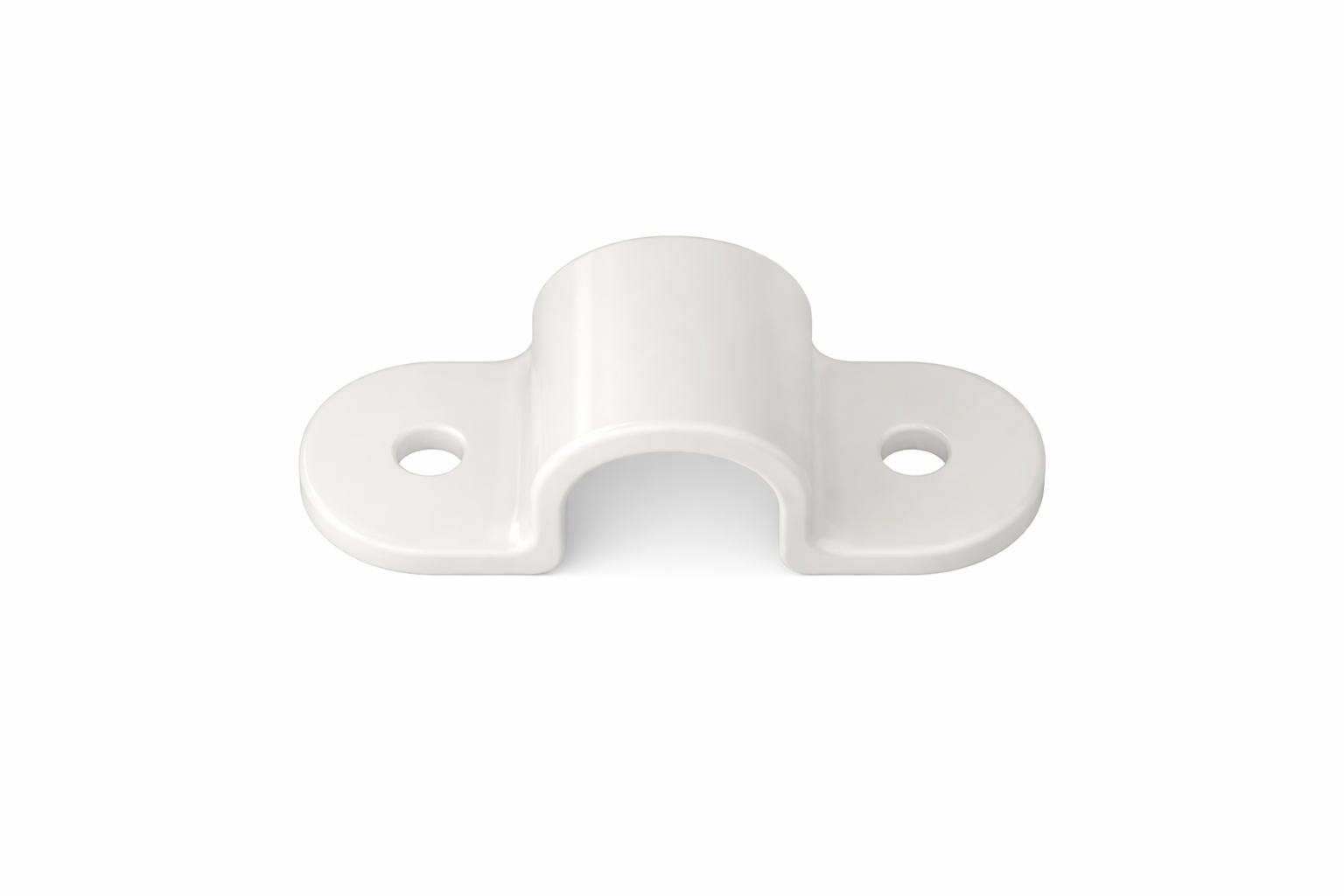

03-13-10/Asset/03-13-U-CLIP.png
|

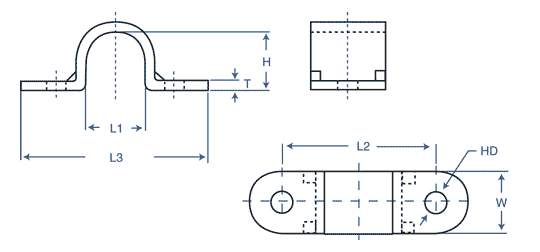

Hole Dia. - HD
N/A .158 (4.0) inches (mm)
|
Dim. - L1
N/A .472 (12.0) inches (mm)
|
Dim. - L2
N/A .945 (24.0) inches (mm)
|
Dim. - L3
N/A 1.50 (38.0) inches (mm)
|
Dim. - W
N/A .591 (15.0) inches (mm)
|
Dim. - H
N/A .472 (12.0) inches (mm)
|
Dim. - T
N/A .079 (2.0) inches (mm)
|
Request Quote/Sample
|
|
03-13-20
03-13-20/Asset/03-13-U-CLIP.png
|
Hole Dia. - HD
N/A .197 (5.0) inches (mm)
|
Dim. - L1
N/A .630 (16.0) inches (mm)
|
Dim. - L2
N/A 1.42 (36.0) inches (mm)
|
Dim. - L3
N/A 2.05 (52.0) inches (mm)
|
Dim. - W
N/A .591 (15.0) inches (mm)
|
Dim. - H
N/A .630 (16.0) inches (mm)
|
Dim. - T
N/A .079 (2.0) inches (mm)
|
Request Quote/Sample
|
|
03-13-30
03-13-30/Asset/03-13-U-CLIP.png
|
Hole Dia. - HD
N/A .197 (5.0) inches (mm)
|
Dim. - L1
N/A .787 (18.0) inches (mm)
|
Dim. - L2
N/A 1.50 (38.0) inches (mm)
|
Dim. - L3
N/A 2.28 (58.0) inches (mm)
|
Dim. - W
N/A .787 (18.0) inches (mm)
|
Dim. - H
N/A .787 (18.0) inches (mm)
|
Dim. - T
N/A .079 (2.0) inches (mm)
|
Request Quote/Sample
|
|
03-13-40
03-13-40/Asset/03-13-U-CLIP.png
|
Hole Dia. - HD
N/A .197 (5.0) inches (mm)
|
Dim. - L1
N/A .984 (25.0) inches (mm)
|
Dim. - L2
N/A 1.97 (50.0) inches (mm)
|
Dim. - L3
N/A 2.76 (70.0) inches (mm)
|
Dim. - W
N/A .787 (18.0) inches (mm)
|
Dim. - H
N/A 1.10 (28.0) inches (mm)
|
Dim. - T
N/A .098 (2.5) inches (mm)
|
Request Quote/Sample
|
