• Rod Guides
  • Rod Guides - 2

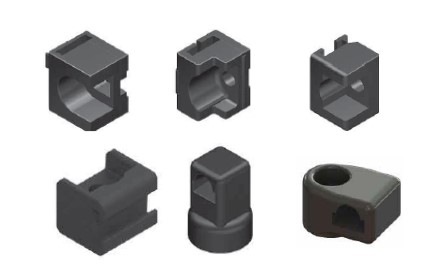

To guide flat rods parallel to a door and add extra security to door latching and locking.
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Material

Color

Version

Stud Size

Request Quote/Sample

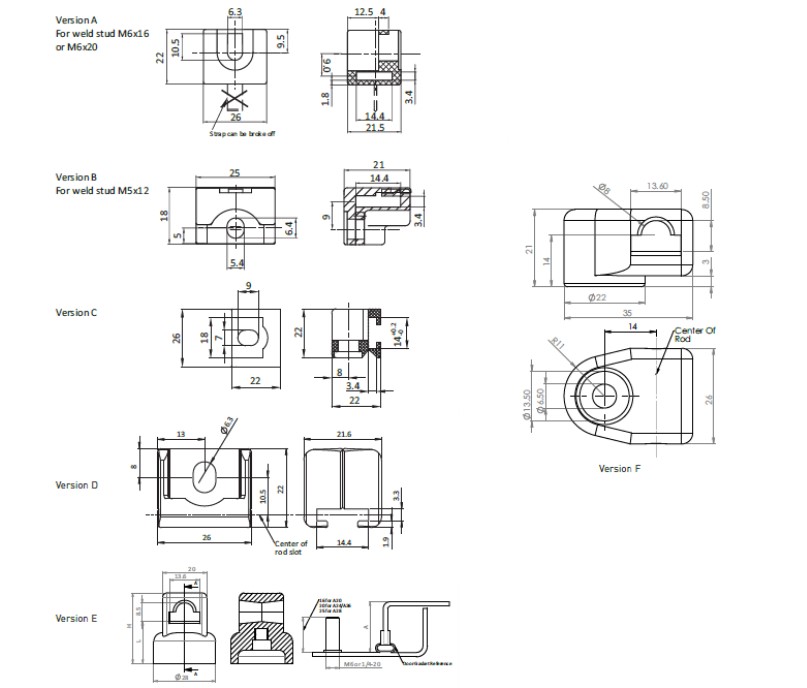

N/A M6 x 16 Stud Size A Version Rod Guide N/A Polyamide (PA6 30) N/A Black N/A A N/A M6 x 16 Request Quote/Sample
N/A M5 x 16 Stud Size B Version Rod Guide N/A Polyamide (PA6 30) N/A Black N/A B N/A M5 x 16 Request Quote/Sample
N/A M6 x 16 Stud Size C Version Rod Guide N/A Polyamide (PA6 30) N/A Black N/A C N/A M6 x 16 Request Quote/Sample
N/A M6 x 16 Stud Size D Version Rod Guide N/A Die-Cast Zinc N/A Black N/A D N/A M6 x 16 Request Quote/Sample
N/A M6 x 16 Stud Size and 32 Millimeter (mm) Dimension H E Version Rod Guide N/A Polyamide (PA6 30) N/A Black N/A E N/A M6 x 16 Request Quote/Sample
N/A 1/4 - 20 UNC Stud Size and 32 Millimeter (mm) Dimension H E Version Rod Guide N/A Polyamide (PA6 30) N/A Black N/A E N/A 1/4 - 20 UNC Request Quote/Sample
N/A M6 x 16 Stud Size and 38 Millimeter (mm) Dimension H E Version Rod Guide N/A Polyamide (PA6 30) N/A Black N/A E N/A M6 x 16 Request Quote/Sample
N/A M6 x 16 Stud Size and 44 Millimeter (mm) Dimension H E Version Rod Guide N/A Polyamide (PA6 30) N/A Black N/A E N/A M6 x 16 Request Quote/Sample
N/A M6 Stud Size F Version Rod Guide N/A Polyamide (PA6 30) N/A Black N/A F N/A M6 Request Quote/Sample
