00 Series: 2-piece Foot / Bumper (Push-Screw Mount - Fast Foot)
Rivet/Screw Mount

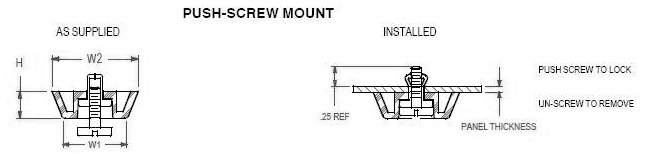

- Mounting Foot (Push Screw Mount)
- Two-piece part supplied pre-assembled
- Reduces vibration and movement of appliances and equipment
- Install easily by hand and remove with tool/screwdriver
- Color: Black
- Packaging: 200/bag
- Material(Body): TPR (Santoprene) UL Rated: HB UL File# E80017
- Material(Rivet): Nylon 6 (UL94V-2) UL File# E41871
- RoHS Compliant
- Temp Range: -58 to 194 F (-50 to 90 C)
Item # |
Mounting Hole Dia. |
H (Ref) |
W1 (Ref) |
W2 (Ref) |
Panel Thickness Range |
Request Quote/Sample |
|---|---|---|---|---|---|---|
| 05-00-001 05-00-001/Asset/05-00(Screw) Prim (.jpg | Mounting Hole Dia. N/A .197-.200 (5-5.1) inches (mm) | H (Ref) N/A .55 (14) inches (mm) | W1 (Ref) N/A .79 (20) inches (mm) | W2 (Ref) N/A .95 (24) inches (mm) | Panel Thickness Range N/A .039-.091 (1.0-2.3) inches (mm) | Request Quote/Sample |
| 05-00-004 05-00-004/Asset/05-00(Screw) Prim (.jpg | Mounting Hole Dia. N/A .197-.200 (5-5.1) inches (mm) | H (Ref) N/A .39 (10) inches (mm) | W1 (Ref) N/A .71 (18) inches (mm) | W2 (Ref) N/A .79 (20) inches (mm) | Panel Thickness Range N/A .039-.091 (1.0-2.3) inches (mm) | Request Quote/Sample |
| 05-00-015 05-00-015/Asset/05-00(Screw) Prim (.jpg | Mounting Hole Dia. N/A .197-.200 (5-5.1) inches (mm) | H (Ref) N/A .59 (15) inches (mm) | W1 (Ref) N/A 1.10 (27.9) inches (mm) | W2 (Ref) N/A 1.18 (29.9) inches (mm) | Panel Thickness Range N/A .039-.091 (1.0-2.3) inches (mm) | Request Quote/Sample |
