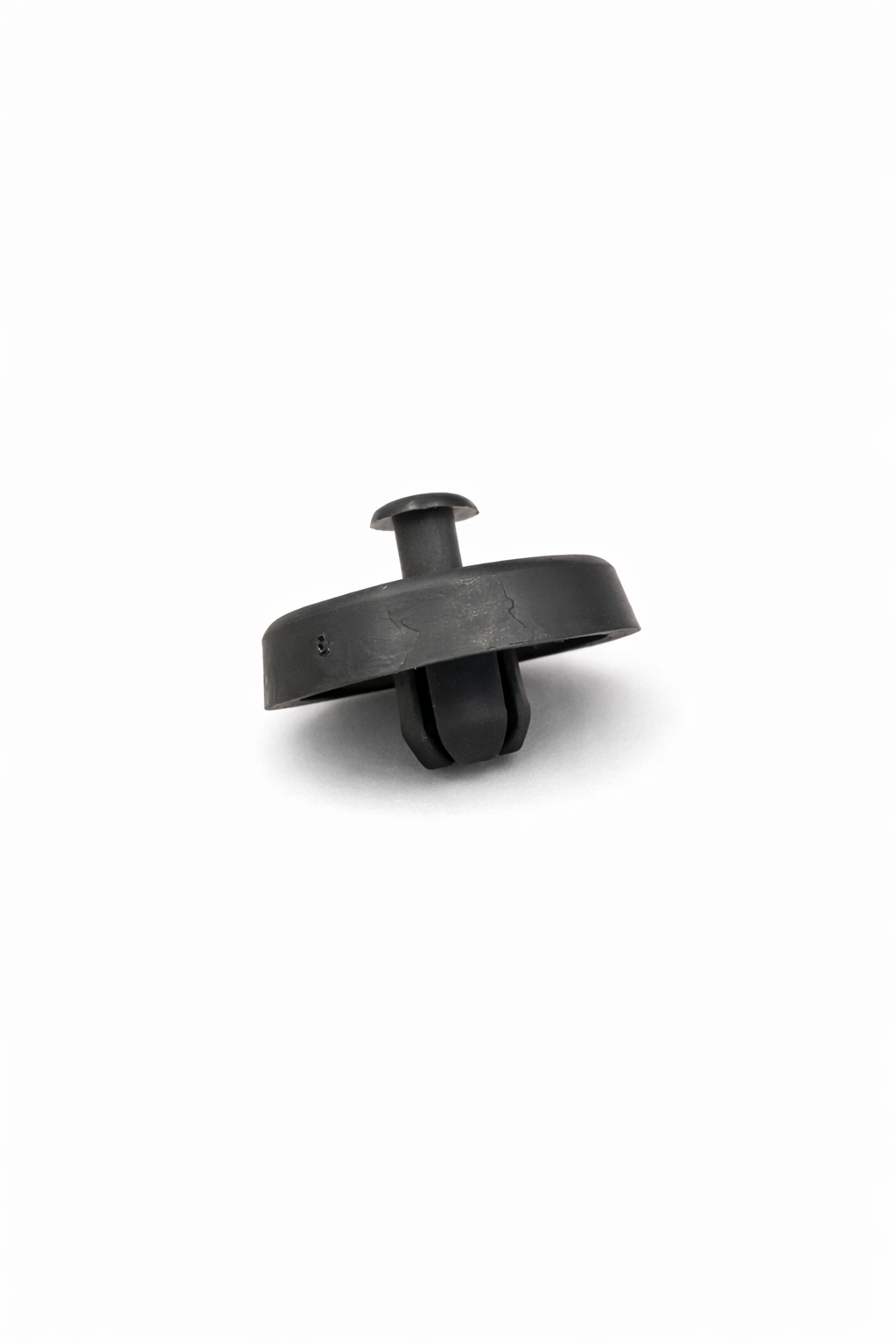

• 01 Series: 2-piece Foot / Bumper (rivet mount)
  • 05 - 01 Series - Dimensions
  • Two-piece part supplied pre-assembled
  • Reduces vibration and movement of appliances and equipment
  • Install easily by hand and remove with tool/screwdriver
  • Color: Black
  • Packaging: 200/bag
  • Material: Santoprene - body, Polypropylene - pin
  • UL file No(Body): E80017
  • RoHS Compliant
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - W1

Dim. - W2

Dim. - H

T - Board Thickness

Mounting Hole Dia.

Request Quote/Sample
N/A .709 (18.0) inches (mm) N/A .787 (20.0) inches (mm) N/A .394 (10.0) inches (mm) N/A .031 - .059 (.8 - 1.5) inches (mm) N/A .303 (7.7) inches (mm) Request Quote/Sample
N/A .787 (20.0) inches (mm) N/A .827 (21.0) inches (mm) N/A .236 (6.0) inches (mm) N/A .197 - .315 (5.0 - 8.0) inches (mm) N/A .303 (7.7) inches (mm) Request Quote/Sample
N/A .906 (23.0) inches (mm) N/A .984 (25.0) inches (mm) N/A .197 (5.0) inches (mm) N/A .031 - .059 (.8 - 1.5) inches (mm) N/A .299 (7.6) inches (mm) Request Quote/Sample
N/A .709 (18.0) inches (mm) N/A .787 (20.0) inches (mm) N/A .591 (15.0) inches (mm) N/A .031 - .059 (.8 - 1.5) inches (mm) N/A .303 (7.7) inches (mm) Request Quote/Sample
