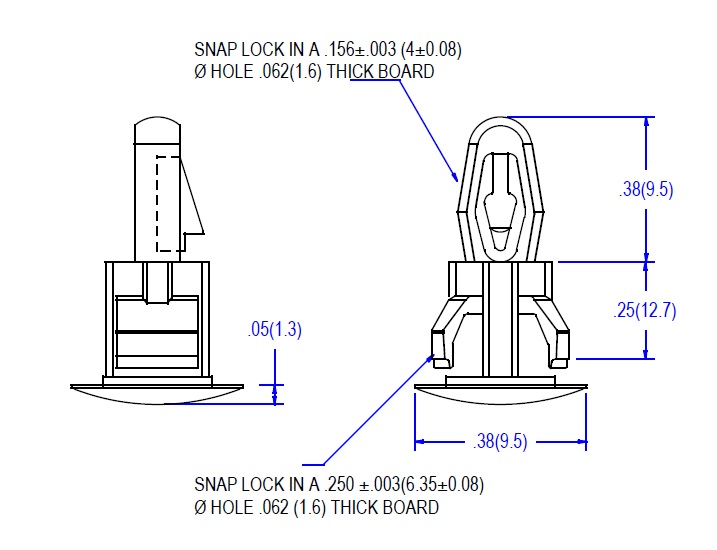

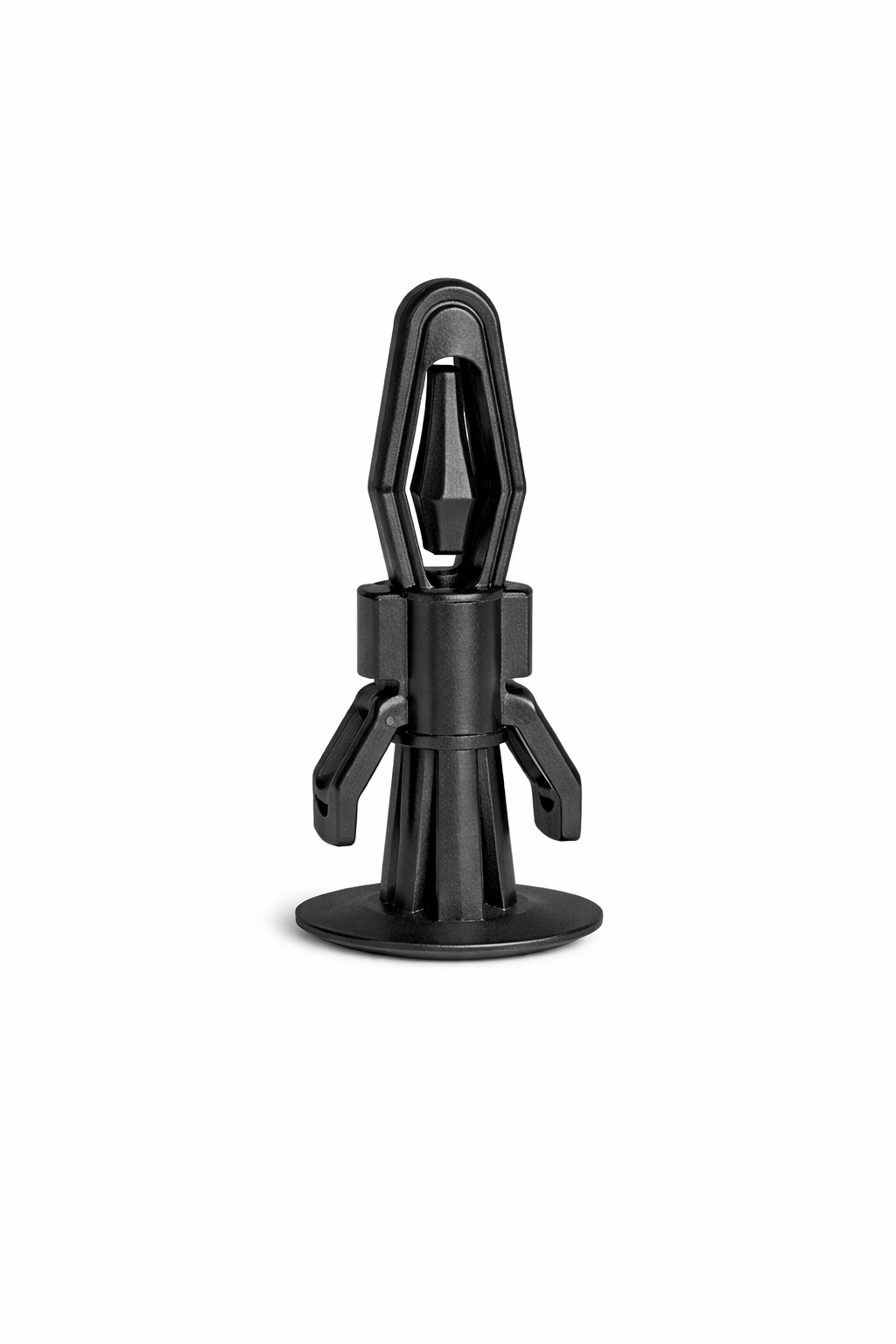

000-008 Series: Reverse Support x .250 Chassis Hole(.062 Chassis Thick)
Reverse/Cupped Chassis Mount
- Reverse locking board support(.250 Spacing Ht)
- .156 PCB Hole x .250 Chassis Hole
- For use with .062 Panel Thickness(Both Ends)
- Color: Natural/Black
- Packaging: 1000/Bag
- Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
- UL File#: E70062
- ASTM: D 4066 PA111
- RoHS Compliant
- Temp Range: -40 to 185 F (-40- to 85 C)
