• 86 Series: .157 Board Hole x .213 Chassis Hole

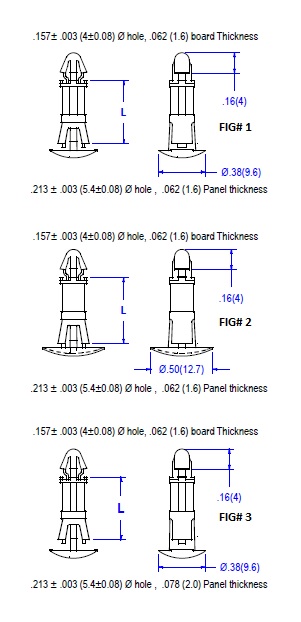

  • 01-86 Sketch

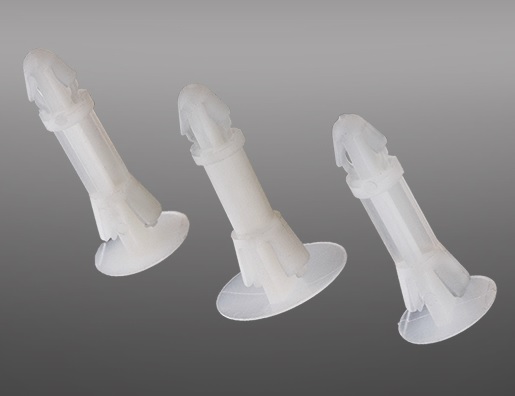

  • Reverse locking board support (PCB Support)
  • .063 PCB Thickness x .063-.078 Chassis Thickness
  • Metric Spacing Lengths
  • Color: Natural
  • Packaging: 1000/Bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File#: E41938
  • ASTM: D 4066 PA111
  • RoHS Compliant
  • Temp Range: -40 to 185 F (-40- to 85 C)
1 - 14 of 14 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

FIG#

L +/- .015

Request Quote/Sample
N/A 1 N/A .236 (6) inches (mm) Request Quote/Sample
N/A 1 N/A .315 (8) inches (mm) Request Quote/Sample
N/A 1 N/A .393 (10) inches (mm) Request Quote/Sample
N/A 1 N/A .472 (12) inches (mm) Request Quote/Sample
N/A 1 N/A .552 (14) inches (mm) Request Quote/Sample
N/A 2 N/A .315 (8) inches (mm) Request Quote/Sample
N/A 2 N/A .393 (10) inches (mm) Request Quote/Sample
N/A 2 N/A .472 (12) inches (mm) Request Quote/Sample
N/A 2 N/A .552 (14) inches (mm) Request Quote/Sample
N/A 3 N/A .236 (6) inches (mm) Request Quote/Sample
N/A 3 N/A .315 (8) inches (mm) Request Quote/Sample
N/A 3 N/A .393 (10) inches (mm) Request Quote/Sample
N/A 3 N/A .472 (12) inches (mm) Request Quote/Sample
N/A 3 N/A .552 (14) inches (mm) Request Quote/Sample
