• 62 Series: .156 Board Hole x .250 Chassis Hole

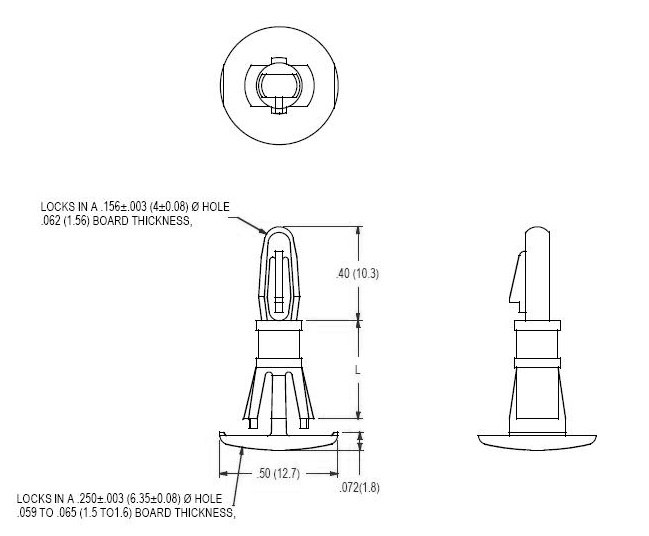

  • 01-62 Dimensions
  • Reverse locking board support (PCB Support)
  • .063 PCB Thickness x .063 Chassis Thickness
  • .250 Chassis Hole
  • Color: Natural
  • Packaging: 1000/Bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File#: E41938
  • ASTM: D 4066 PA111
  • RoHS Compliant
  • Temp Range: -40 to 185 F (-40- to 85 C)
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

L +/- .015

Request Quote/Sample
N/A .250 (6.4) inches (mm) Request Quote/Sample
N/A .375 (9.5) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) Request Quote/Sample
