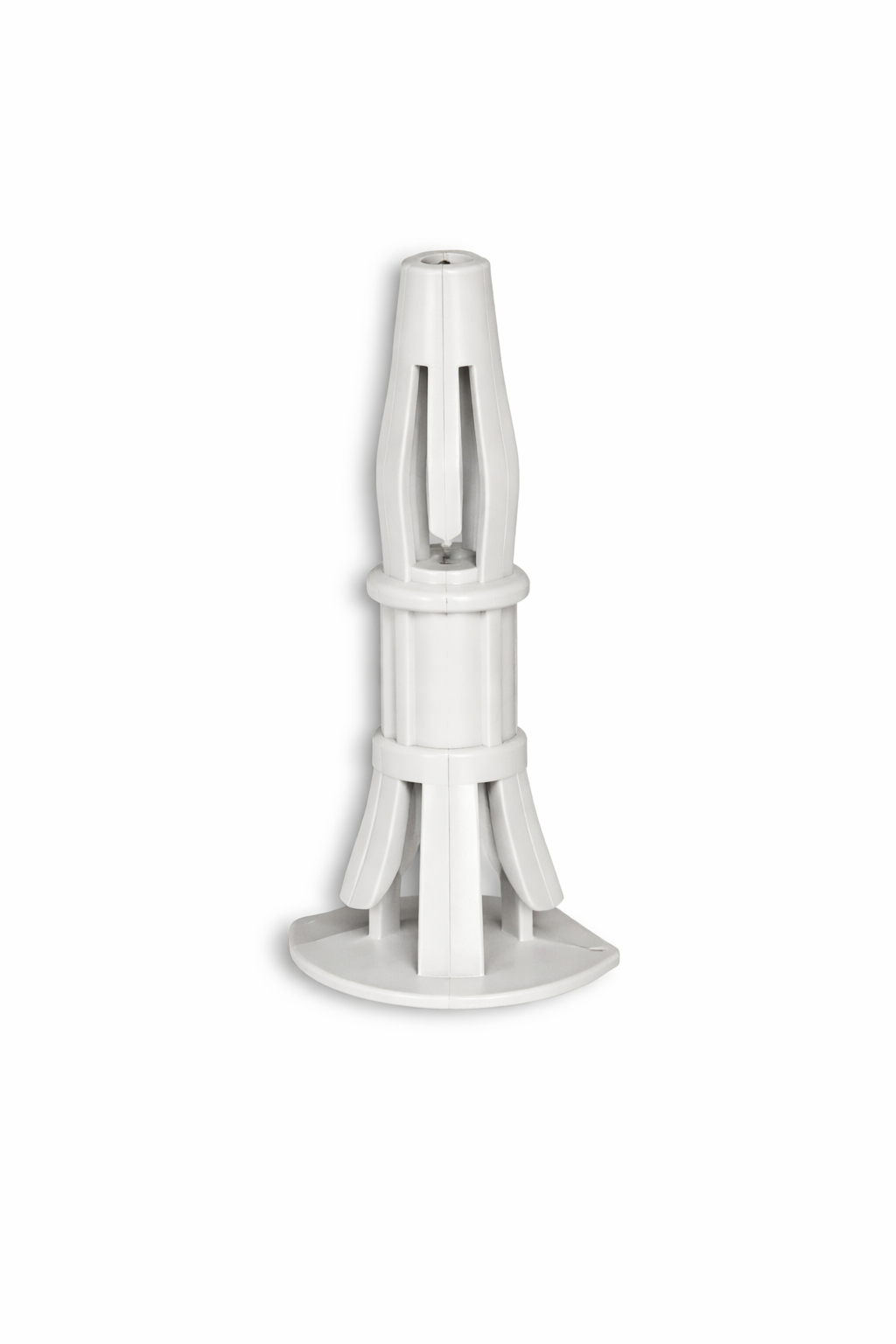

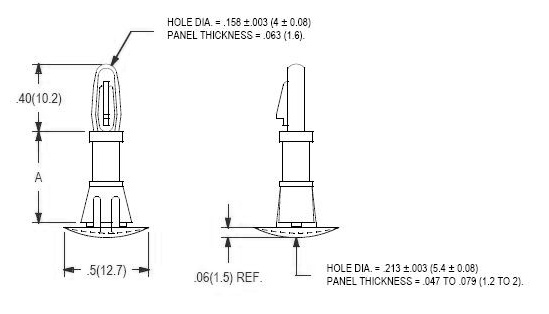

59 Series: .158 Board Hole x .213 Chassis Hole
Reverse/Cupped Chassis Mount
- Reverse locking board support (PCB Support)
- .063 PCB Thickness x .047 to .079 Chassis Thickness
- Color: Natural
- Packaging: 1000/Bag
- Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
- UL File#: E41938
- ASTM: D 4066 PA111
- RoHS Compliant
- Temp Range: -40 to 185 F (-40- to 85 C)
