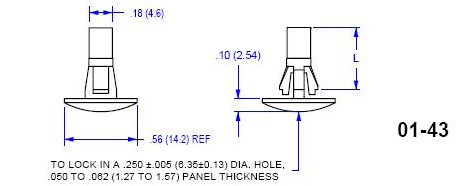

• 43 Series: Support Post x .250 Chassis Hole(.05-.062 Chassis)
  • 52232

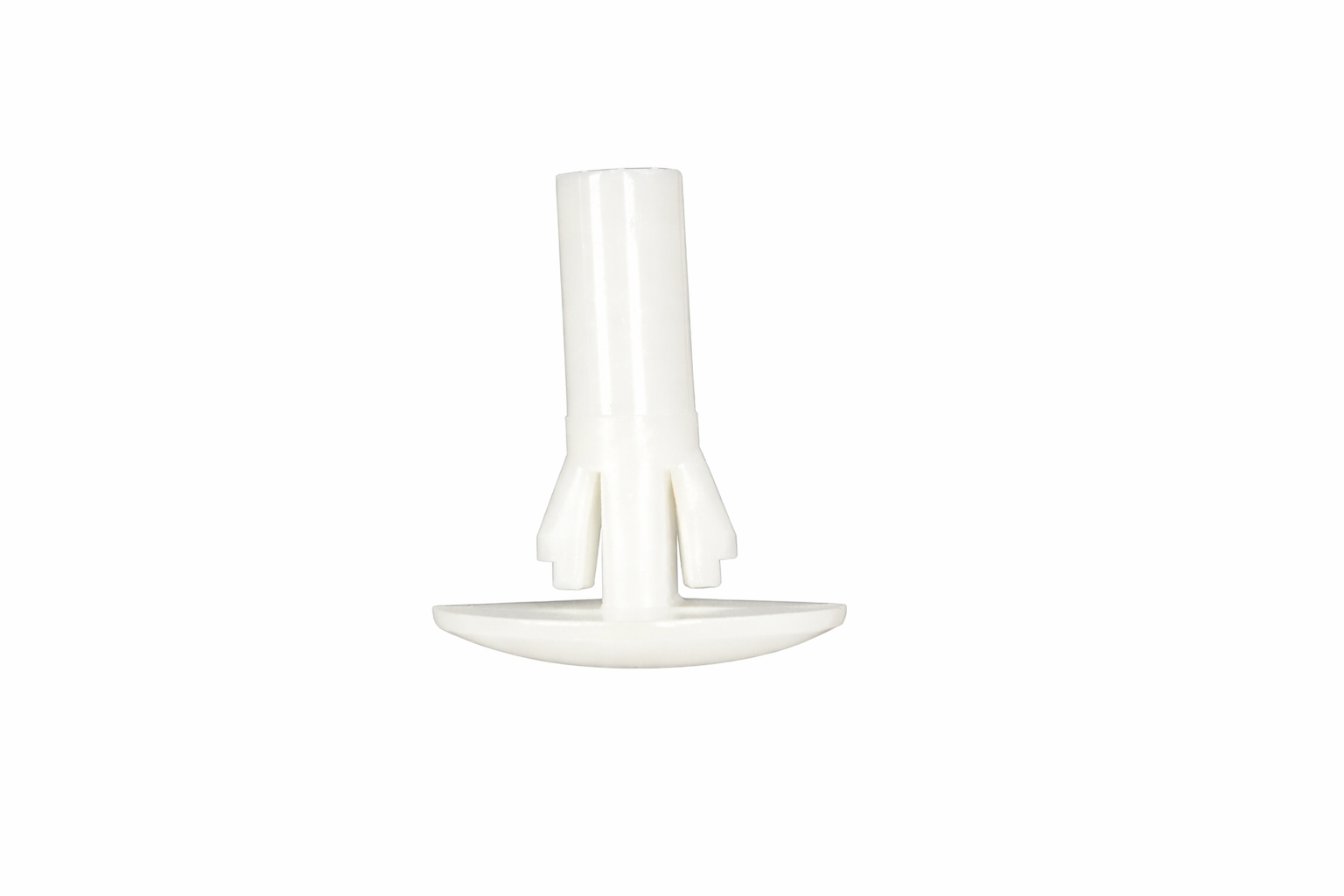

  • Reverse locking board support (PCB Support)
  • For use with .05 to .062 Chassis Thickness
  • Support Post x .250 Chassis Hole
  • Color: Natural
  • Packaging: 1000/Bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File#: E70062
  • ASTM: D 4066 PA111
  • RoHS Compliant
  • Temp Range: -40 to 185 F (-40- to 85 C)
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

L +/- .015

Request Quote/Sample
N/A .242 (6.15) inches (mm) Request Quote/Sample
N/A .367 (9.32) inches (mm) Request Quote/Sample
N/A .492 (12.5) inches (mm) Request Quote/Sample
N/A .617 (15.67) inches (mm) Request Quote/Sample
N/A .742 (18.85) inches (mm) Request Quote/Sample
N/A .867 (22.02) inches (mm) Request Quote/Sample
N/A .992 (25.2) inches (mm) Request Quote/Sample
N/A 1.12 (28.45) inches (mm) Request Quote/Sample
