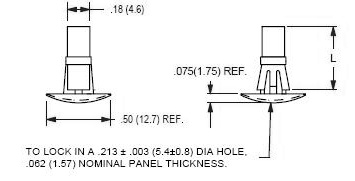

• 40 Series: Support Post x .213 Chassis Hole(.04-.062 Chassis)
  • 51136
  • Reverse locking board support (PCB Support)
  • For use with .04 to .062 Chassis Thickness
  • Support Post x .213 Chassis Hole
  • Color: Natural
  • Packaging: 1000/Bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File#: E70062
  • ASTM: D 4066 PA111
  • RoHS Compliant
  • Temp Range: -40 to 185 F (-40- to 85 C)
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

L +/- .015

Request Quote/Sample
N/A .256 (6.5) inches (mm) Request Quote/Sample
N/A .380 (9.6) inches (mm) Request Quote/Sample
N/A .506 (12.8) inches (mm) Request Quote/Sample
N/A .630 (16) inches (mm) Request Quote/Sample
N/A .754 (19.2) inches (mm) Request Quote/Sample
N/A .816 (20.7) inches (mm) Request Quote/Sample
N/A 1.00 (25.4) inches (mm) Request Quote/Sample
