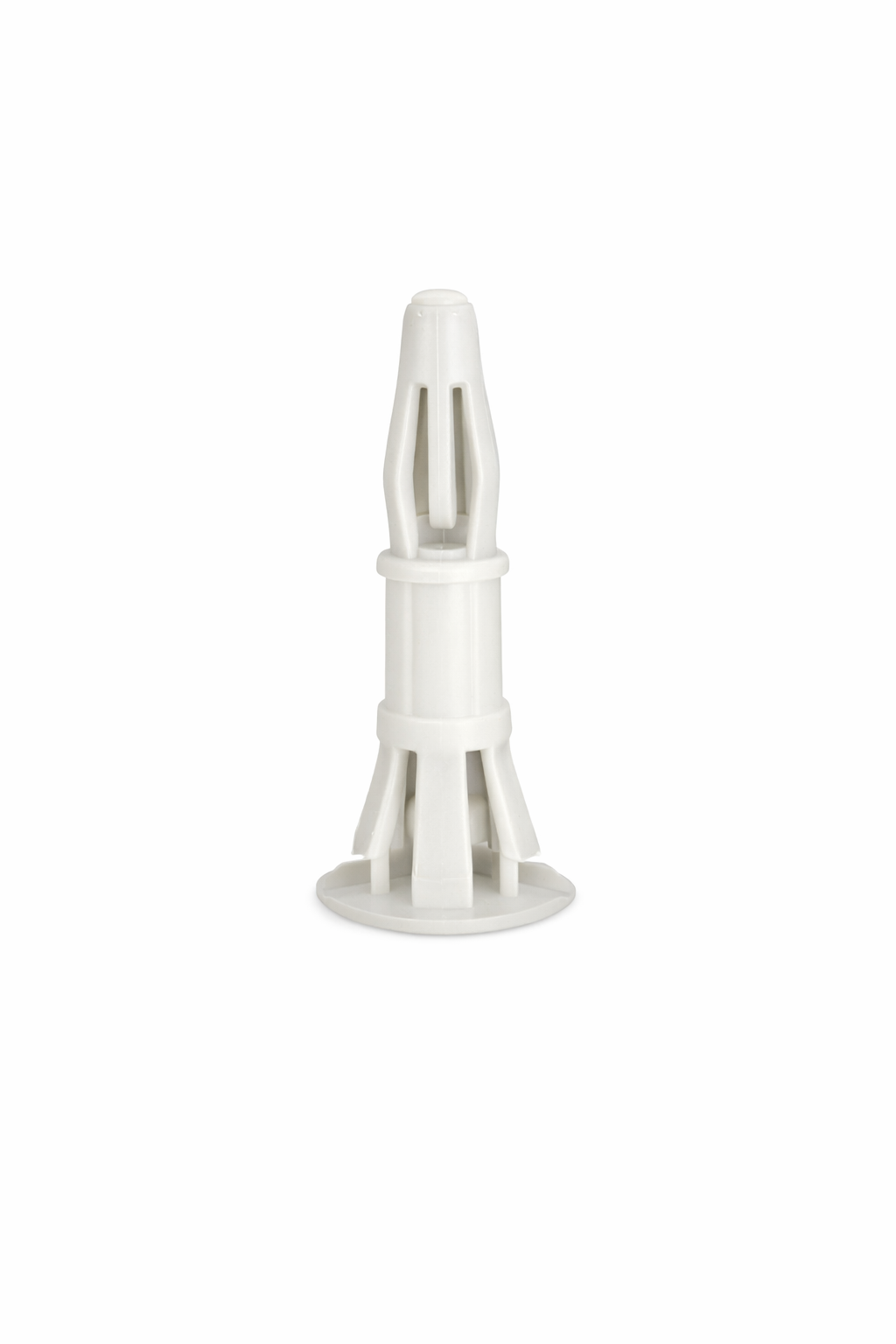

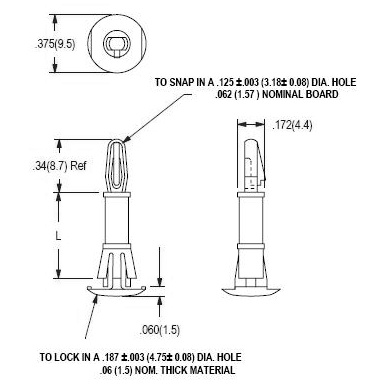

• 26 Series: .125 Board Hole x .187 Chassis Hole
  • 46023
  • Reverse locking board support
  • Installs easily; insert from chassis underside
  • Color: Natural
  • Packaging: 1000/Bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File#: E41938
  • ASTM: D 4066 PA111
  • RoHS Compliant
  • Temp Range: -40 to 185 F (-40- to 85 C)
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

"L"

Request Quote/Sample
N/A .250 (6.4) inches (mm) Request Quote/Sample
N/A .312 (7.9) inches (mm) Request Quote/Sample
N/A .375 (9.5) inches (mm) Request Quote/Sample
N/A .437 (11.1) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) Request Quote/Sample
N/A .563 (14.3) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) Request Quote/Sample
