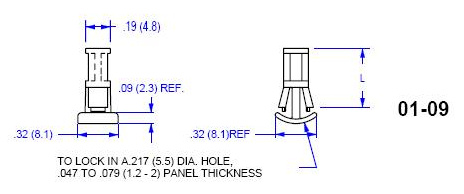

• 09 Series: Flat Board Support x .217 Chassis Hole
  • 46266

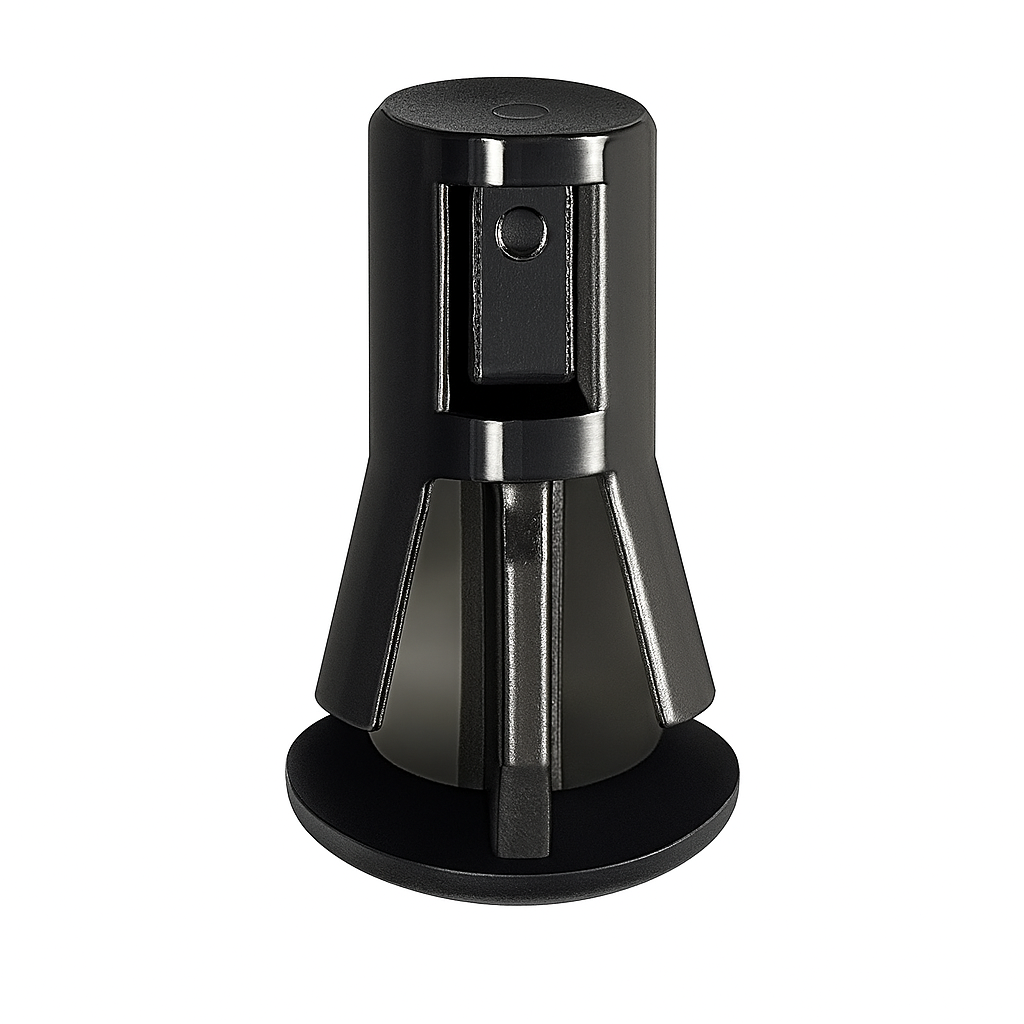

  • Reverse PCB Post
  • For Chassis Thickness Range: .047-.079
  • Installs easily; insert from chassis underside
  • Locks securely yet is releasable
  • Minimal protrusion under chassis
  • Color: Black
  • Packaging: 500/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No:  E53664
  • ASTM: D 4066, PA0113
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 16 of 16 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Material Code

Dim. - L

Chassis Thickness

Request Quote/Sample
N/A UL94V-2 N/A .197 (5.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .236 (6.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .320 (8.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .394 (10.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .472 (12.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .551 (14.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .630 (16.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .709 (18.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .197 (5.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .236 (6.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .320 (8.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .394 (10.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .472 (12.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .551 (14.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .630 (16.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A .709 (18.0) inches (mm) N/A .047 - .079 (1.2 - 2.0) inches (mm) Request Quote/Sample
