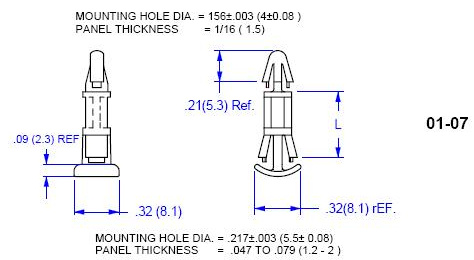

07 Series: .157 Board Hole x .217 Chassis Hole

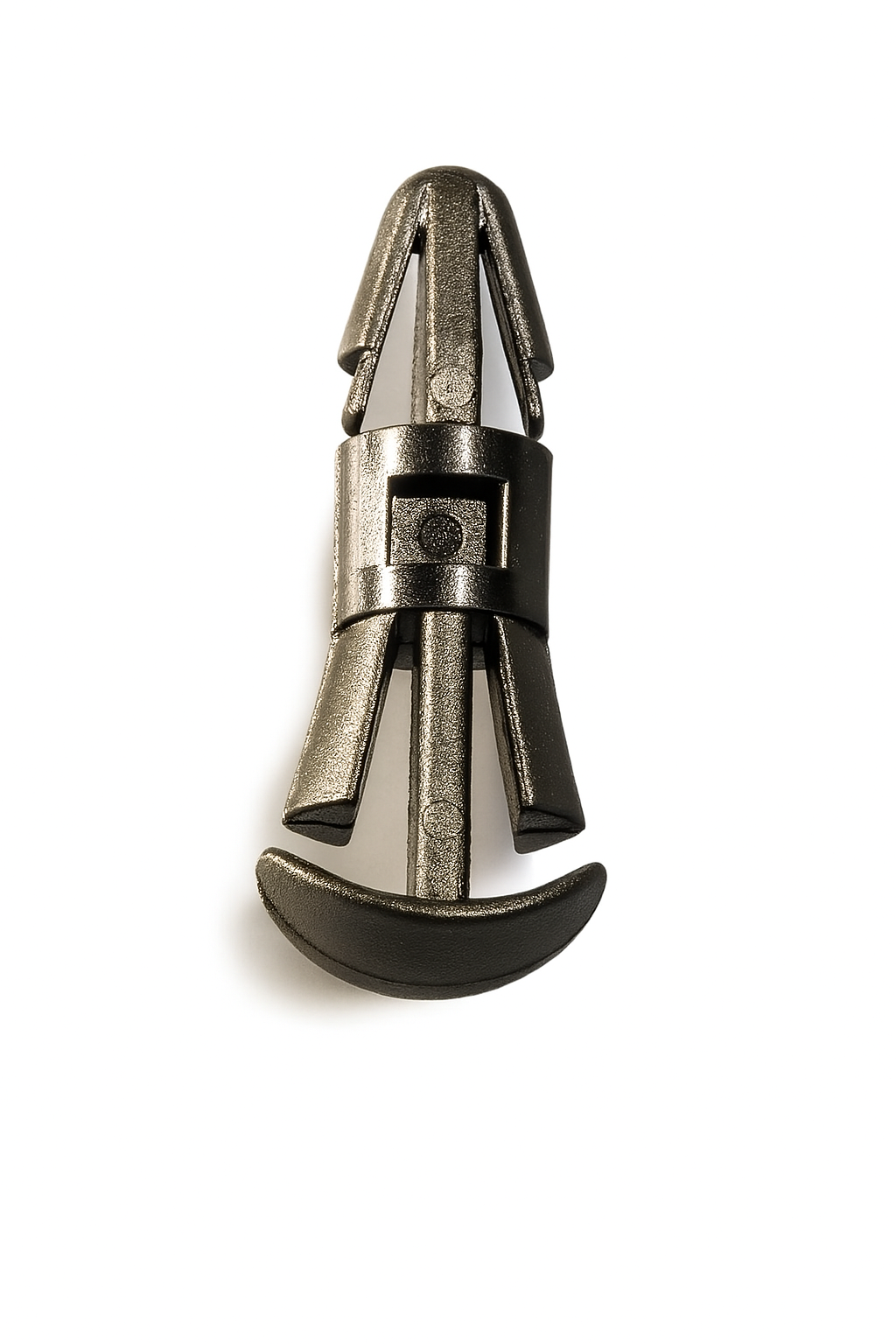

Reverse/Cupped Chassis Mount
.jpg "46204")
.jpg "46204")
- Reverse PCB Support
- For Chassis Thickness Range: .047-.079
- Installs easily; insert from chassis underside
- Minimal board protrusion
- Locks securely yet releasable by hand
- Color: Black
- Packaging: 500/bag
- Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
- UL File No: E53664
- ASTM D 4066, PA111
- RoHS Compliant
- Temp Range: -40 to 185F (-40 to 85C)
Item # |
Material Code |
Dim. - L +/-.015 |
Board Thickness |
Chassis Thickness |
Request Quote/Sample |
|---|---|---|---|---|---|
| 01-07-50 01-07-50/Asset/01-07-series.png | Material Code N/A UL94V-2 | Dim. - L +/-.015 N/A .197 (5.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-60 01-07-60/Asset/01-07-series.png | Material Code N/A UL94V-2 | Dim. - L +/-.015 N/A .236 (6.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-80 01-07-80/Asset/01-07-series.png | Material Code N/A UL94V-2 | Dim. - L +/-.015 N/A .320 (8.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-100 01-07-100/Asset/01-07-series.png | Material Code N/A UL94V-2 | Dim. - L +/-.015 N/A .394 (10.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-120 01-07-120/Asset/01-07-series.png | Material Code N/A UL94V-2 | Dim. - L +/-.015 N/A .472 (12.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-140 01-07-140/Asset/01-07-series.png | Material Code N/A UL94V-2 | Dim. - L +/-.015 N/A .551 (14.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-160 01-07-160/Asset/01-07-series.png | Material Code N/A UL94V-2 | Dim. - L +/-.015 N/A .630 (16.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-180 01-07-180/Asset/01-07-series.png | Material Code N/A UL94V-2 | Dim. - L +/-.015 N/A .709 (18.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-50X 01-07-50X/Asset/01-07-series.png | Material Code N/A UL94V-0 | Dim. - L +/-.015 N/A .197 (5.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-60X 01-07-60X/Asset/01-07-series.png | Material Code N/A UL94V-0 | Dim. - L +/-.015 N/A .236 (6.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-80X 01-07-80X/Asset/01-07-series.png | Material Code N/A UL94V-0 | Dim. - L +/-.015 N/A .320 (8.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-100X 01-07-100X/Asset/01-07-series.png | Material Code N/A UL94V-0 | Dim. - L +/-.015 N/A .394 (10.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-120X 01-07-120X/Asset/01-07-series.png | Material Code N/A UL94V-0 | Dim. - L +/-.015 N/A .472 (12.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-140X 01-07-140X/Asset/01-07-series.png | Material Code N/A UL94V-0 | Dim. - L +/-.015 N/A .551 (14.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-160X 01-07-160X/Asset/01-07-series.png | Material Code N/A UL94V-0 | Dim. - L +/-.015 N/A .630 (16.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
| 01-07-180X 01-07-180X/Asset/01-07-series.png | Material Code N/A UL94V-0 | Dim. - L +/-.015 N/A .709 (18.0) inches (mm) | Board Thickness N/A .063 (1.6) inches (mm) | Chassis Thickness N/A .047 - .079 (1.2 - 2.0) inches (mm) | Request Quote/Sample |
