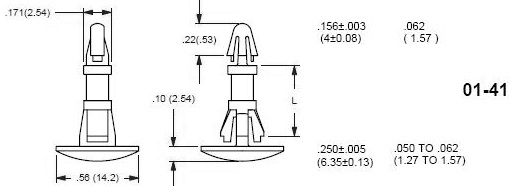

• 41 Series: .156 Board Hole(.062 Panel) x .250 Chassis Hole(.05-.062 Chassis)
  • 51502

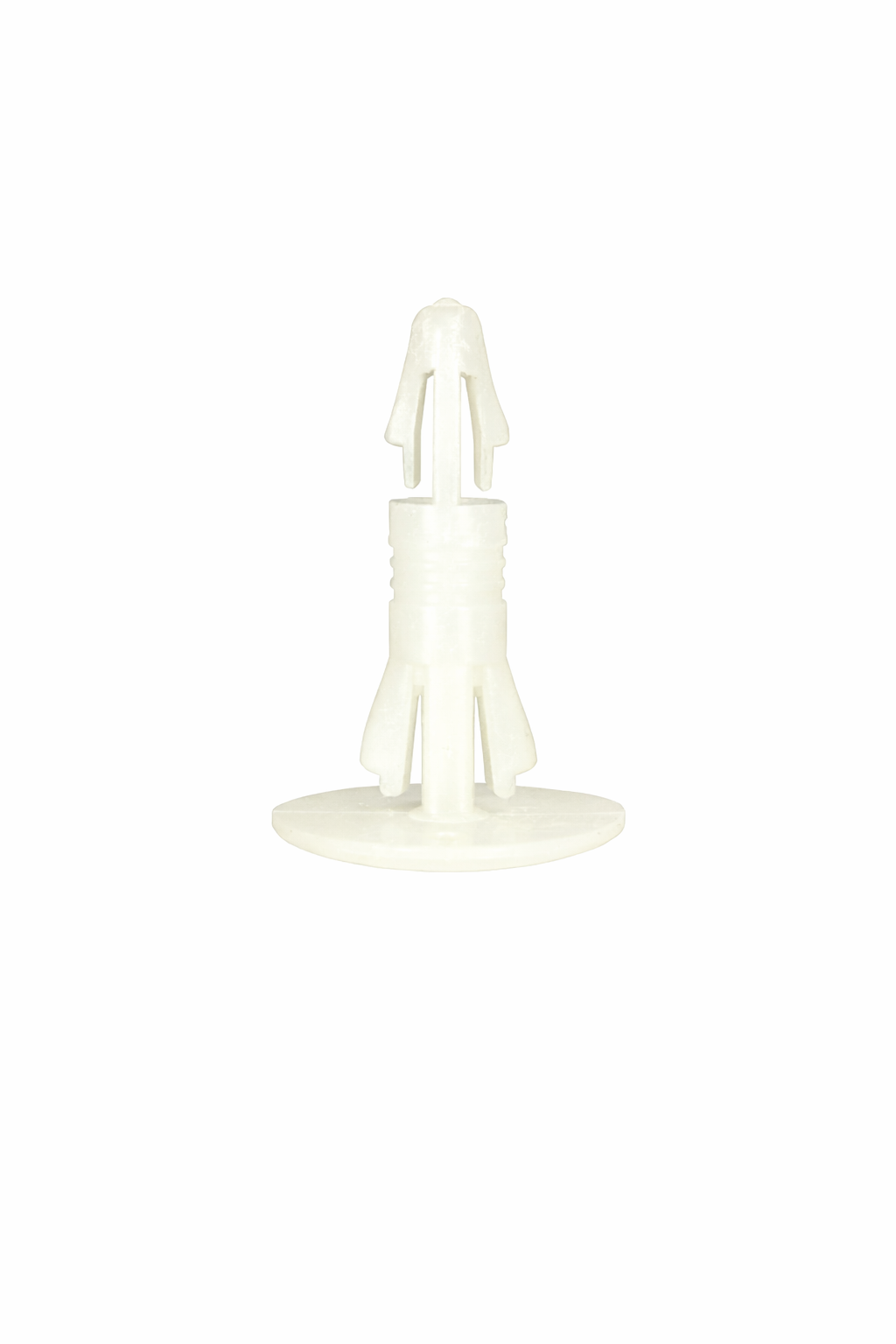

  • Reverse locking board support (PCB Support)
  • .062 PCB Thickness x .05 to .062 Chassis Thickness
  • .156 PCB Hole x .250 Chassis Hole
  • Color: Natural
  • Packaging: 1000/Bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File#: E70062
  • ASTM: D 4066 PA111
  • RoHS Compliant
  • Temp Range: -40 to 185 F (-40- to 85 C)
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

L +/- .015

Request Quote/Sample
N/A .295 (7.5) inches (mm) Request Quote/Sample
N/A .357 (9.06) inches (mm) Request Quote/Sample
N/A .481 (12.2) inches (mm) Request Quote/Sample
N/A .605 (16.5) inches (mm) Request Quote/Sample
N/A .730 (18.4) inches (mm) Request Quote/Sample
N/A .853 (21.7) inches (mm) Request Quote/Sample
N/A 1.04 (26.28) inches (mm) Request Quote/Sample
