• 36 Series: .156 Board Hole(.062 Panel) x .213 Chassis Hole(.04-.062 Chassis)
  • 49675

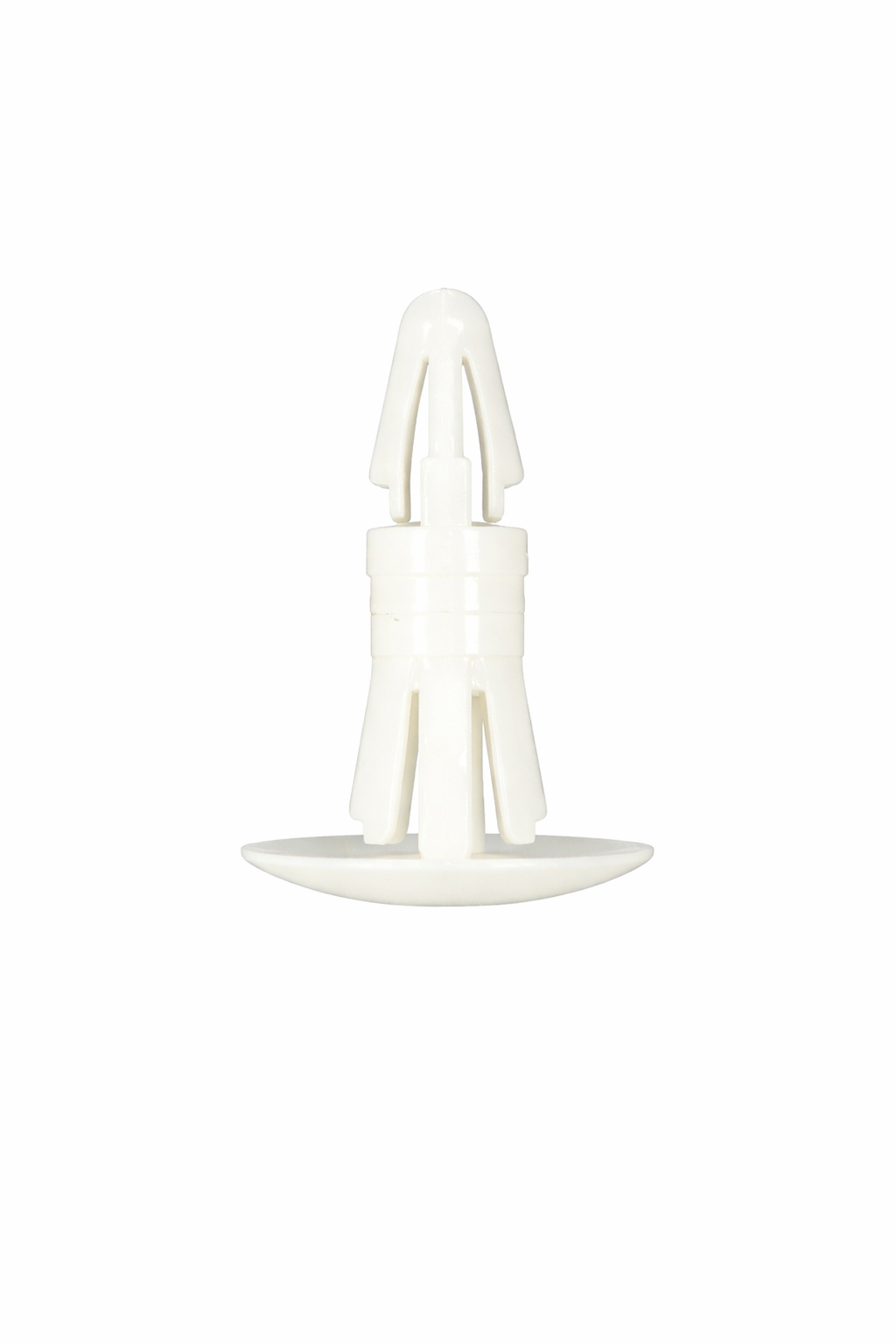

  • Reverse locking board support (PCB Support)

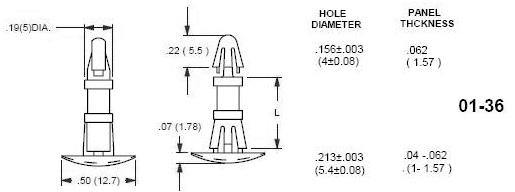

  • .062 PCB Thickness x .04 to .062 Chassis Thickness
  • .156 PCB Hole x .213 Chassis Hole
  • Color: Natural
  • Packaging: 1000/Bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File#: E70062
  • ASTM: D 4066 PA111
  • RoHS Compliant
  • Temp Range: -40 to 185 F (-40- to 85 C)
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

L +/- .015

Request Quote/Sample
N/A .31 (8) inches (mm) Request Quote/Sample
N/A .39 (10) inches (mm) Request Quote/Sample
N/A .47 (12) inches (mm) Request Quote/Sample
N/A .55 (14) inches (mm) Request Quote/Sample
