• 68 Series: .187 Chassis Hole

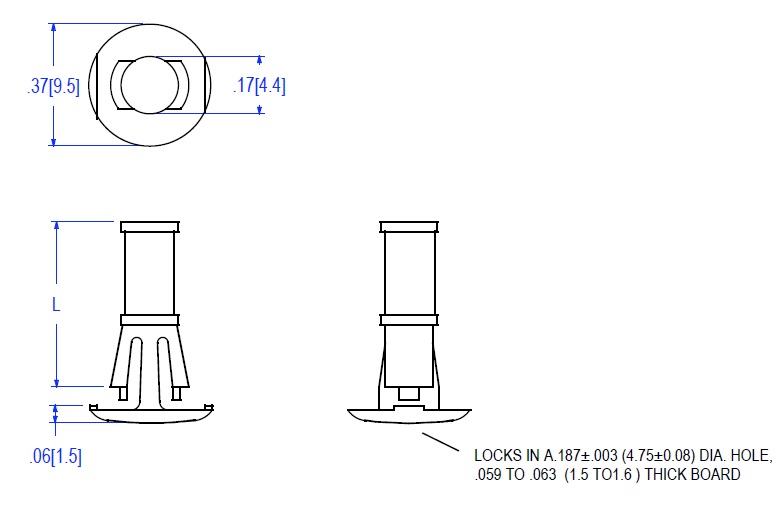

  • 01-68 Sketch

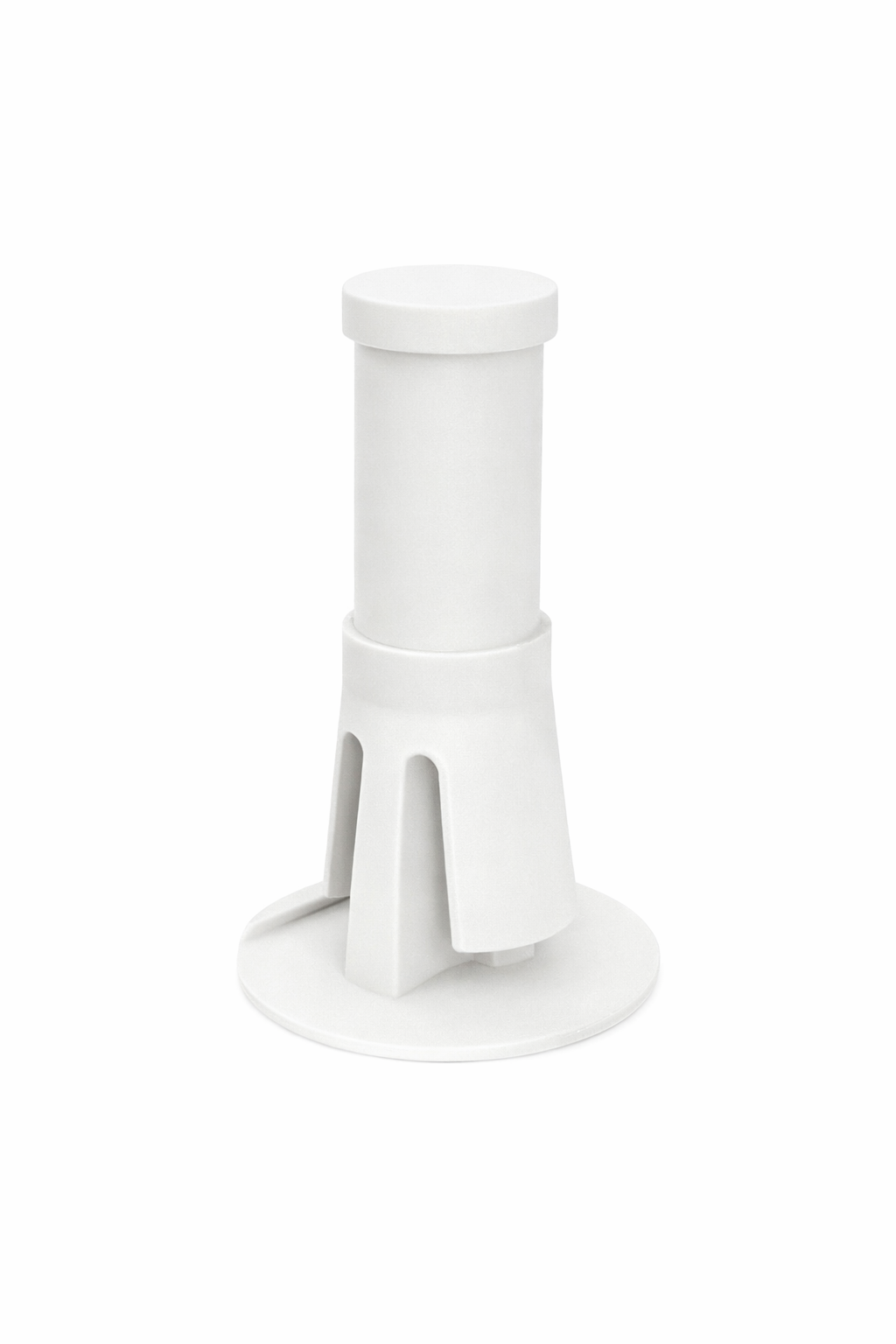

  • Reverse PCB Support Spacer
  • Chassis hole diameter is .187 (4.8mm)
  • .062 Panel Thickness
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No:  E41938
  • ASTM: D 4066, PA0113
  • RoHS Compliant
  • Temp Range:  -40 to 185F (-40 to 85C)



1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

L +/- .015

Chassis Hole Diameter

Panel Thickness

Request Quote/Sample
N/A .250 (6.4) inches (mm) N/A .187 (4.8) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .312 (7.9) inches (mm) N/A .187 (4.8) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .375 (9.5) inches (mm) N/A .187 (4.8) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .437 (11.1) inches (mm) N/A .187 (4.8) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) N/A .187 (4.8) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .563 (14.3) inches (mm) N/A .187 (4.8) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) N/A .187 (4.8) inches (mm) N/A .062 (1.6) inches (mm) Request Quote/Sample
