Standard cams for standard quarter turns. Contains 3mm ramps. Cam contains a stop for quarter turns that do no have internal restraints.

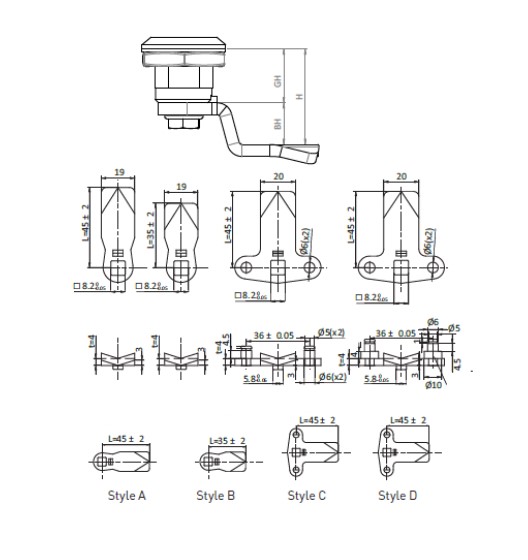

H = GH + BH
1 - 25 of 100 | Results Per Page | View | Unit of Measure
1 2 3 4
Request Information Compare Items Search by Specification

Item #

Item Name

Surface Finish

Style

BH

Dimension H at GH=18 Standard

Request Quote/Sample
N/A 2 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A -16 N/A 2 Request Quote/Sample
N/A 4 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A -14 N/A 4 Request Quote/Sample
N/A 6 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A -12 N/A 6 Request Quote/Sample
N/A 8 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A -10 N/A 8 Request Quote/Sample
N/A 10 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A -8 N/A 10 Request Quote/Sample
N/A 13 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A -5 N/A 13 Request Quote/Sample
N/A 14 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A -4 N/A 14 Request Quote/Sample
N/A 16 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A -2 N/A 16 Request Quote/Sample
N/A 18 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 0 N/A 18 Request Quote/Sample
N/A 20 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 2 N/A 20 Request Quote/Sample
N/A 22 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 4 N/A 22 Request Quote/Sample
N/A 24 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 6 N/A 24 Request Quote/Sample
N/A 25 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 7 N/A 25 Request Quote/Sample
N/A 26 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 8 N/A 26 Request Quote/Sample
N/A 28 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 10 N/A 28 Request Quote/Sample
N/A 30 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 12 N/A 30 Request Quote/Sample
N/A 32 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 14 N/A 32 Request Quote/Sample
N/A 34 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 16 N/A 34 Request Quote/Sample
N/A 35 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 17 N/A 35 Request Quote/Sample
N/A 36 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 18 N/A 36 Request Quote/Sample
N/A 38 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 20 N/A 38 Request Quote/Sample
N/A 40 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 22 N/A 40 Request Quote/Sample
N/A 42 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 24 N/A 42 Request Quote/Sample
N/A 44 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 26 N/A 44 Request Quote/Sample
N/A 45 Dimension H at GH=18 and Style A Standard Quarter Turn Cam N/A Zinc Plated N/A A N/A 27 N/A 45 Request Quote/Sample
