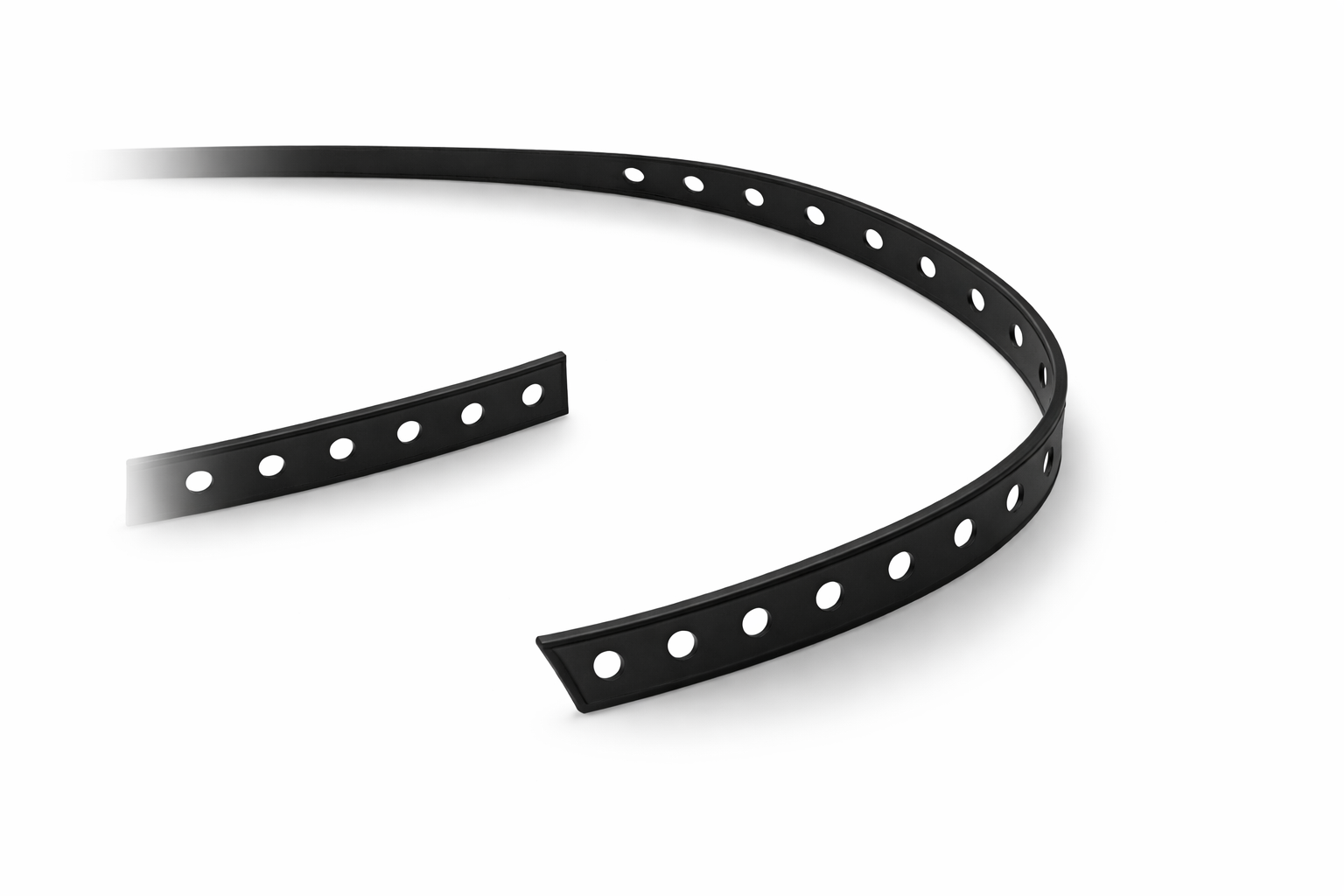

24 Series: Continuous Strapping
Miscellaneous Cable Ties Accessories
- Supports, bind and suspends wires or assembly components
- Cut to length as needed
- Releasable
- Color: Black

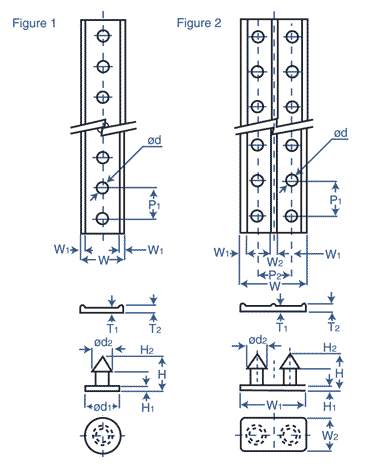

Item # |
Part |
Material |
Dim. - H |
Dim. - H1 |
Dim. - H2 |
Dim. - W |
Dim. - W1 |
Dim. - W2 |
Dim. - T1 |
Dim. - T2 |
ØD |
Dim. - P1 |
Dim. - P2 |
Applicable Button |
Ød1 |
Ød2 |
Pack Size |
Request Quote/Sample |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 02-24-60 02-24-60/Asset/02-24-Continuous-Strapping.png | Part N/A Band | Material N/A Soft PVC | Dim. - H N/A | Dim. - H1 N/A | Dim. - H2 N/A | Dim. - W N/A .236 (6) inches (mm) | Dim. - W1 N/A .039 (1) inches (mm) | Dim. - W2 N/A | Dim. - T1 N/A .032 (.8) inches (mm) | Dim. - T2 N/A .039 (1) inches (mm) | ØD N/A .098 (2.5) inches (mm) | Dim. - P1 N/A .276 (7) inches (mm) | Dim. - P2 N/A | Applicable Button N/A - 601 | Ød1 N/A | Ød2 N/A | Pack Size N/A 16 ft / roll | Request Quote/Sample |
| 02-24-100 02-24-100/Asset/02-24-Continuous-Strapping.png | Part N/A Band | Material N/A Soft PVC | Dim. - H N/A | Dim. - H1 N/A | Dim. - H2 N/A | Dim. - W N/A .394 (10) inches (mm) | Dim. - W1 N/A .039 (1) inches (mm) | Dim. - W2 N/A | Dim. - T1 N/A .032 (.8) inches (mm) | Dim. - T2 N/A .039 (1) inches (mm) | ØD N/A .098 (2.5) inches (mm) | Dim. - P1 N/A .276 (7) inches (mm) | Dim. - P2 N/A | Applicable Button N/A -1001 | Ød1 N/A | Ød2 N/A | Pack Size N/A 16 ft / roll | Request Quote/Sample |
| 02-24-160 02-24-160/Asset/02-24-Continuous-Strapping.png | Part N/A Band | Material N/A Soft PVC | Dim. - H N/A | Dim. - H1 N/A | Dim. - H2 N/A | Dim. - W N/A .630 (16) inches (mm) | Dim. - W1 N/A .059 (1.5) inches (mm) | Dim. - W2 N/A .032 (.8) inches (mm) | Dim. - T1 N/A .039 (1) inches (mm) | Dim. - T2 N/A .051 (1.3) inches (mm) | ØD N/A .098 (2.5) inches (mm) | Dim. - P1 N/A .315 (8) inches (mm) | Dim. - P2 N/A .315 (8) inches (mm) | Applicable Button N/A -1601 | Ød1 N/A | Ød2 N/A | Pack Size N/A 32 ft / roll | Request Quote/Sample |
| 02-24-300 02-24-300/Asset/02-24-Continuous-Strapping.png | Part N/A Band | Material N/A Soft PVC | Dim. - H N/A | Dim. - H1 N/A | Dim. - H2 N/A | Dim. - W N/A 1.18 (30) inches (mm) | Dim. - W1 N/A .059 (1.5) inches (mm) | Dim. - W2 N/A .079 (2.0) inches (mm) | Dim. - T1 N/A .059 (1.5) inches (mm) | Dim. - T2 N/A .079 (2) inches (mm) | ØD N/A .098 (2.5) inches (mm) | Dim. - P1 N/A .335 (8.5) inches (mm) | Dim. - P2 N/A .591 (15) inches (mm) | Applicable Button N/A -3001 | Ød1 N/A | Ød2 N/A | Pack Size N/A 32 ft / roll | Request Quote/Sample |
| 02-24-601 02-24-601/Asset/02-24-Continuous-Strapping.png | Part N/A Button | Material N/A Polyethylene | Dim. - H N/A .248 (6.3) inches (mm) | Dim. - H1 N/A .032 (.8) inches (mm) | Dim. - H2 N/A .098 (2.5) inches (mm) | Dim. - W N/A | Dim. - W1 N/A | Dim. - W2 N/A | Dim. - T1 N/A | Dim. - T2 N/A | ØD N/A | Dim. - P1 N/A | Dim. - P2 N/A | Applicable Button N/A | Ød1 N/A .197 (5.0) inches (mm) | Ød2 N/A .154 (3.9) inches (mm) | Pack Size N/A 1000 / bag | Request Quote/Sample |
| 02-24-1001 02-24-1001/Asset/02-24-Continuous-Strapping.png | Part N/A Button | Material N/A Polyethylene | Dim. - H N/A .307 (7.8) inches (mm) | Dim. - H1 N/A .032 (.8) inches (mm) | Dim. - H2 N/A .138 (3.5) inches (mm) | Dim. - W N/A | Dim. - W1 N/A | Dim. - W2 N/A | Dim. - T1 N/A | Dim. - T2 N/A | ØD N/A | Dim. - P1 N/A | Dim. - P2 N/A | Applicable Button N/A | Ød1 N/A .315 (8.0) inches (mm) | Ød2 N/A .173 (4.4) inches (mm) | Pack Size N/A 500 / bag | Request Quote/Sample |
| 02-24-1601 02-24-1601/Asset/02-24-Continuous-Strapping.png | Part N/A Button | Material N/A Polyethylene | Dim. - H N/A .331 (8.4) inches (mm) | Dim. - H1 N/A .032 (.8) inches (mm) | Dim. - H2 N/A .142 (3.6) inches (mm) | Dim. - W N/A | Dim. - W1 N/A .617 (15.7) inches (mm) | Dim. - W2 N/A .307 (7.8) inches (mm) | Dim. - T1 N/A | Dim. - T2 N/A | ØD N/A | Dim. - P1 N/A | Dim. - P2 N/A | Applicable Button N/A | Ød1 N/A | Ød2 N/A .169 (4.3) inches (mm) | Pack Size N/A 100 / bag | Request Quote/Sample |
| 02-24-3001 02-24-3001/Asset/02-24-Continuous-Strapping.png | Part N/A Button | Material N/A Polyethylene | Dim. - H N/A .374 (9.5) inches (mm) | Dim. - H1 N/A .066 (1.7) inches (mm) | Dim. - H2 N/A .118 (3.0) inches (mm) | Dim. - W N/A | Dim. - W1 N/A 1.15 (29.2) inches (mm) | Dim. - W2 N/A .307 (7.8) inches (mm) | Dim. - T1 N/A | Dim. - T2 N/A | ØD N/A | Dim. - P1 N/A | Dim. - P2 N/A | Applicable Button N/A | Ød1 N/A | Ød2 N/A .169 (4.3) inches (mm) | Pack Size N/A 100 / bag | Request Quote/Sample |
