• 23 Series: .156 Board Hole x 6-32 Thd. Chassis Side

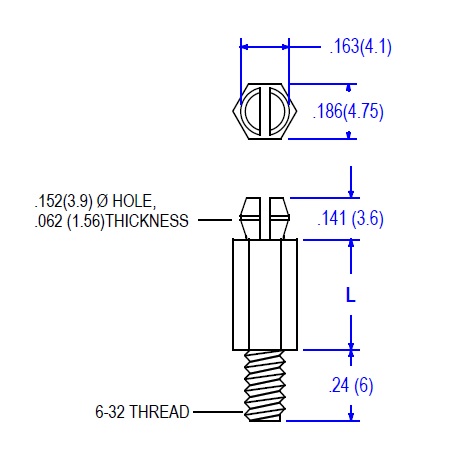

  • 01-23 Sketch

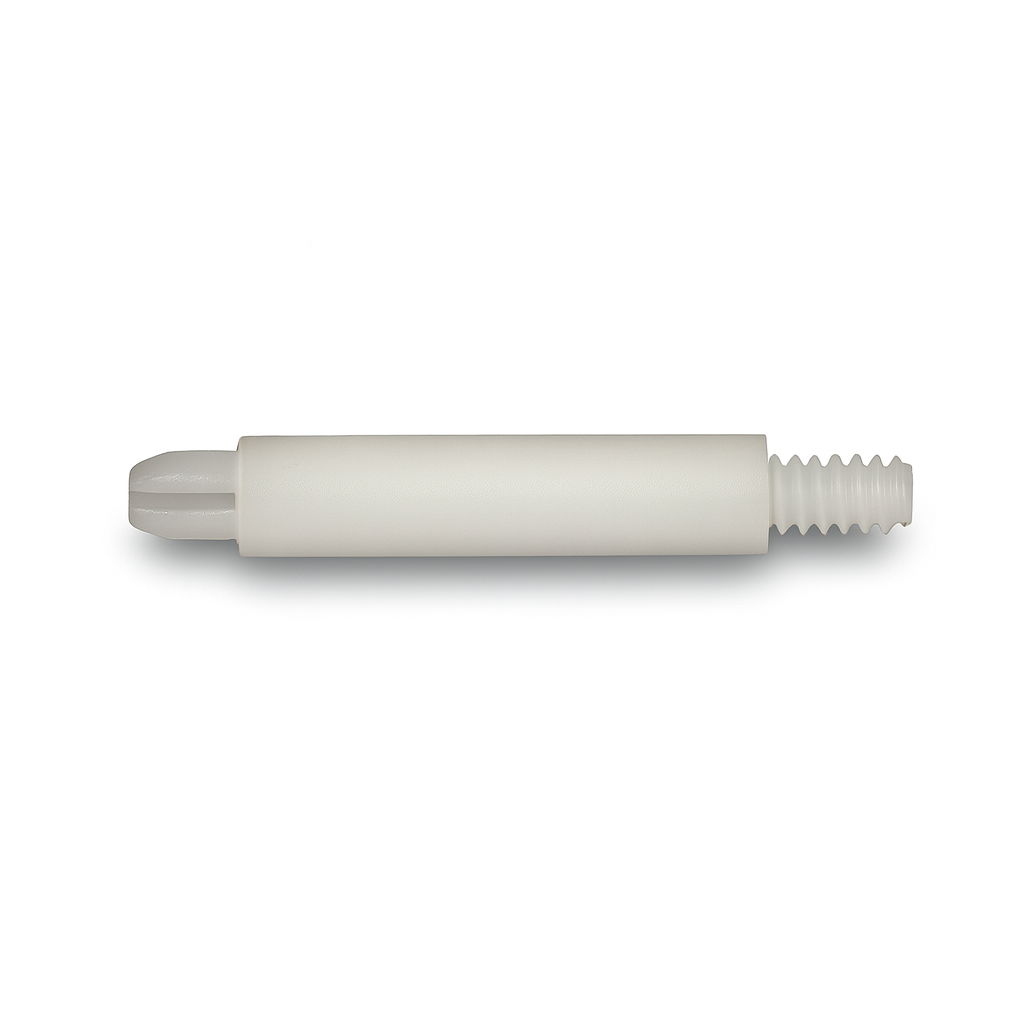

  • Male threaded support post
  • 6-32 thread
  • Mates with AEH Hex Nut# 12-00-632
  • Color: Natural
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No:  E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Material Code

Dim. - L

Mounting Hole Diameter

Board Thickness

Request Quote/Sample
N/A UL94V-2 N/A .125 (3.2) inches (mm) N/A .156 (4.0) inches (mm) N/A .062 (1.57) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .187 (4.8) inches (mm) N/A .156 (4.0) inches (mm) N/A .062 (1.57) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .250 (6.4) inches (mm) N/A .156 (4.0) inches (mm) N/A .062 (1.57) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .375 (9.6) inches (mm) N/A .156 (4.0) inches (mm) N/A .062 (1.57) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .500 (12.7) inches (mm) N/A .156 (4.0) inches (mm) N/A .062 (1.57) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .625 (15.9) inches (mm) N/A .156 (4.0) inches (mm) N/A .062 (1.57) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .750 (19.1) inches (mm) N/A .156 (4.0) inches (mm) N/A .062 (1.57) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .875 (22.3) inches (mm) N/A .156 (4.0) inches (mm) N/A .062 (1.57) inches (mm) Request Quote/Sample
