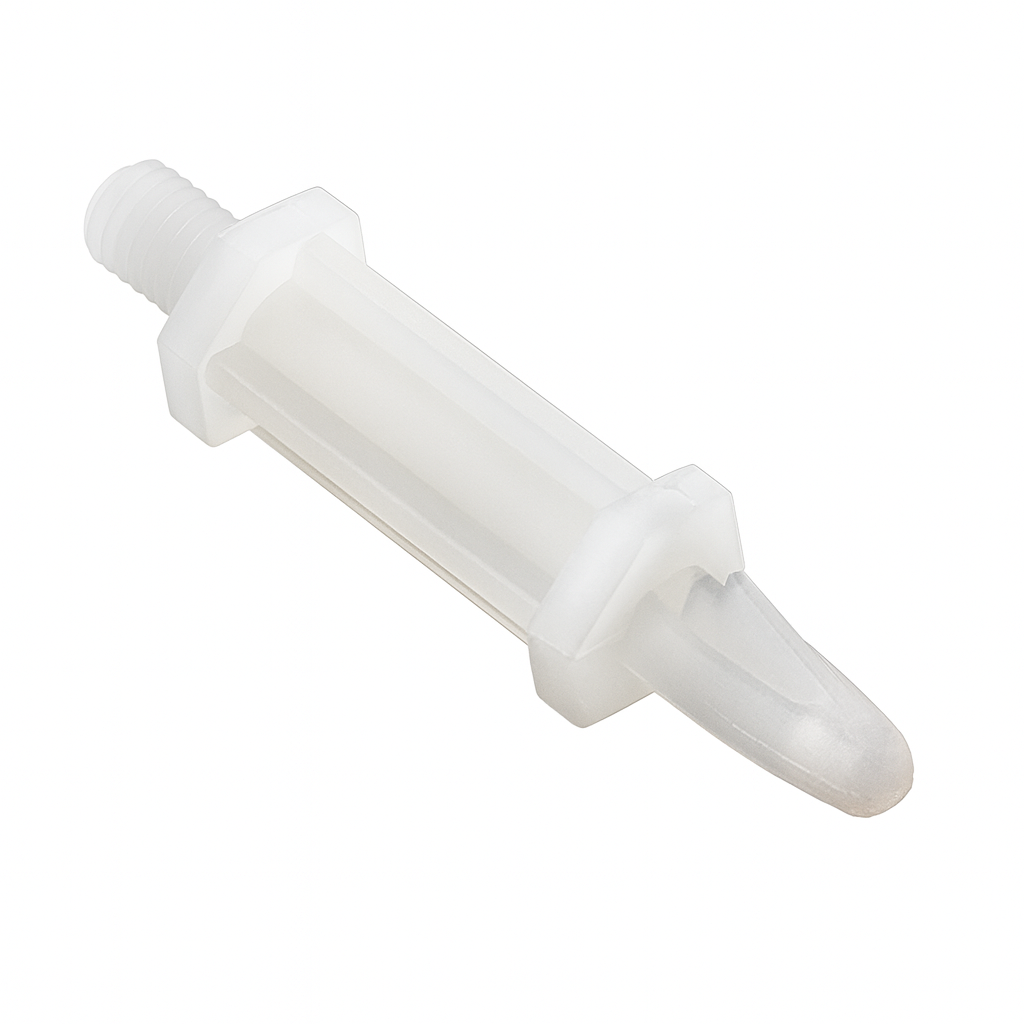

• 14 Series: .156 Board Hole x 8-32 Thd. Chassis Side
  • 41640
  • Threaded circuit board support
  • Chassis end fastens with 8-32 hex nut (AEH Pt# 12-00-832)
  • Packaging: 500/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No:  E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Material Code

Dim. - L

Board Hole Diameter

Panel Thickness

Request Quote/Sample
N/A UL94V-2 N/A .250 (6.4) inches (mm) N/A .156 (4.0) inches (mm) N/A .063 (1.6) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .375 (9.6) inches (mm) N/A .156 (4.0) inches (mm) N/A .063 (1.6) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .500 (12.7) inches (mm) N/A .156 (4.0) inches (mm) N/A .063 (1.6) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .625 (15.9) inches (mm) N/A .156 (4.0) inches (mm) N/A .063 (1.6) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .750 (19.1) inches (mm) N/A .156 (4.0) inches (mm) N/A .063 (1.6) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A .875 (22.3) inches (mm) N/A .156 (4.0) inches (mm) N/A .063 (1.6) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A 1.00 (25.4) inches (mm) N/A .156 (4.0) inches (mm) N/A .063 (1.6) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A 1.125 (28.6) inches (mm) N/A .156 (4.0) inches (mm) N/A .063 (1.6) inches (mm) Request Quote/Sample
