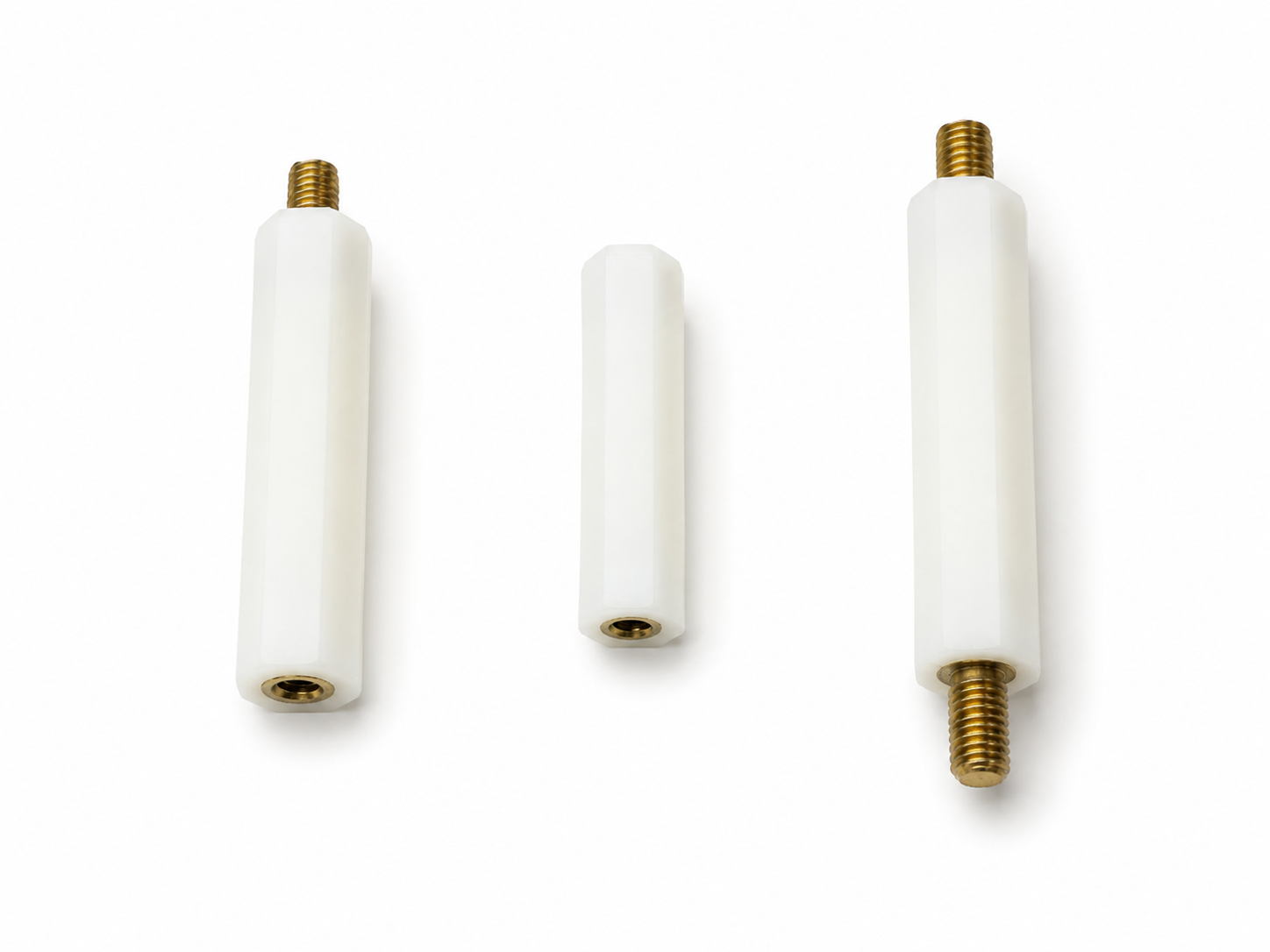

• 07-57-62 Image

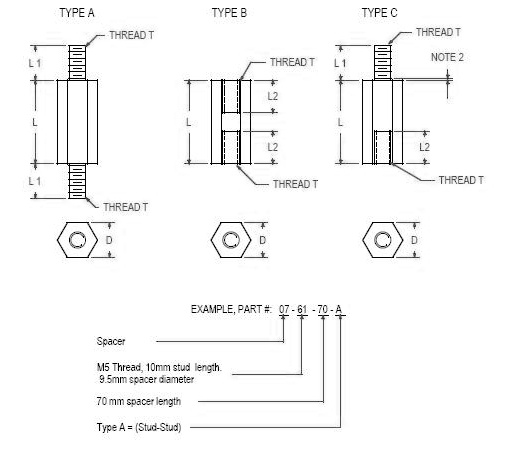

  • Threaded Spacers Dimensions
  • MetricThreaded Nylon Spacers with Brass Inserts
  • Male-Male, Male-Female, & Female-Female Styles
  • For use where high mechanical strength is required
  • Available in M2, M2.5, M3, M4, M5, & M6 Thread Sizes
  • Metric Threaded Spacing Lengths from 15mm to 75mm
  • Color: Natural Nylon w/ Brass Inserts
  • Packaging: 100/bag
  • Spacer Material: Nylon UL94V-2  UL File# E41938
  • RoHS Compliant
  • Temp Range(Ref): -40 to 185 F (-40 to 85C)
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Thread Size (T)

Dim L (mm) 1 mm increments

L1 (mm)

L2 (mm)

D (mm)

Request Quote/Sample
N/A M2 N/A 15 to 50 N/A 6 N/A 6 N/A 6.4 Request Quote/Sample
N/A M2.5 N/A 15 to 50 N/A 6 N/A 6 N/A 6.4 Request Quote/Sample
N/A M3 N/A 15 to 50 N/A 6 N/A 6 N/A 6.4 Request Quote/Sample
N/A M4 N/A 15 to 75 N/A 6 N/A 6 N/A 8 Request Quote/Sample
N/A M5 N/A 20 to 75 N/A 10 N/A 10 N/A 9.5 Request Quote/Sample
N/A M6 N/A 20 to 75 N/A 12.7 N/A 12.7 N/A 12.7 Request Quote/Sample
