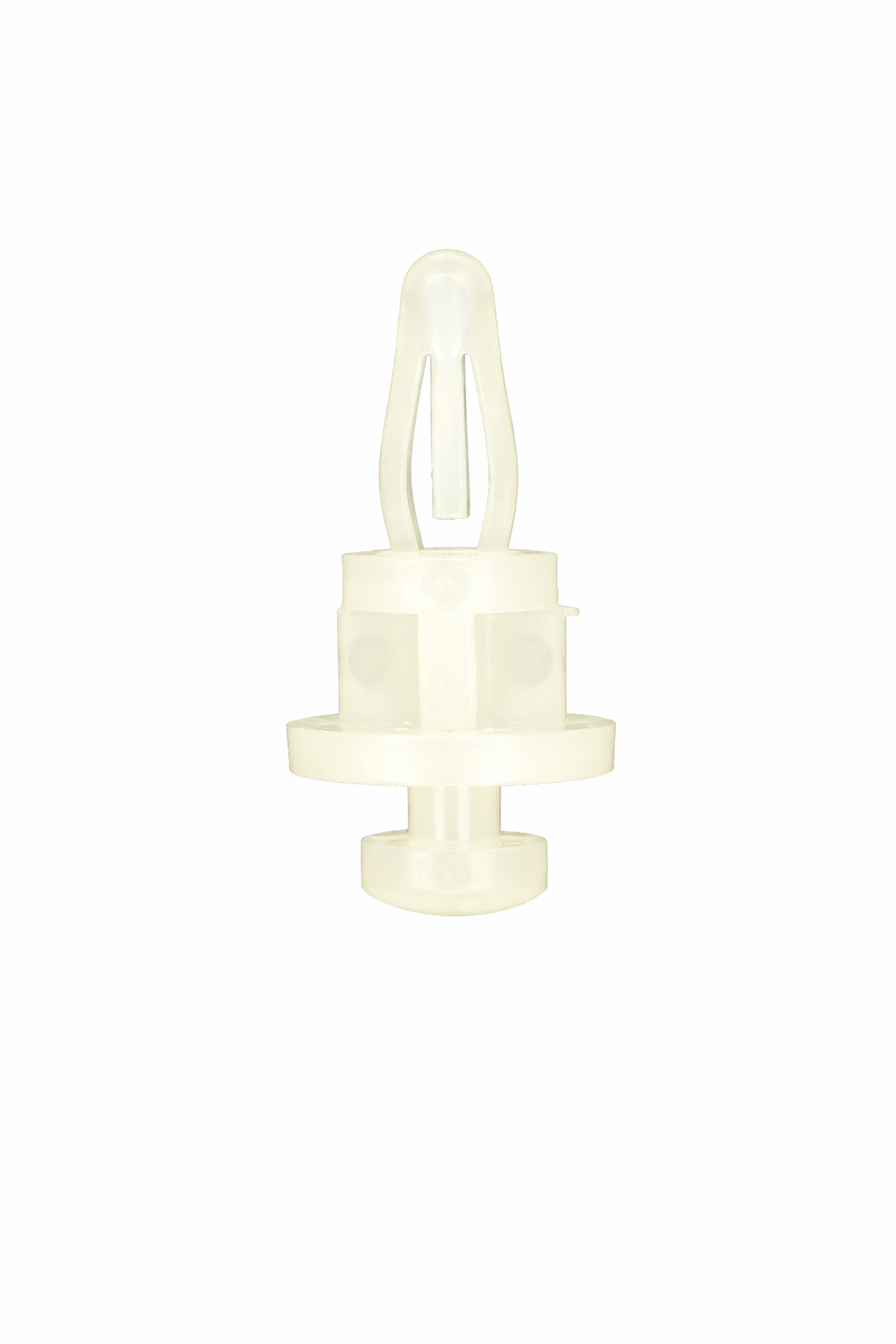

• 55 Series: Keyslot Chassis Mount x .156 PCB Hole(Locking)

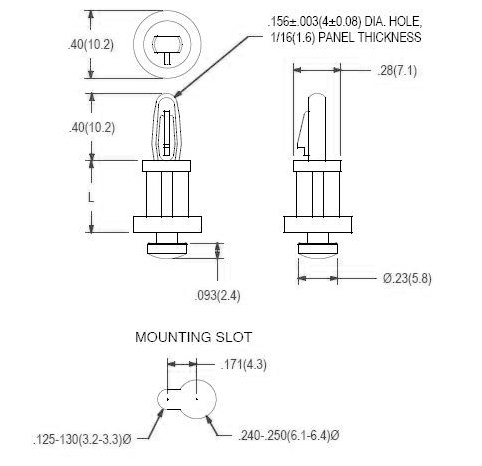

  • 01-55 Dimensions
  • Keyslot (PCB) Circuit Board Support
  • Keyslot Chassis Mount
  • Color: Natural
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No:  E70062
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

L +/-.015

Request Quote/Sample
N/A .125 (3.2) inches (mm) Request Quote/Sample
N/A .187 (4.8) inches (mm) Request Quote/Sample
N/A .250 (6.4) inches (mm) Request Quote/Sample
N/A .312 (7.9) inches (mm) Request Quote/Sample
N/A .375 (9.5) inches (mm) Request Quote/Sample
N/A .437 (11.1) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) Request Quote/Sample
N/A .563 (14.3) inches (mm) Request Quote/Sample
N/A .625 (15.9) inches (mm) Request Quote/Sample
N/A .750 (19.1) inches (mm) Request Quote/Sample
