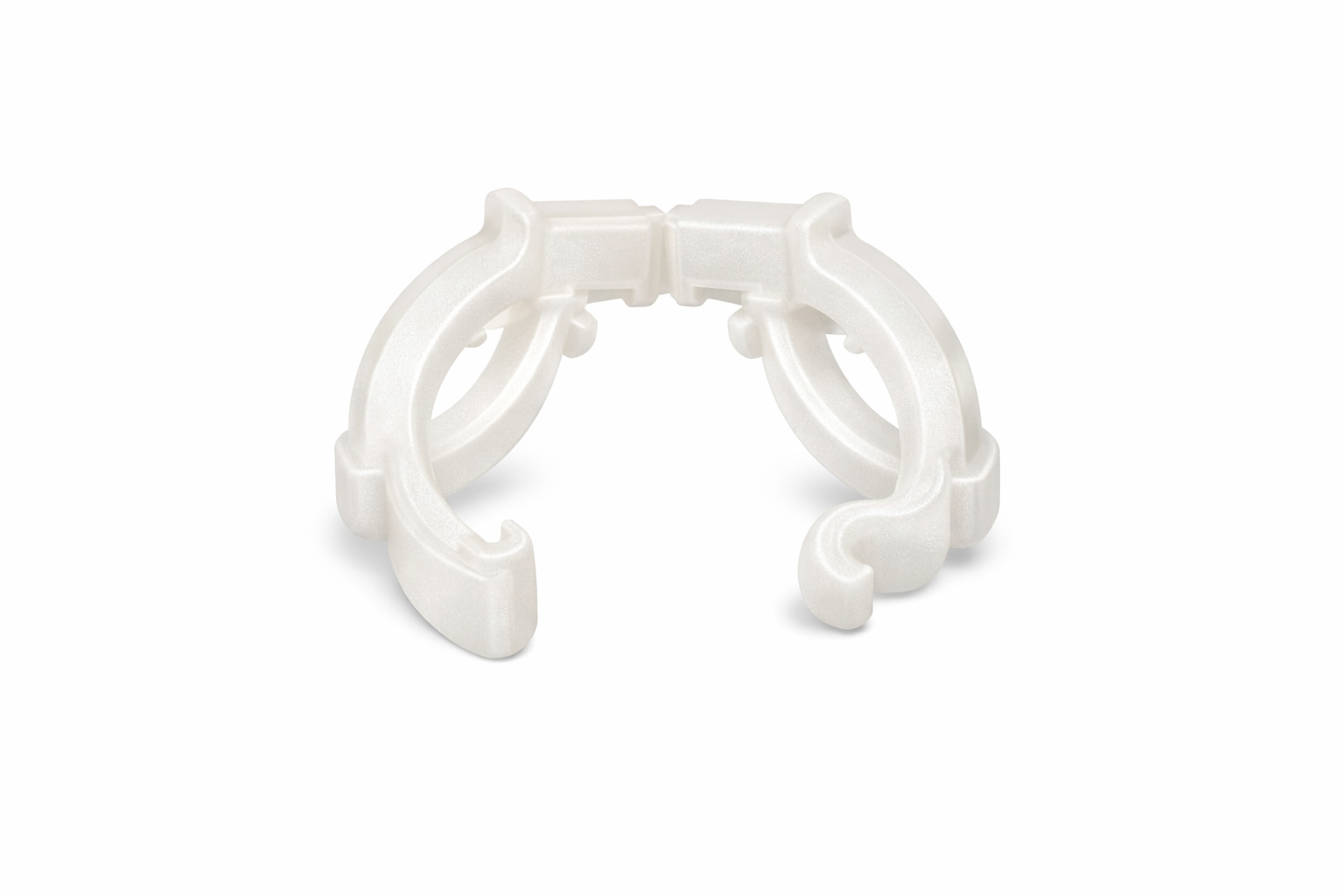

• 10 Series: Snap clips .078 - .315 Holding Capacity

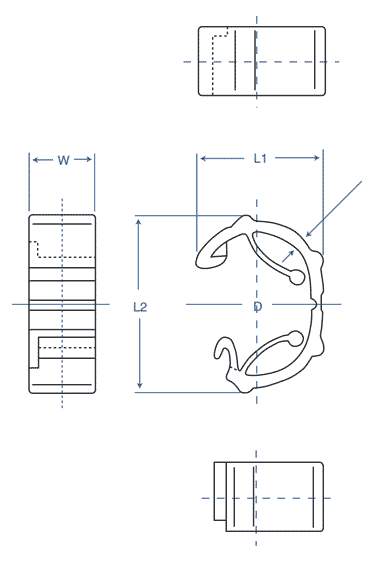

  • 04 - 10 Series - Dimensions
  • Snap clip
  • Routes and secures wire bundles
  • Fasten and release clip by hand
  • Color: Natural
  • Packaging: 500/bag
  • Material: Nylon 66 UL94V-2
  • UL File No: E53664
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L1

Dim. - L2

Dim. - W

Dim. - T

Bundle Diameter Range

Request Quote/Sample
N/A .386 (9.8) inches (mm) N/A .417 (10.6) inches (mm) N/A .236 (6.0) inches (mm) N/A .035 (.9) inches (mm) N/A .078 - .158 (2.0 - 4.0) inches (mm) Request Quote/Sample
N/A .441 (11.2) inches (mm) N/A .595 (15.1) inches (mm) N/A .236 (6.0) inches (mm) N/A .040 (1.0) inches (mm) N/A .138 - .217 (3.5 - 5.5) inches (mm) Request Quote/Sample
N/A .575 (14.6) inches (mm) N/A .728 (18.5) inches (mm) N/A .236 (6.0) inches (mm) N/A .040 (1.0) inches (mm) N/A .217 - .315 (5.5 - 8.0) inches (mm) Request Quote/Sample
