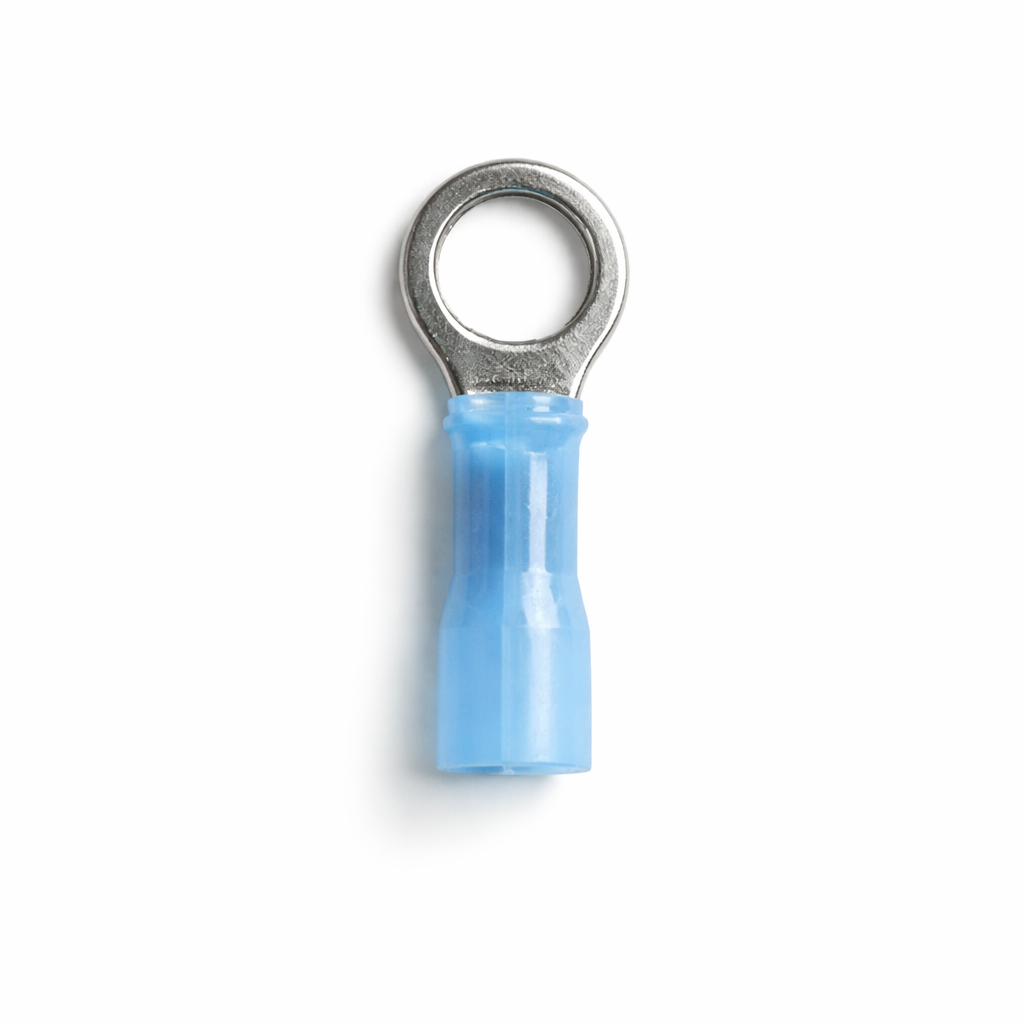

• Ring Terminals - Heat Shrink Insulated - 18-HSB-10-Q
  • One piece tin plated barrel
  • Funneled sleeve reduces strand hang-ups
  • Strong adhesion to both the connector and insulation
    • Provides higher strain relief and resistance to vibration, abrasion, and corrosion
  • Adhesive seal resists water, solvents, and chemicals
  • V-notch barrel provides strength and current flow
  • 600 volt capacity
1 - 8 of 8 | Results Per Page | View |
1
Request Information Compare Items

Item #

Color

Wire Range

Stud Size

Pack Size

Request Quote/Sample
N/A Red N/A 22-18 AWG N/A 10 N/A 25/Bag Request Quote/Sample
N/A Blue N/A 16-14 AWG N/A 10 N/A 25/Bag Request Quote/Sample
N/A Blue N/A 16-14 AWG N/A 1/4" N/A 25/Bag Request Quote/Sample
N/A Blue N/A 16-14 AWG N/A 5/16" N/A 25/Bag Request Quote/Sample
N/A Blue N/A 16-14 AWG N/A 3/8" N/A 25/Bag Request Quote/Sample
N/A Yellow N/A 12-10 AWG N/A 10 N/A 25/Bag Request Quote/Sample
N/A Yellow N/A 12-10 AWG N/A 1/4" N/A 25/Bag Request Quote/Sample
N/A Yellow N/A 12-10 AWG N/A 3/8" N/A 25/Bag Request Quote/Sample
