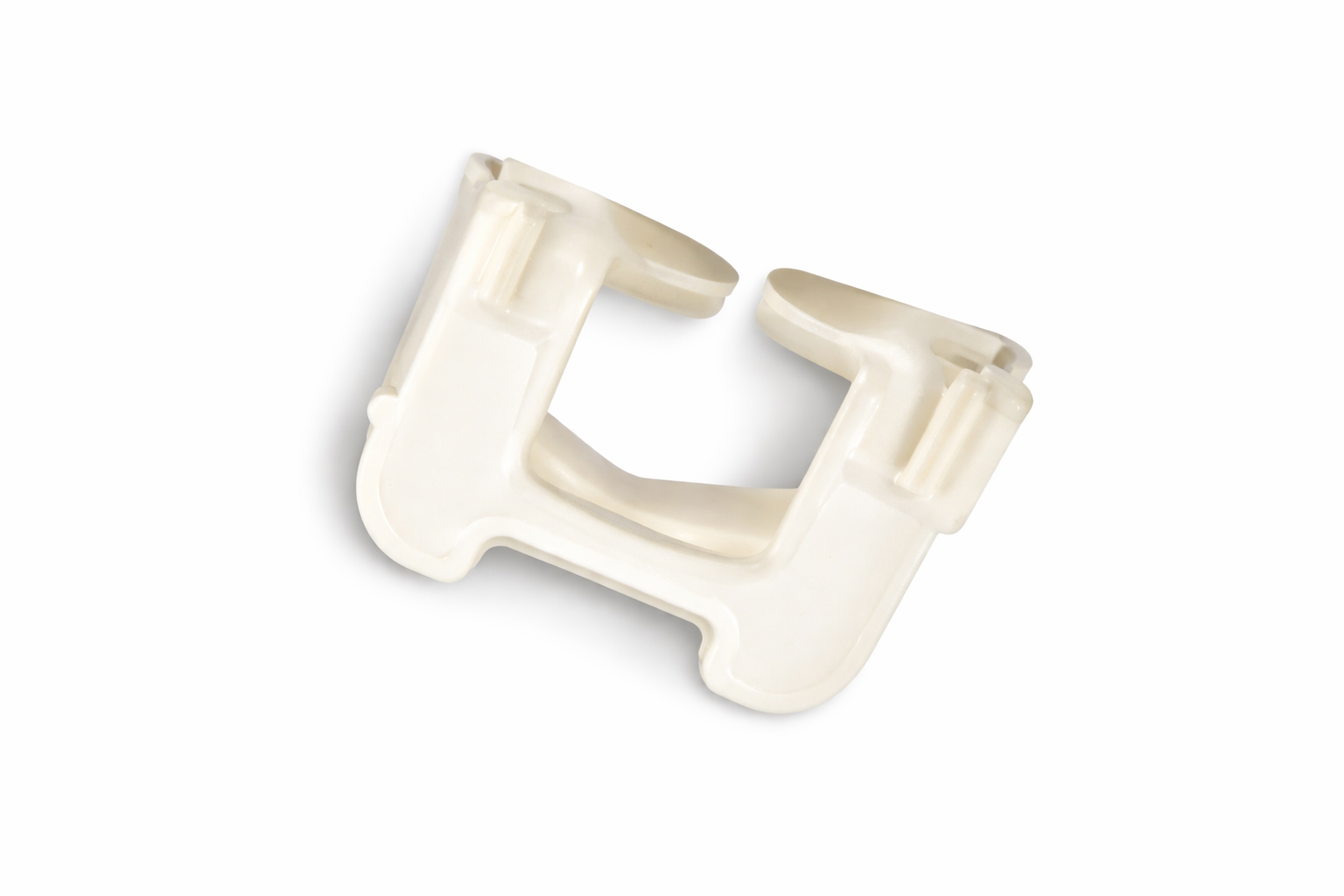

• 24 Series: Edge Wire Saddle

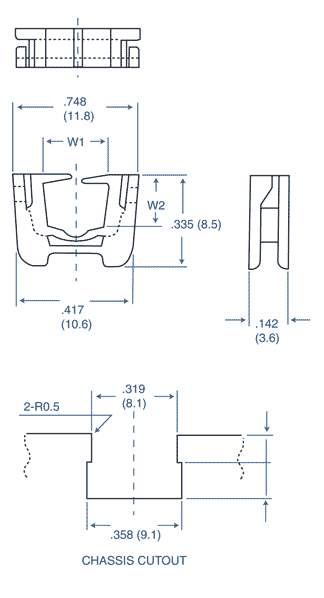

  • 03 - 24 Series - Dimensions
  • Edge wire saddle
  • Protects wires from sharp edges
  • Packaging: 500/bag
  • Material: Nylon 66
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Material Code

Color

Dim. - W1

Dim. - W2

Chassis Thickness

Request Quote/Sample
N/A UL94V-2 N/A Black N/A .232 (5.9) inches (mm) N/A .187 (4.8) inches (mm) N/A .031 - .063 (.8 - 1.6) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A White N/A .232 (5.9) inches (mm) N/A .187 (4.8) inches (mm) N/A .031 - .063 (.8 - 1.6) inches (mm) Request Quote/Sample
