03-23-11

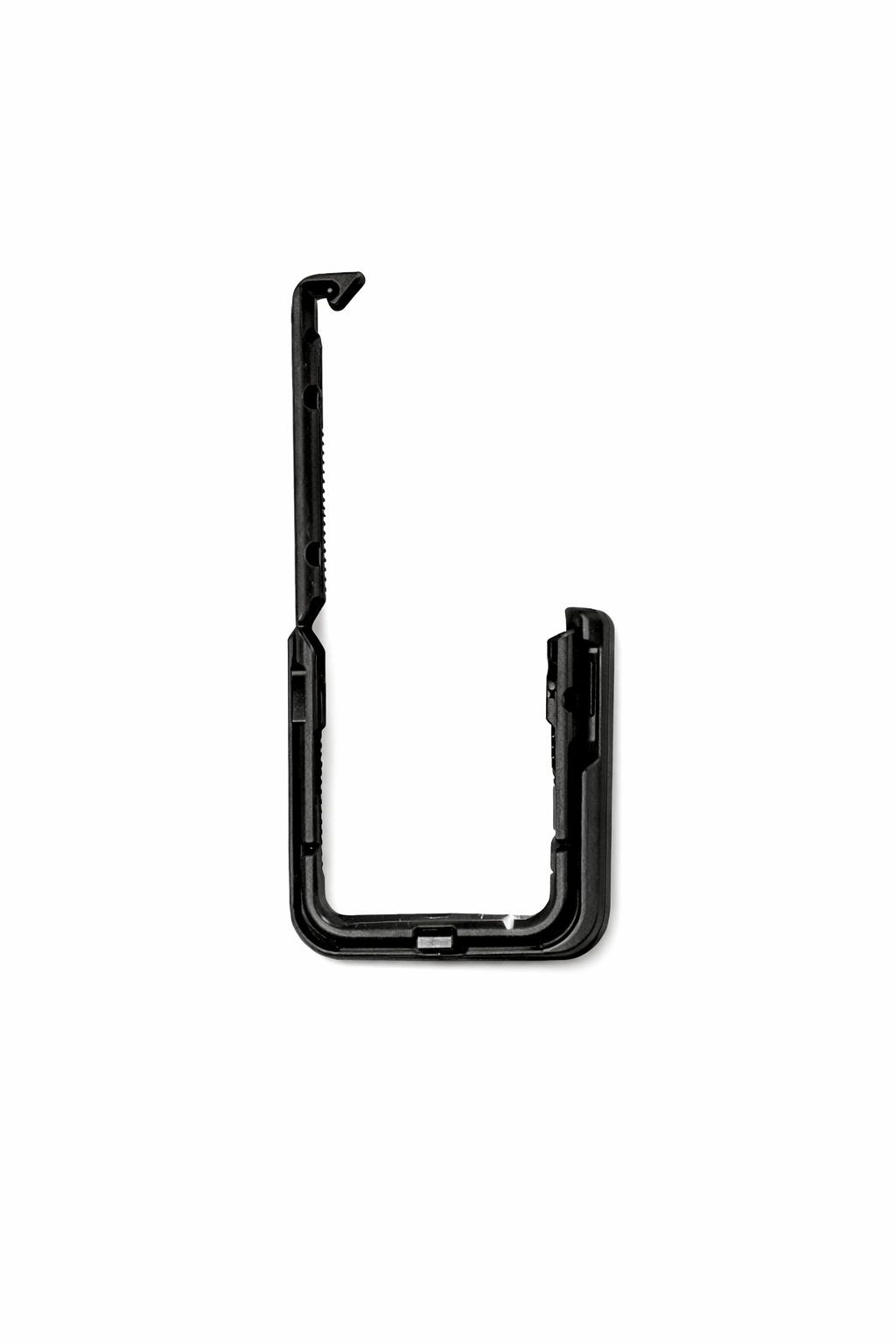

03-23-11/Asset/03-23--Locking-Edge-Wire-Saddle.png
|
Material Code
N/A UL94V-2
|

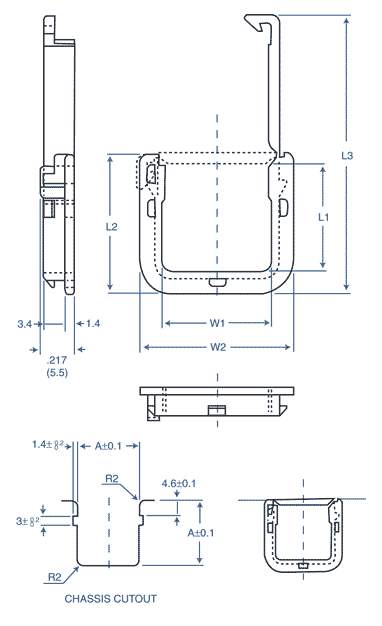

Dim. - W1
N/A .457 (11.6) inches (mm)
|
Dim. - W2
N/A .709 (18.0) inches (mm)
|
Dim. - L1
N/A .437 (11.1) inches (mm)
|
Dim. - L2
N/A .622 (15.8) inches (mm)
|
Dim. - L3
N/A 1.24 (31.4) inches (mm)
|
Panel Thickness
N/A .020 - .063 (.5 - 1.6) inches (mm)
|
Request Quote/Sample
|
|
03-23-18
03-23-18/Asset/03-23--Locking-Edge-Wire-Saddle.png
|
Material Code
N/A UL94V-2
|
Dim. - W1
N/A .724 (18.4) inches (mm)
|
Dim. - W2
N/A 1.02 (25.8) inches (mm)
|
Dim. - L1
N/A .696 (17.7) inches (mm)
|
Dim. - L2
N/A .913 (23.2) inches (mm)
|
Dim. - L3
N/A 1.82 (46.1) inches (mm)
|
Panel Thickness
N/A .020 - .063 (.5 - 1.6) inches (mm)
|
Request Quote/Sample
|
|
03-23-11X
03-23-11X/Asset/03-23--Locking-Edge-Wire-Saddle.png
|
Material Code
N/A UL94V-0
|
Dim. - W1
N/A .457 (11.6) inches (mm)
|
Dim. - W2
N/A .709 (18.0) inches (mm)
|
Dim. - L1
N/A .437 (11.1) inches (mm)
|
Dim. - L2
N/A .622 (15.8) inches (mm)
|
Dim. - L3
N/A 1.24 (31.4) inches (mm)
|
Panel Thickness
N/A .020 - .063 (.5 - 1.6) inches (mm)
|
Request Quote/Sample
|
|
03-23-18X
03-23-18X/Asset/03-23--Locking-Edge-Wire-Saddle.png
|
Material Code
N/A UL94V-0
|
Dim. - W1
N/A .724 (18.4) inches (mm)
|
Dim. - W2
N/A 1.02 (25.8) inches (mm)
|
Dim. - L1
N/A .696 (17.7) inches (mm)
|
Dim. - L2
N/A .913 (23.2) inches (mm)
|
Dim. - L3
N/A 1.82 (46.1) inches (mm)
|
Panel Thickness
N/A .020 - .063 (.5 - 1.6) inches (mm)
|
Request Quote/Sample
|
