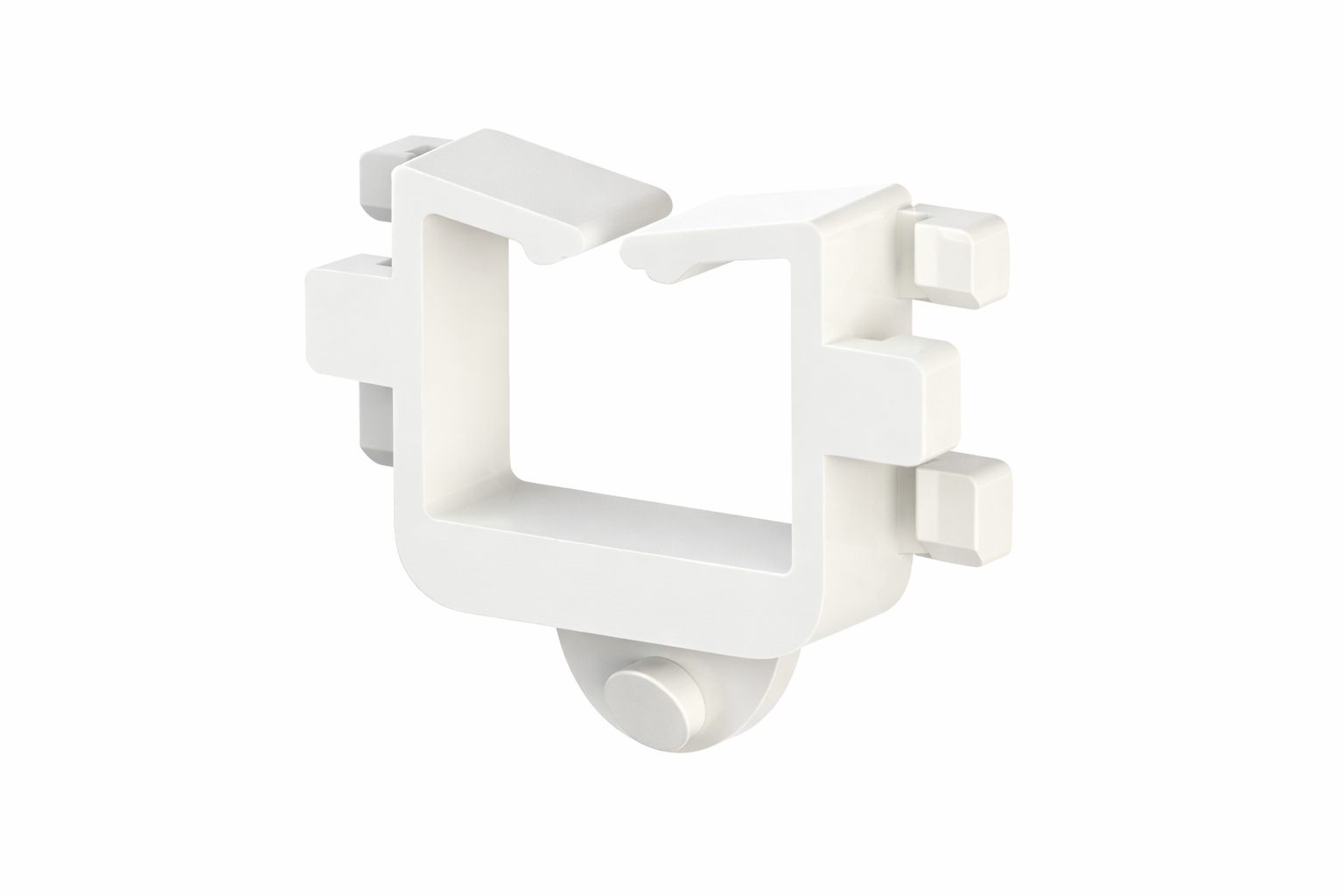

• 69 Series: Edge Wire Saddle

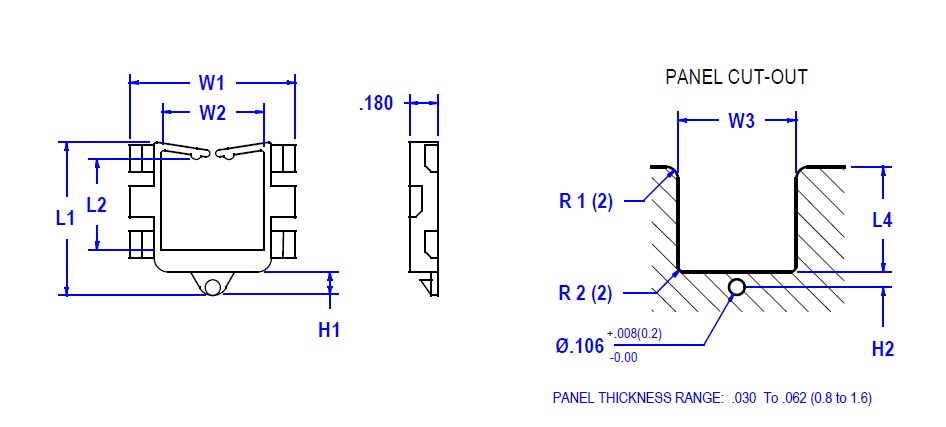

  • 03-69 Sketch
  • Edge wire saddle
  • Protects wires from sharp edges
  • Packaging: 1000/bag
  • Material: Nylon 66 (UL94V-2)
  • Color: Natural
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
  • Download PDF File for Recommended Cut-Out Specs
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

W1 REF

W2 REF

L1

L2 REF

H1

Request Quote/Sample
N/A .78 (19.8) inches (mm) N/A .46 (11.8) inches (mm) N/A .64 (16.3) N/A .29 (7.4) N/A .16 (4.1) inches (mm) Request Quote/Sample
N/A 1.06 (19.8) inches (mm) N/A .66 (16.8) inches (mm) N/A .98 (24.9) N/A .59 (15) N/A .15 (3.9) inches (mm) Request Quote/Sample
N/A 1.13 (28.8) inches (mm) N/A .66 (16.8) inches (mm) N/A .98 (24.9) N/A .59 (15) N/A .15 (3.9) inches (mm) Request Quote/Sample
N/A 1.37 (34.8) inches (mm) N/A .90 (22.9) inches (mm) N/A 1.31 (33.3) N/A .91 (23.1) N/A .17 (4.3) inches (mm) Request Quote/Sample
