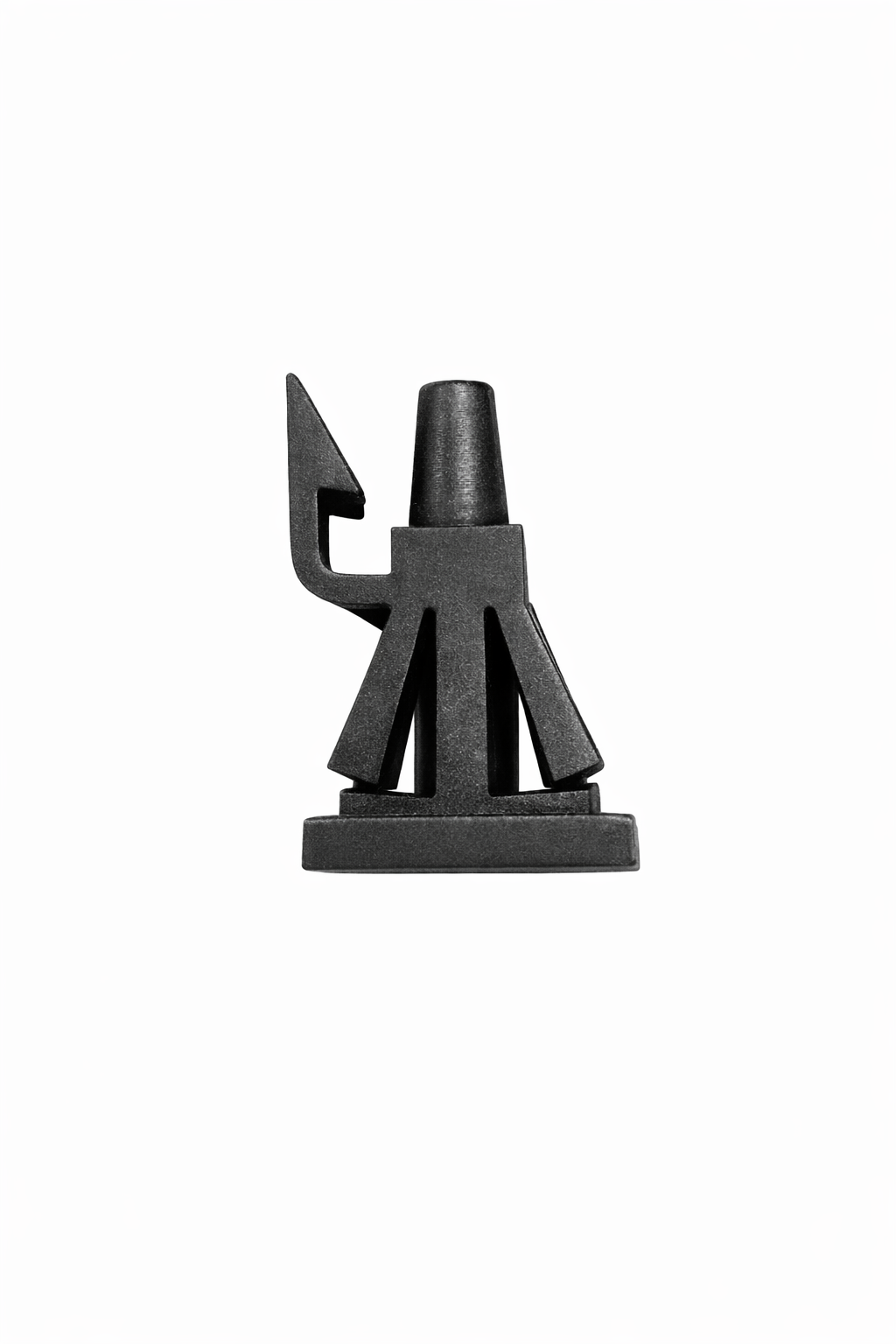

• 79 Series: Edge Mount x .156 PCB Hole with Square Hole Chassis Mount

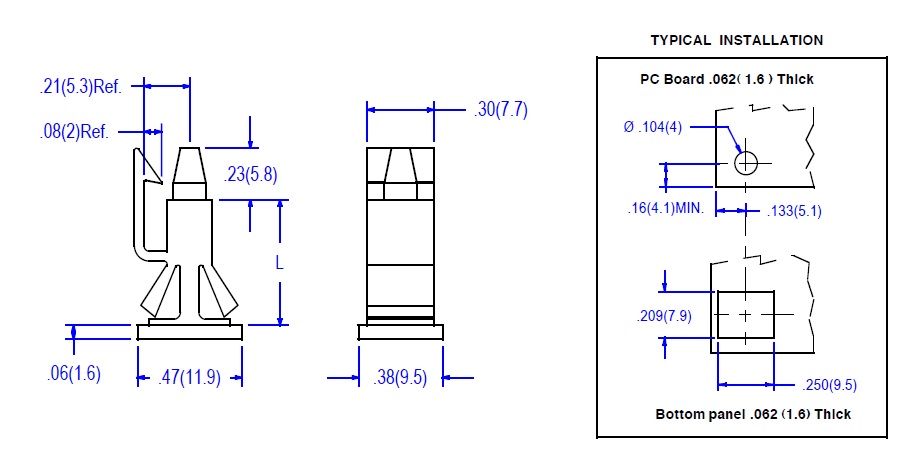

  • 01-79 Sketch
  • Edge Mount Circuit Board Support(PCB)
  • For Square Hole Chassis Cut-Out
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to part#)
  • Color: Black
  • UL File No: E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L In(+/-.015) mm(+/-.4)

Request Quote/Sample
N/A .375 (9.5) inches (mm) Request Quote/Sample
N/A .437 (11.1) inches (mm) Request Quote/Sample
N/A .500 (12.7) inches (mm) Request Quote/Sample
