• 25 Series: Edge Mount (No Board Hole)
  • 45658

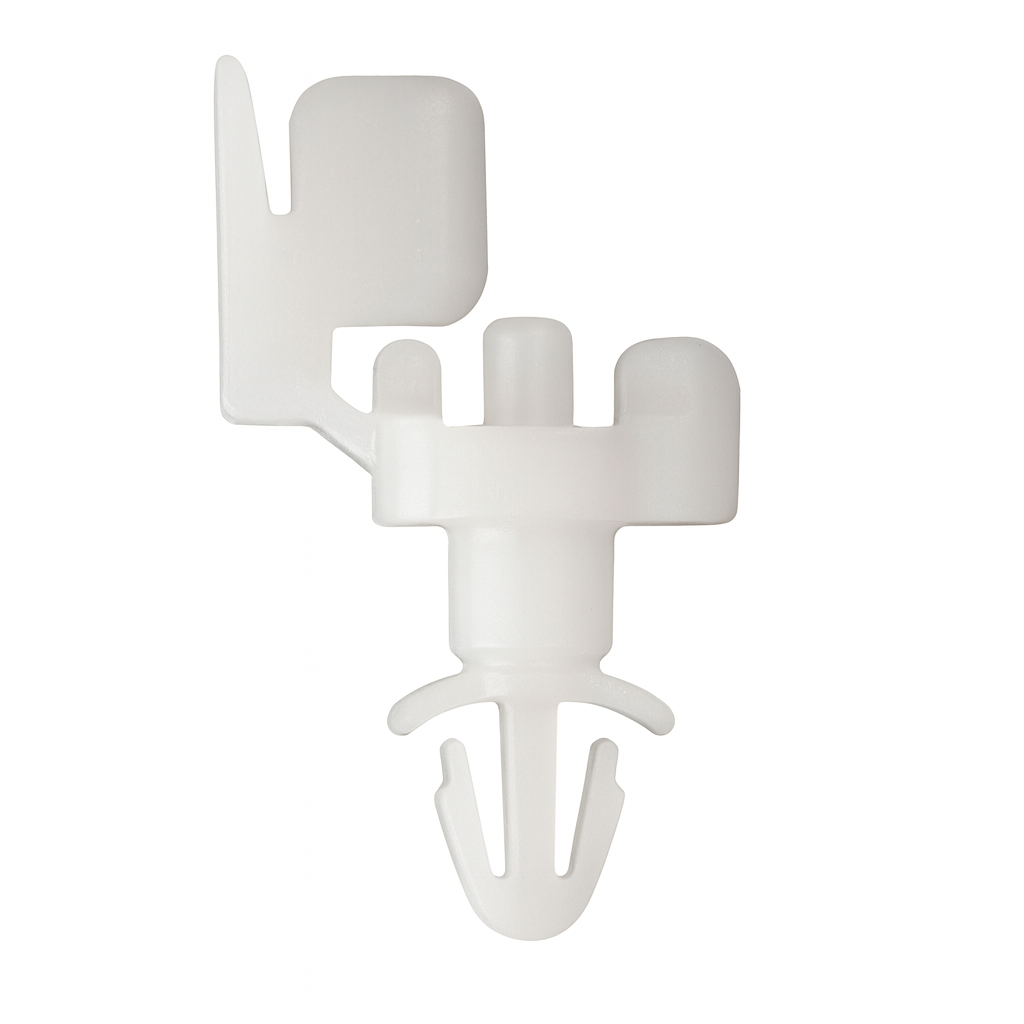

  • Circuit board edge holder
  • Edge mount circuit boards (no board hole required)
  • Packaging: 500/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to end of part#)
  • UL File No:  E53664
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range:  -40 to 185 F (-40 to 85C)
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

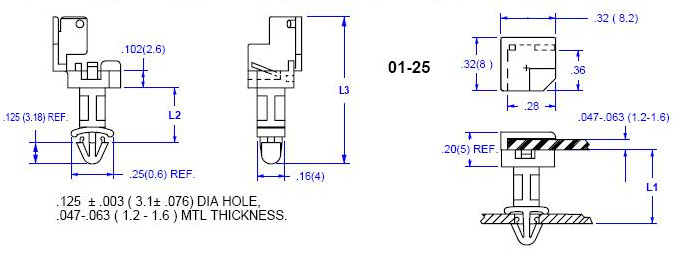

Item #

Material Code

Color

Dim. - L1

Dim. - L2

Dim. - L3

Panel Thickness

Mounting Hole Diameter

Request Quote/Sample
N/A UL94V-2 N/A Natural N/A .315 (8.0) inches (mm) N/A .213 (5.4) inches (mm) N/A .654 (16.6) inches (mm) N/A .047 - .063 (1.2 - 1.6) inches (mm) N/A .126 (3.2) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A Natural N/A .433 (11.0) inches (mm) N/A .331 (8.4) inches (mm) N/A .772 (19.6) inches (mm) N/A .047 - .063 (1.2 - 1.6) inches (mm) N/A .126 (3.2) inches (mm) Request Quote/Sample
N/A UL94V-2 N/A Natural N/A .630 (16.0) inches (mm) N/A .528 (13.4) inches (mm) N/A .969 (24.6) inches (mm) N/A .047 - .063 (1.2 - 1.6) inches (mm) N/A .126 (3.2) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A White N/A .315 (8.0) inches (mm) N/A .213 (5.4) inches (mm) N/A .654 (16.6) inches (mm) N/A .047 - .063 (1.2 - 1.6) inches (mm) N/A .126 (3.2) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A White N/A .433 (11.0) inches (mm) N/A .331 (8.4) inches (mm) N/A .772 (19.6) inches (mm) N/A .047 - .063 (1.2 - 1.6) inches (mm) N/A .126 (3.2) inches (mm) Request Quote/Sample
N/A UL94V-0 N/A White N/A .630 (16.0) inches (mm) N/A .528 (13.4) inches (mm) N/A .969 (24.6) inches (mm) N/A .047 - .063 (1.2 - 1.6) inches (mm) N/A .126 (3.2) inches (mm) Request Quote/Sample
