• 73 Series: Edge Mount x .156 PCB Hole with #6 Self-Tapping Chassies Screw

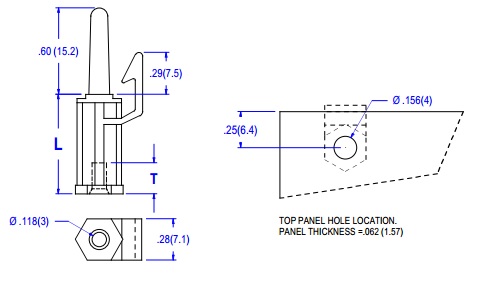

  • 01-73 SKETCH

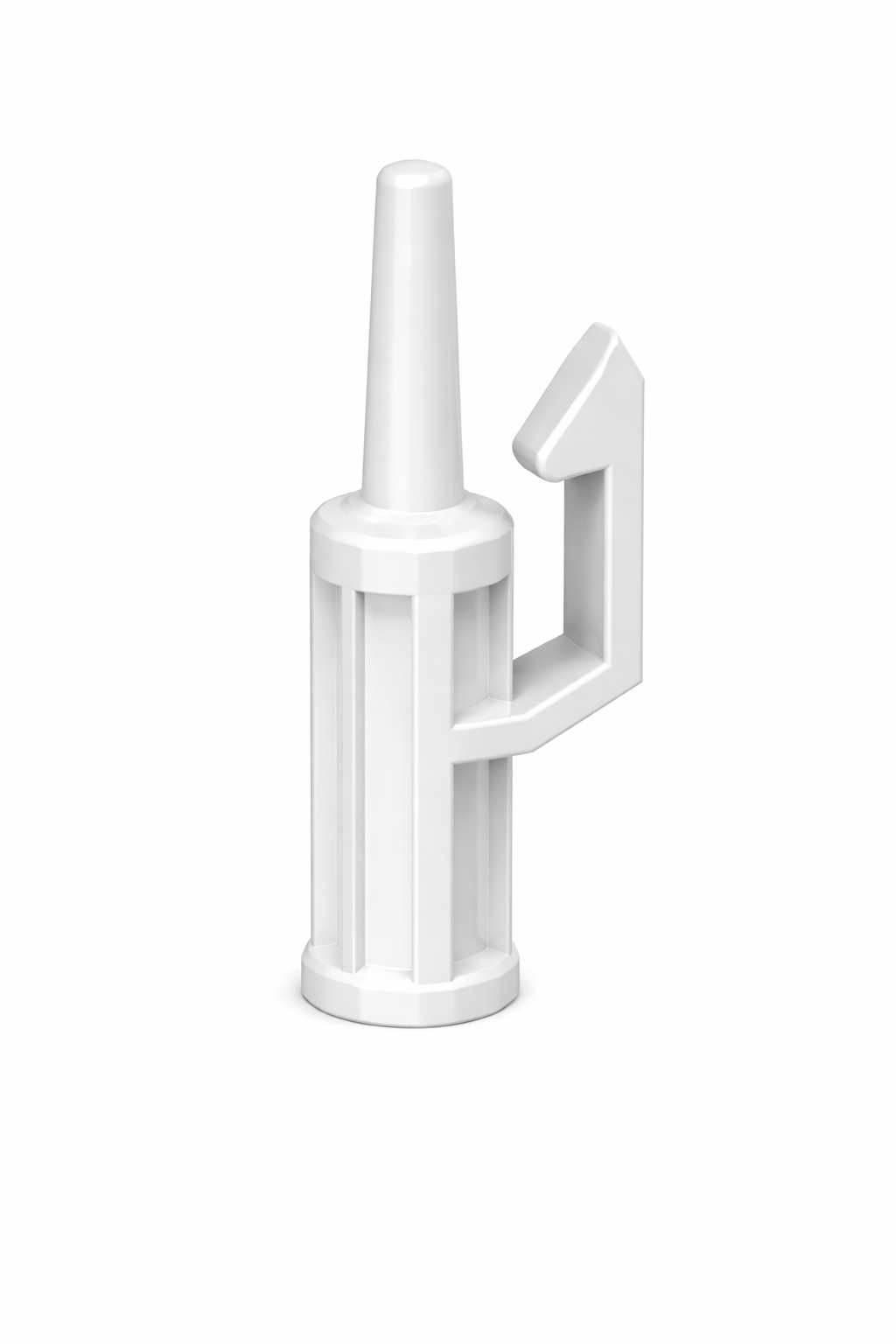

  • Edge Mount Circuit Board Support(PCB)
  • Screw Mount Chassis (# 6 Screw) For: .062 Thick Chassis
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to part#)
  • UL File No: E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L

T Inches (mm)

Request Quote/Sample
N/A .250 (6.4) inches (mm) N/A .20 (5.2) Request Quote/Sample
N/A .312 (7.9) inches (mm) N/A .20 (5.2) Request Quote/Sample
N/A .375 (9.5) inches (mm) N/A .25 (6.4) Request Quote/Sample
N/A .500 (12.7) inches (mm) N/A .25 (6.4) Request Quote/Sample
N/A .625 (15.9) inches (mm) N/A .25 (6.4) Request Quote/Sample
N/A .750 (19) inches (mm) N/A .25 (6.4) Request Quote/Sample
N/A .875 (22.2) inches (mm) N/A .25 (6.4) Request Quote/Sample
N/A 1.00 (25.4) inches (mm) N/A .25 (6.4) Request Quote/Sample
