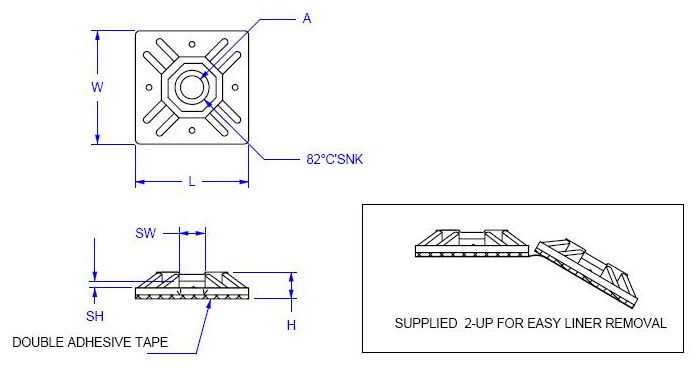

4 Way Cable Tie Mounting Base
Adhesive backed; supplied two mounts per strip
Adhesive: Rubber Based (Acrylic Available)
Screw Mount: (-758) #4 Flat Head (-1008) #6 Flat Head
Packaging: 500/bag
Material: Nylon 66 UL94V-2
Color: Natural or UV Black
UL File No: E70062
ASTM: D 4066
RoHS Compliant
Temp Range: -40 to 185F (-40 to 85C)

1 - 4 of 4 | Results Per Page | View | Unit of Measure

1

Request Information Compare Items

Item #	Color	Dim. - W	Dim. - L	Dim. - H	S - Slot Width	S - Slot Height	Cable Tie Used	Request Quote/Sample

02-50-758-N	N/A Natural	N/A .750 ± .015 (19.0 ± .381) inches (mm)	N/A .750 ± .015 (19.0 ± .381) inches (mm)	N/A .23 ± .010 (5.9) inches (mm)	N/A .20 ± .010 (5.0) inches (mm)	N/A .048 ± .010 (1.22) inches (mm)	N/A 18 - 40 (8.2 - 18.2) lbs (Kg)	Request Quote/Sample
02-50-1008-N	N/A Natural	N/A 1.00 ± .015 (25.4 ± .381) inches (mm)	N/A 1.00 ± .015 (25.4 ± .381) inches (mm)	N/A .24 ± .010 (6.1) inches (mm)	N/A .20 (5.0) inches (mm)	N/A .055 (1.4) inches (mm)	N/A 18 - 50 (8.2 - 22.7) lbs (Kg)	Request Quote/Sample
02-50-758-UVB	N/A Black	N/A .750 ± .015 (19.0 ± .381) inches (mm)	N/A .750 ± .015 (19.0 ± .381) inches (mm)	N/A .23 (5.9) inches (mm)	N/A .20 (5.0) inches (mm)	N/A .048(1.22) inches (mm)	N/A 18 - 40 (8.2 - 18.2) lbs (Kg)	Request Quote/Sample
02-50-1008-UVB	N/A Black	N/A 1.00 ± .015 (25.4 ± .381) inches (mm)	N/A 1.00 ± .015 (25.4 ± .381) inches (mm)	N/A .24 (6.1) inches (mm)	N/A .20 (5.0) inches (mm)	N/A .055 (1.4) inches (mm)	N/A 18 - 50 (8.2 - 22.7) lbs (Kg)	Request Quote/Sample
