02-12-10

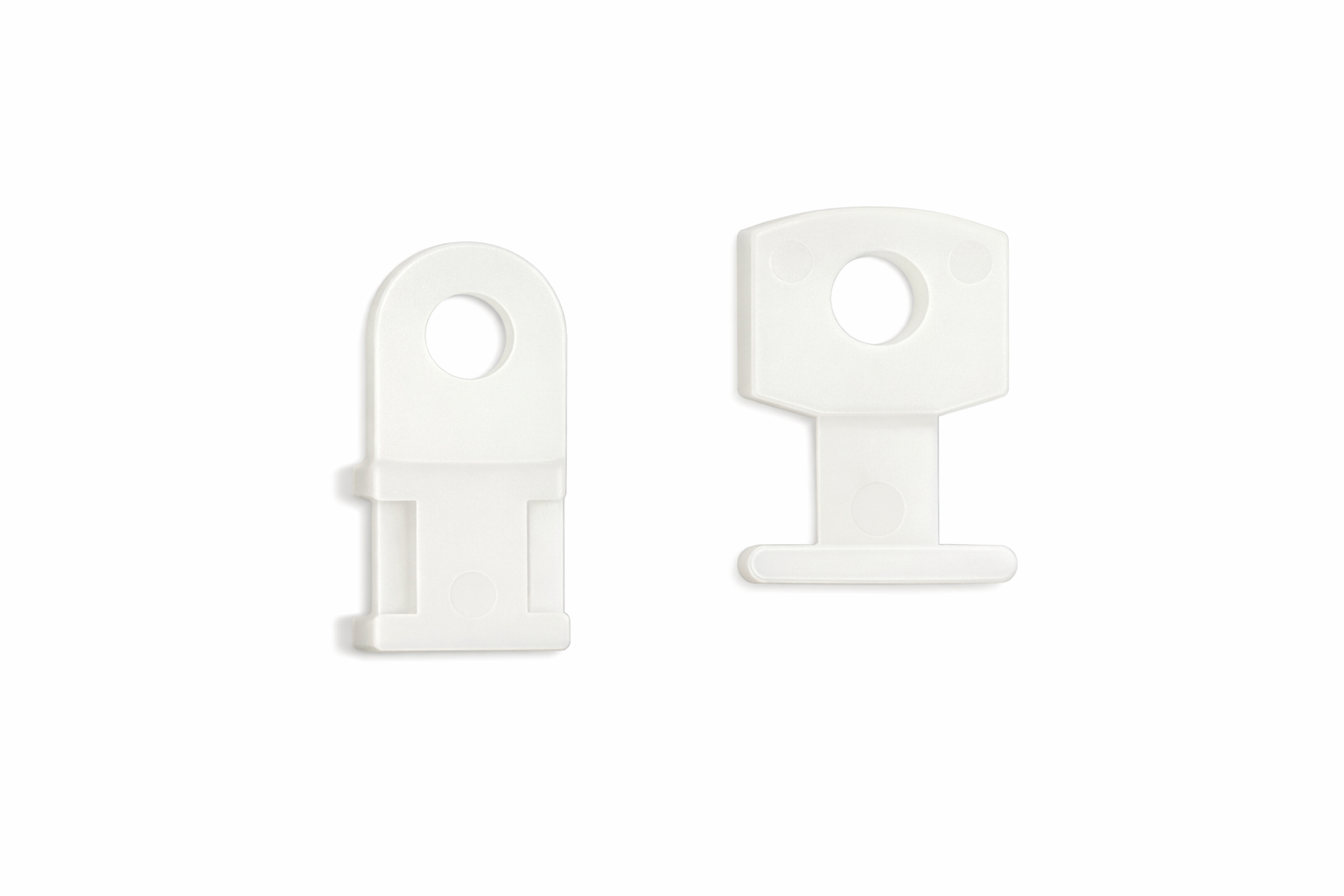

02-12-10/Asset/02-12-Screw-Mount-Cable-Tie-Holders.png
|
Dim. - A
N/A .17 (4.3) inches (mm)
|
Dim. - L
N/A .75 (19.1) inches (mm)
|
Dim. - H
N/A .125 (3.18) inches (mm)
|
Dim. - W
N/A .50 (12.7) inches (mm)
|
Dim B
N/A .33 (8.4) inches (mm)
|
Mounting Screw # (Binding or Pan Head)
N/A #8 Flat Head (M4)
|
Cable Tie Used
N/A 30-50 lbs
|

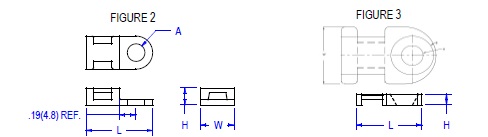

Figure#
N/A 3
|
Request Quote/Sample
|
|
02-12-20
02-12-20/Asset/02-12-Screw-Mount-Cable-Tie-Holders.png
|
Dim. - A
N/A .132 (3.35) inches (mm)
|
Dim. - L
N/A .75 (19.0) inches (mm)
|
Dim. - H
N/A .19 (4.8) inches (mm)
|
Dim. - W
N/A .37 (9.4) inches (mm)
|
Dim B
N/A .19 (4.8) inches (mm)
|
Mounting Screw # (Binding or Pan Head)
N/A #4 (M3)
|
Cable Tie Used
N/A 18-40 lbs
|
Figure#
N/A 2
|
Request Quote/Sample
|
|
02-12-40
02-12-40/Asset/02-12-Screw-Mount-Cable-Tie-Holders.png
|
Dim. - A
N/A .203 (5.16) inches (mm)
|
Dim. - L
N/A .75 (19.0) inches (mm)
|
Dim. - H
N/A .19 (4.8) inches (mm)
|
Dim. - W
N/A .37 (9.4) inches (mm)
|
Dim B
N/A .19 (4.8) inches (mm)
|
Mounting Screw # (Binding or Pan Head)
N/A #10 (M5)
|
Cable Tie Used
N/A 18-40 lbs
|
Figure#
N/A 2
|
Request Quote/Sample
|
|
02-12-30
02-12-30/Asset/02-12-Screw-Mount-Cable-Tie-Holders.png
|
Dim. - A
N/A .17 (4.3) inches (mm)
|
Dim. - L
N/A .75 (19.0) inches (mm)
|
Dim. - H
N/A .19 (4.8) inches (mm)
|
Dim. - W
N/A .37 (9.4) inches (mm)
|
Dim B
N/A .19 (4.8) inches (mm)
|
Mounting Screw # (Binding or Pan Head)
N/A #8 (M4)
|
Cable Tie Used
N/A 18-40 lbs
|
Figure#
N/A 2
|
Request Quote/Sample
|
