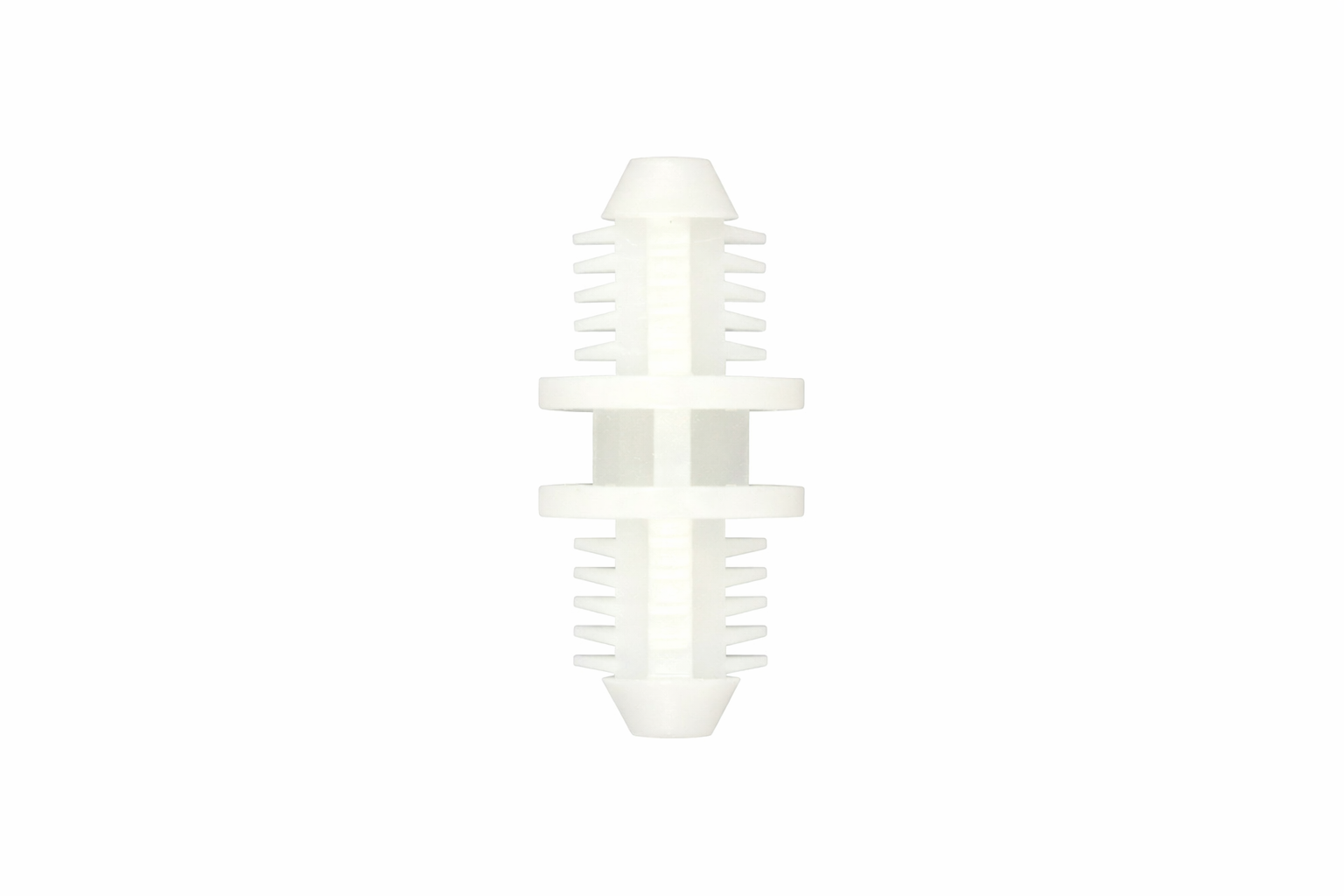

• 82-M Series: .312 MTG Hole Both Ends(.250 Min Chassis)

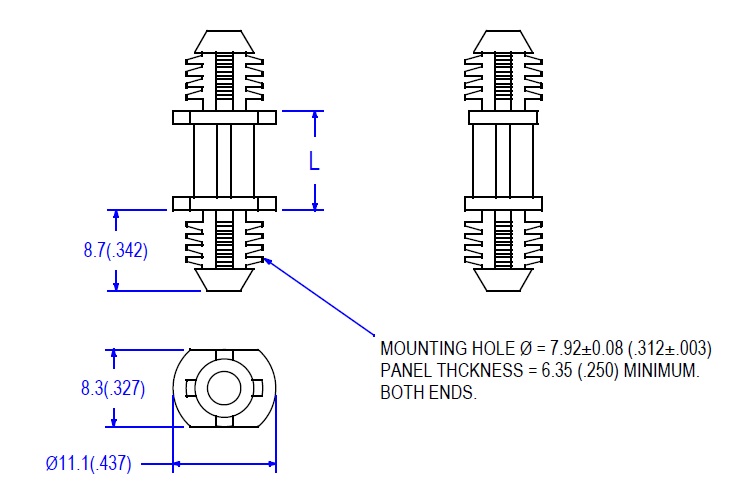

  • 01-82M SKETCH
  • Blind Hole Circuit Board Support (Blind Hole/X-Mass Tree Style)
  • PCB Support for .312 Mtg Hole x .250 Minimum Thick Chassis
  • Packaging: 1000/bag
  • Material: Nylon 66 UL94V-2 (UL94V-0 available - add "X" to part#)
  • UL File No: E41938
  • ASTM: D 4066, PA111
  • RoHS Compliant
  • Temp Range: -40 to 185F (-40 to 85C)
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dim. - L +/- .015

Request Quote/Sample
N/A .118 (3) inches (mm) Request Quote/Sample
N/A .157 (4) inches (mm) Request Quote/Sample
N/A .236 (6) inches (mm) Request Quote/Sample
N/A .314 (8) inches (mm) Request Quote/Sample
N/A .393 (10) inches (mm) Request Quote/Sample
N/A .472 (12) inches (mm) Request Quote/Sample
N/A .551 (14) inches (mm) Request Quote/Sample
N/A .629 (16) inches (mm) Request Quote/Sample
N/A .708 (18) inches (mm) Request Quote/Sample
N/A .787 (20) inches (mm) Request Quote/Sample
